Home
>>
Toyota Truck
>>
2008
>>
4 Runner 2WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Restraints and Safety Systems
>>
Air Bag Control Module
>>
Service and Repair
>>
Components
Components

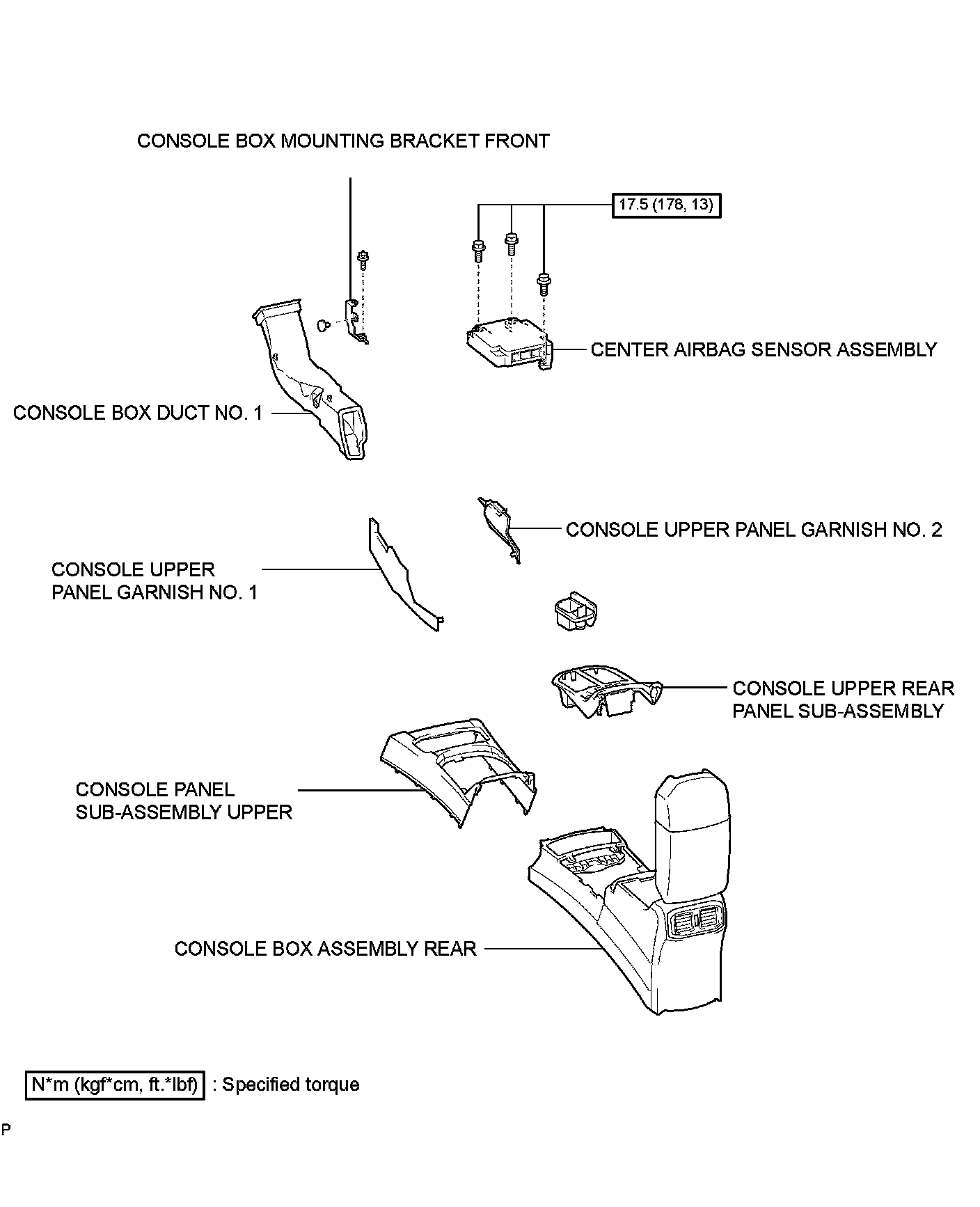

SUPPLEMENTAL RESTRAINT SYSTEM: CENTER AIRBAG SENSOR ASSEMBLY: COMPONENTS
