Air Fuel Ratio Sensor

1GR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSPECTION

1GR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSPECTION

1. INSPECT AIR FUEL RATIO SENSOR (for Bank 1 and Bank 2)

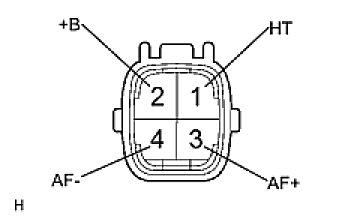

(a) Using an ohmmeter, measure the resistance between the terminals.

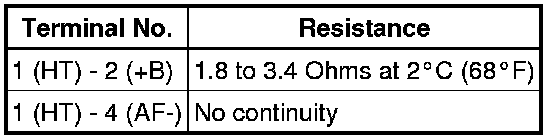

Resistance:





If the resistance is not as specified, replace the sensor.
