Multiple Junction Connector: Locations

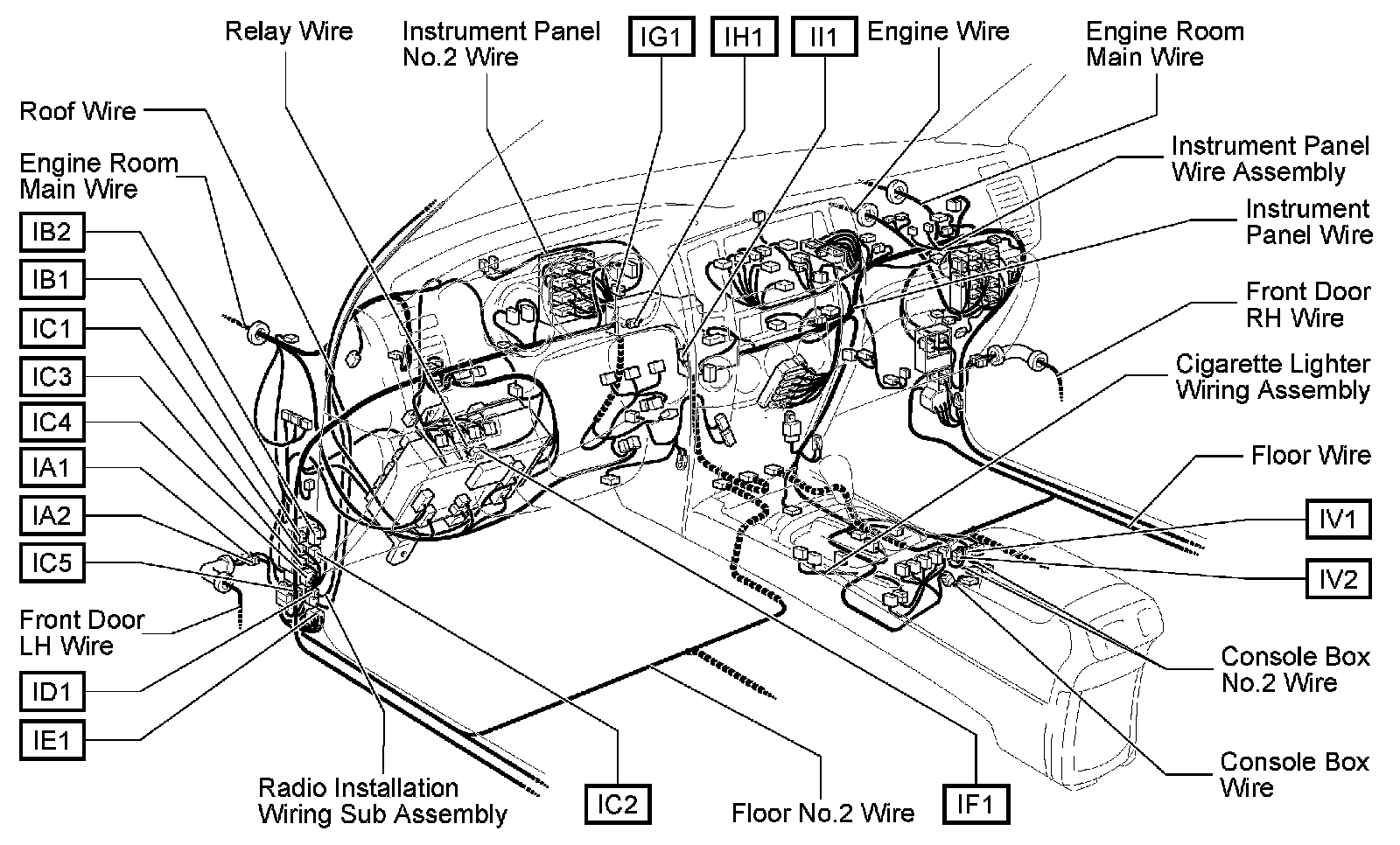

IA1-IV2:

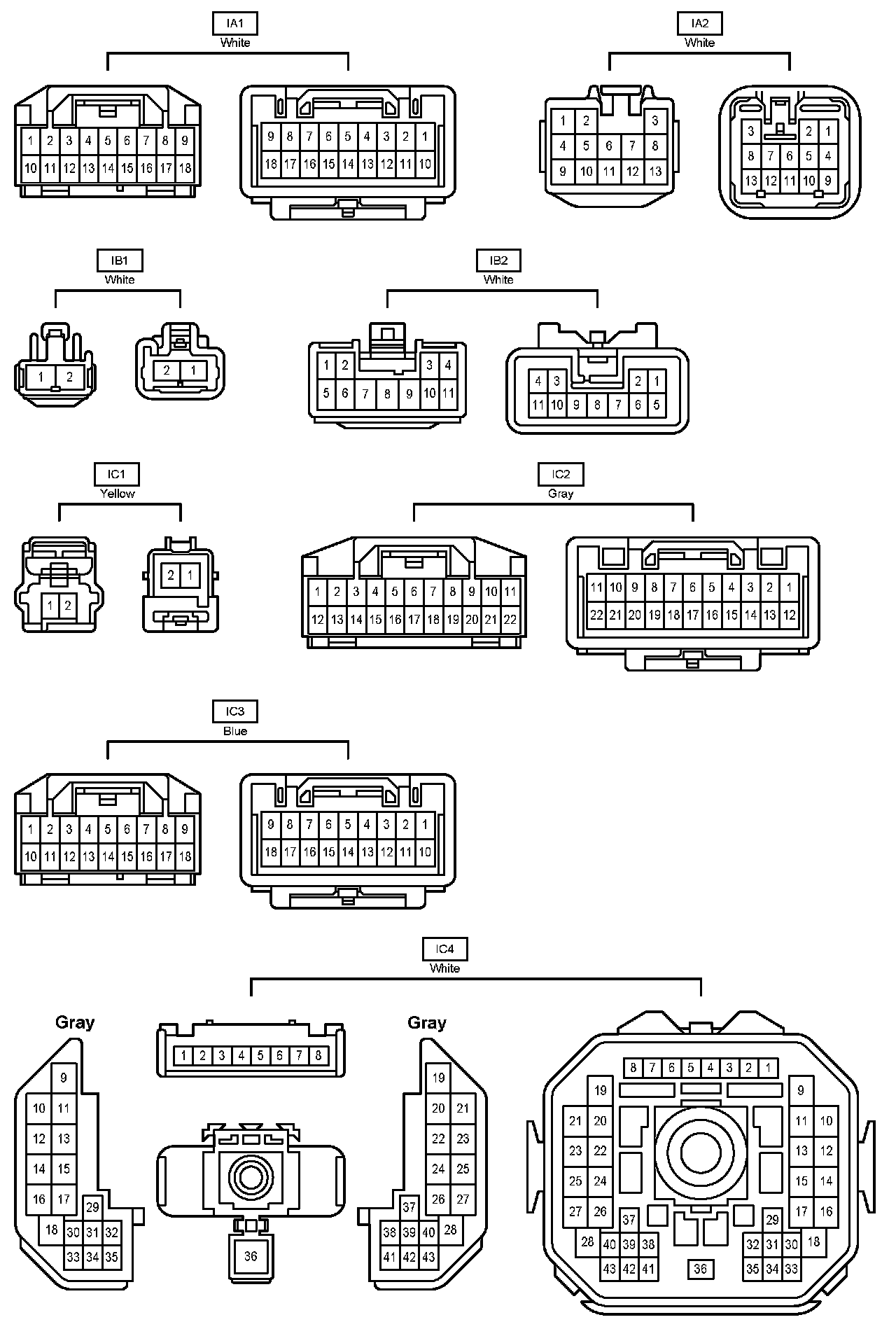

IA1-IC4:

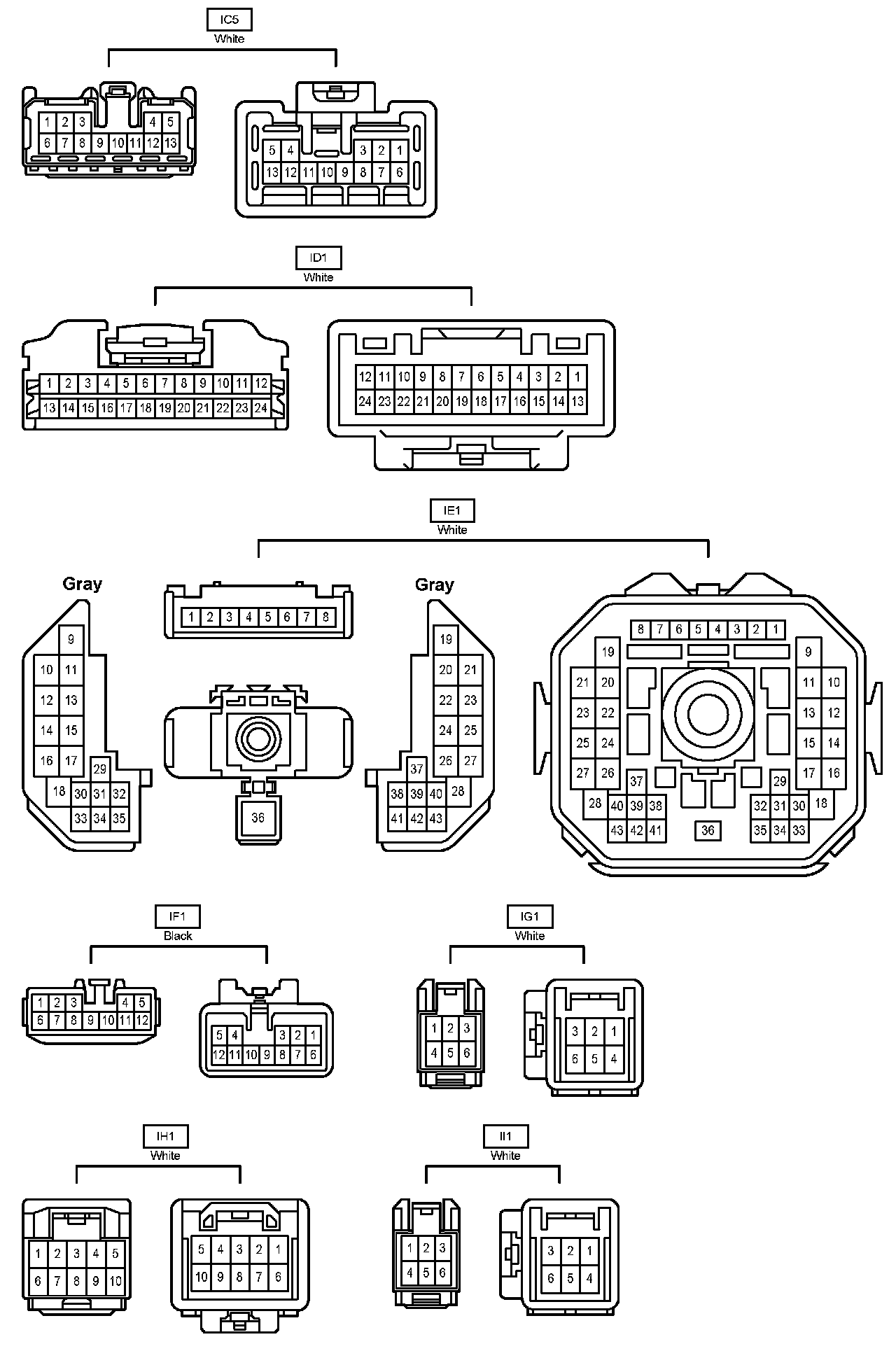

IC5-II1:

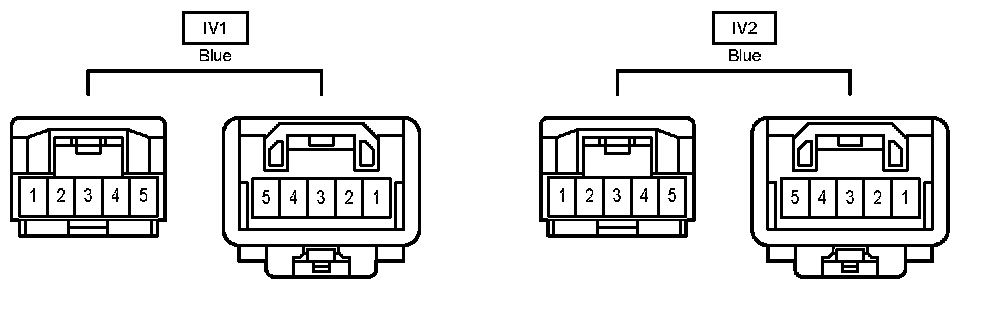

IV1-IV2:

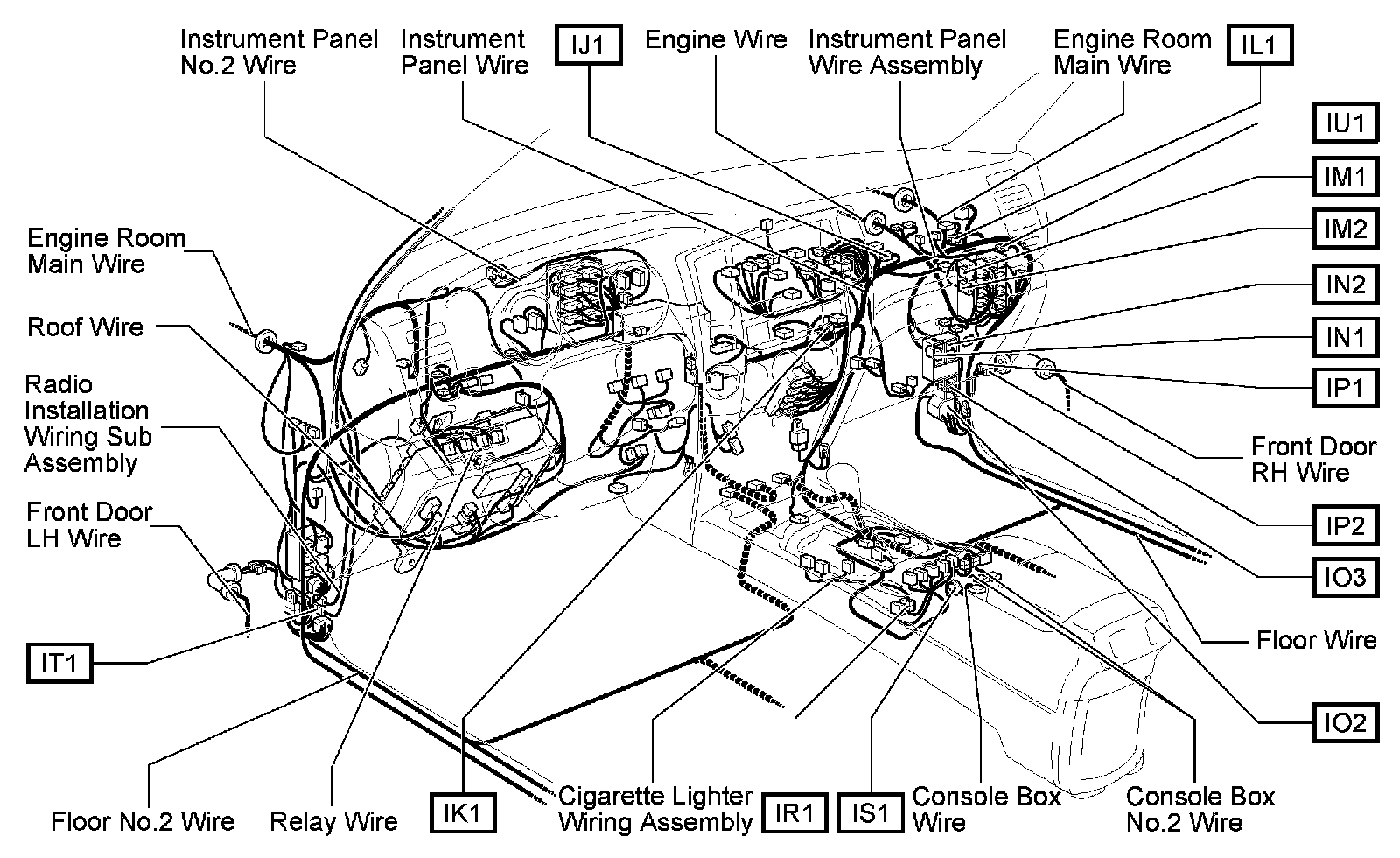

IJ1-IU1:

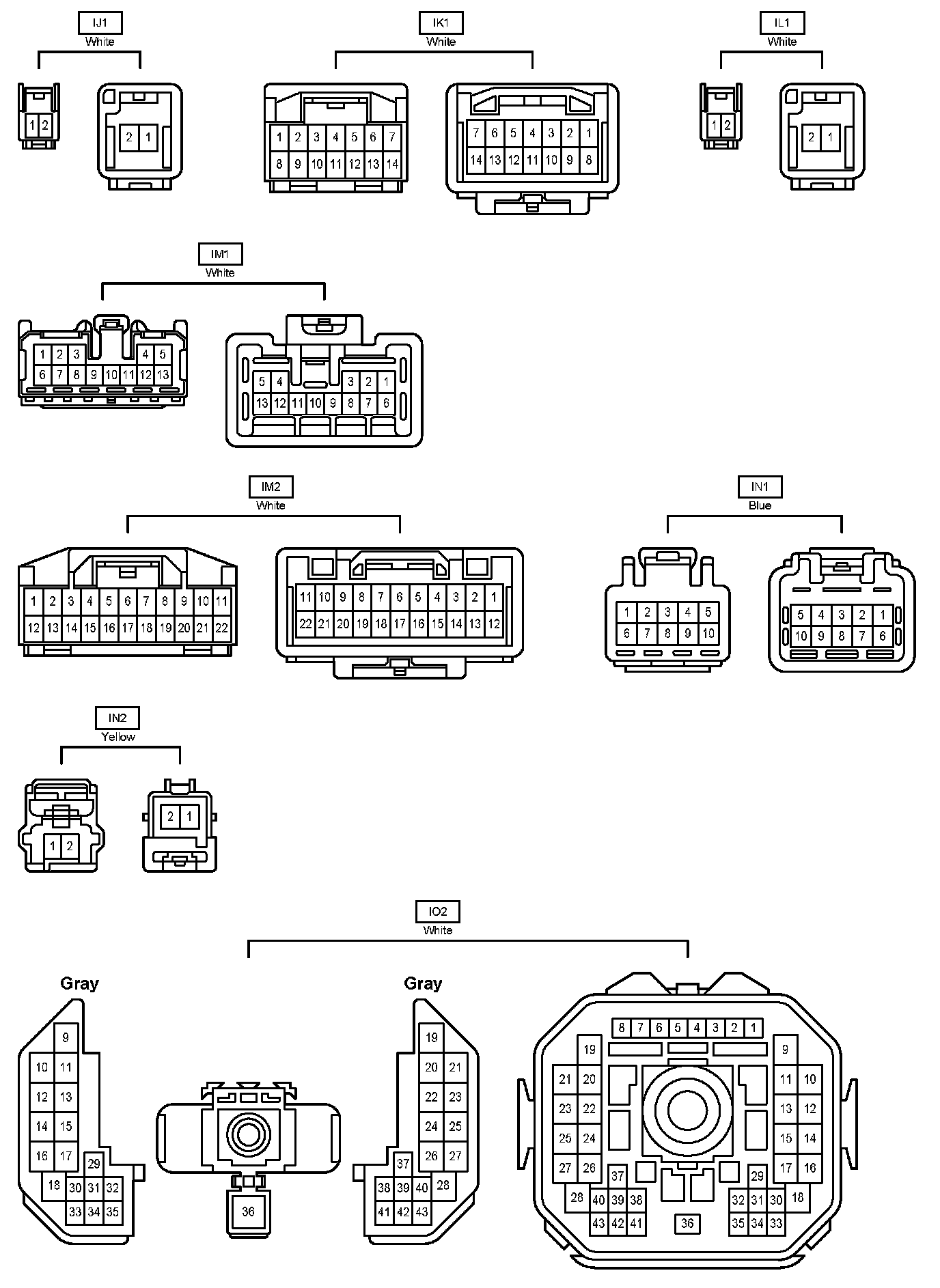

IJ1-IO2:

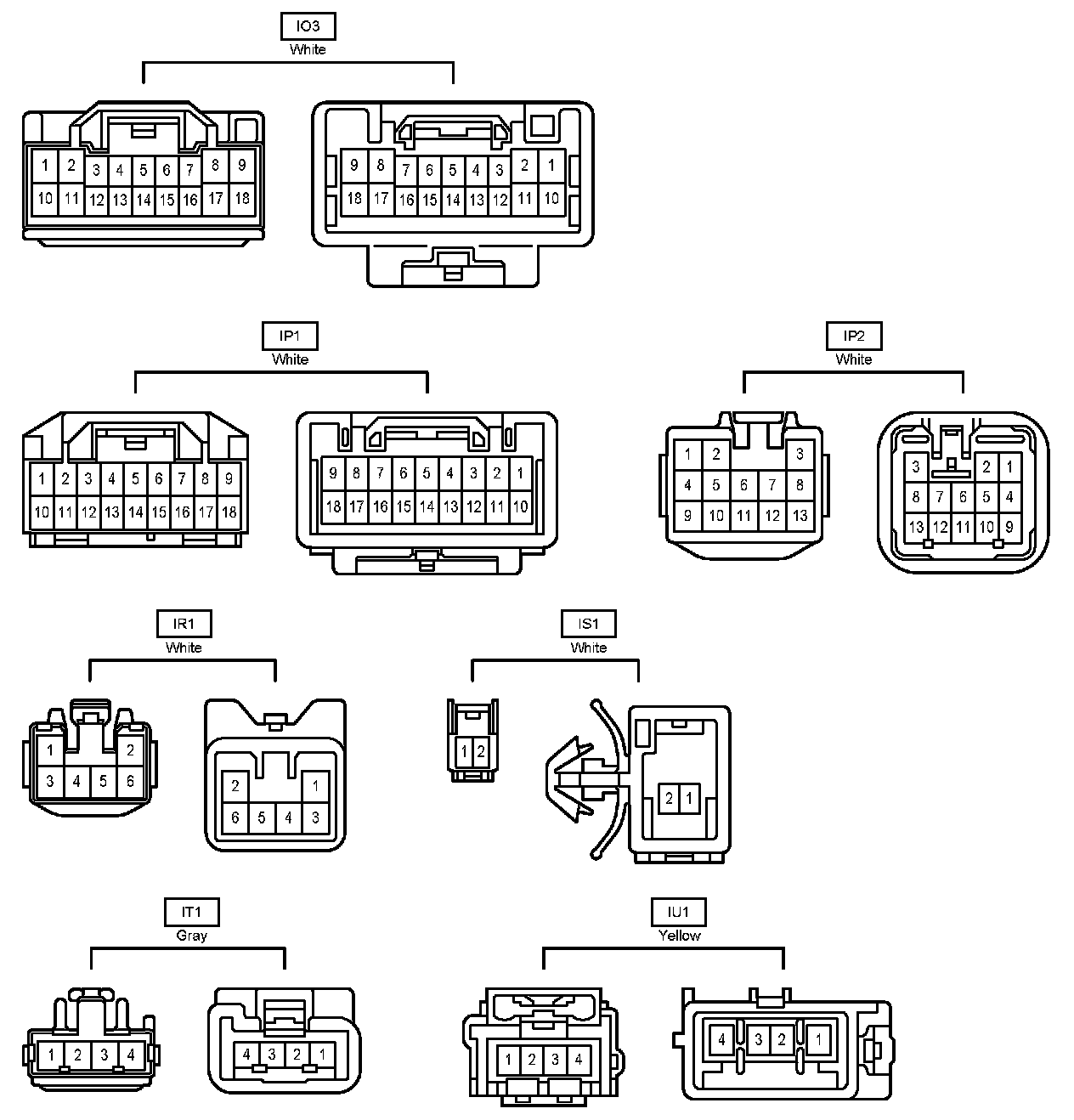

IO3-IU1:

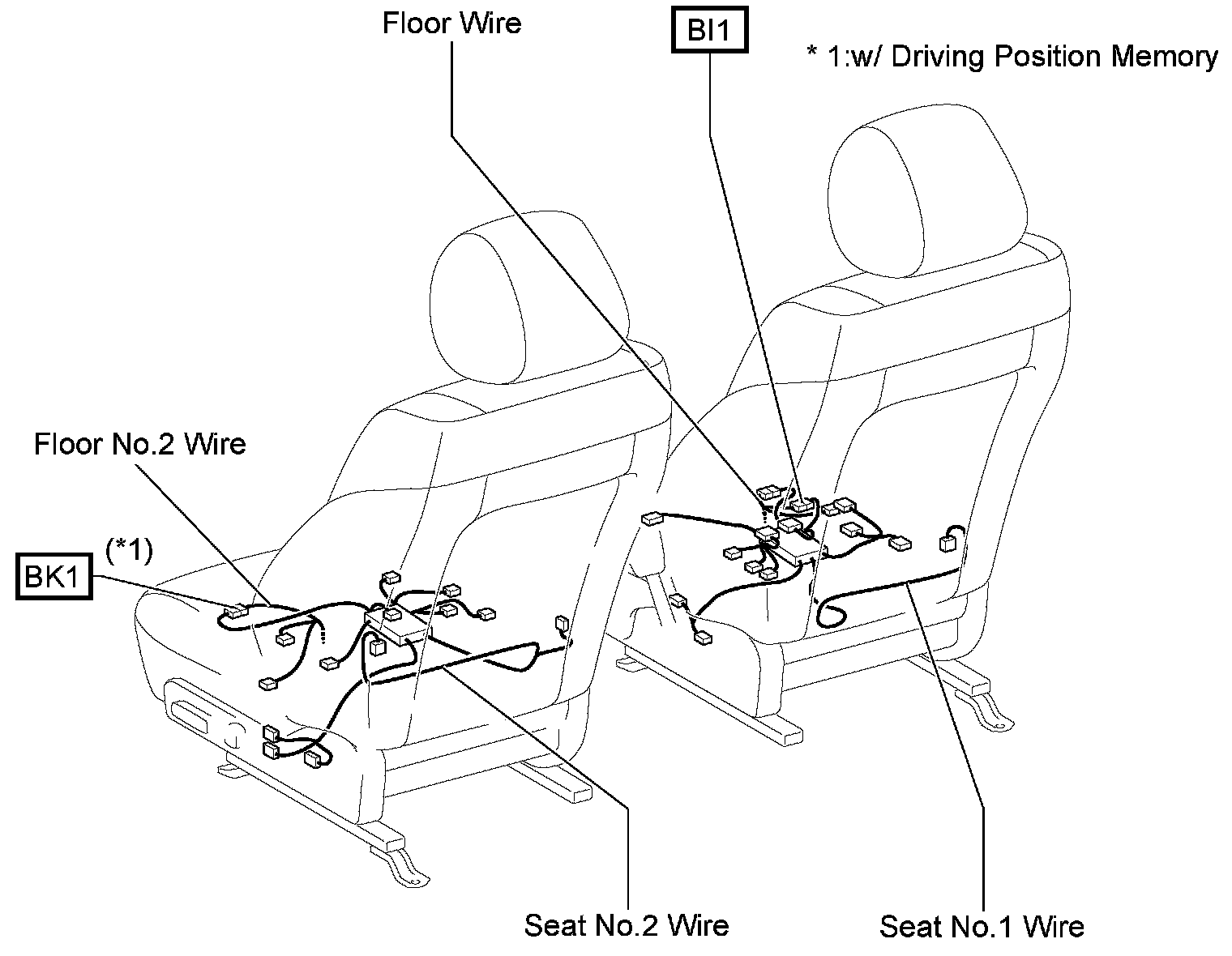

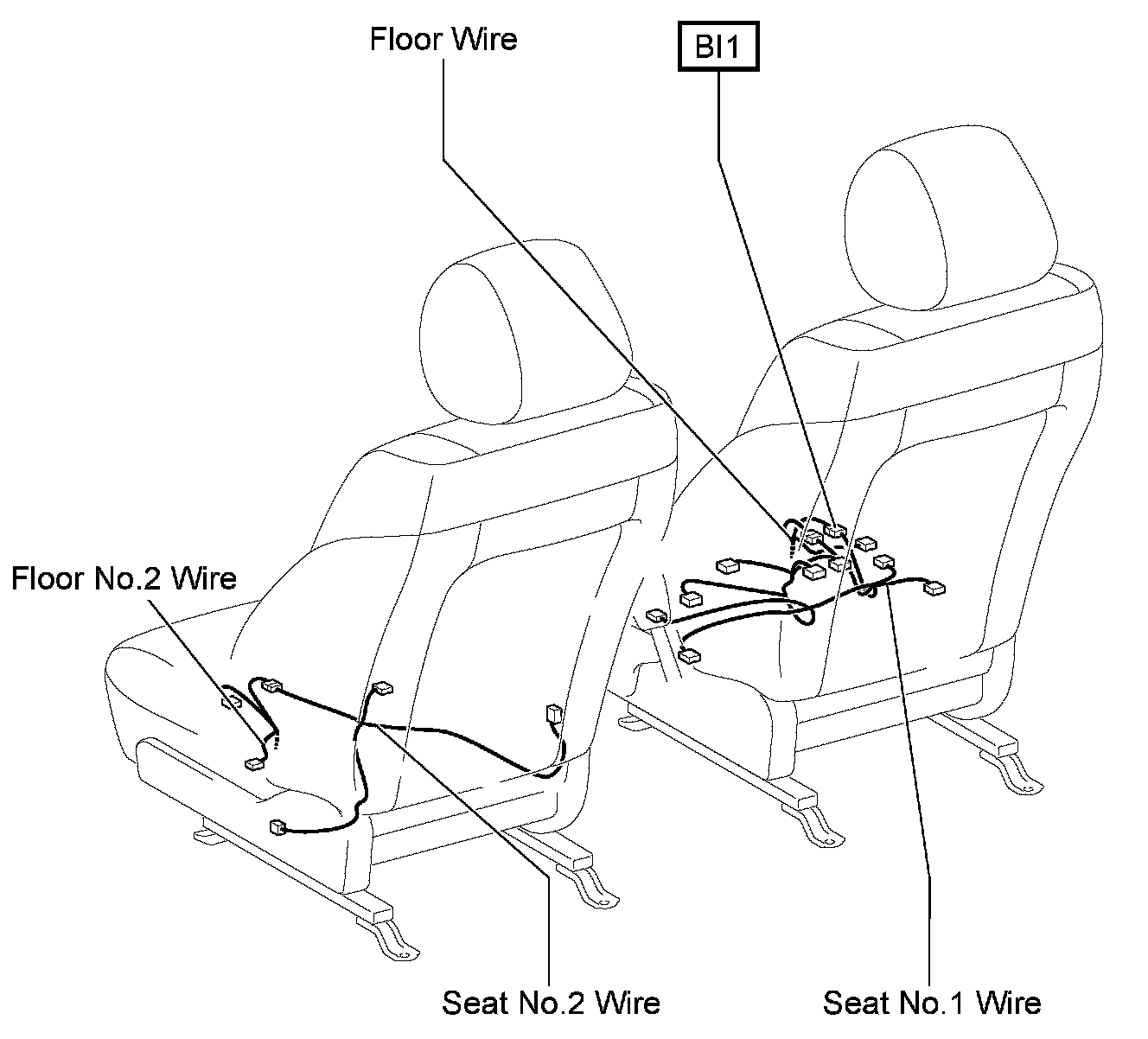

BI1:

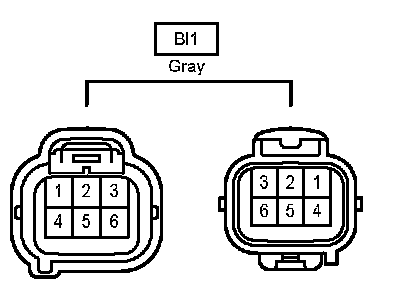

BI1:

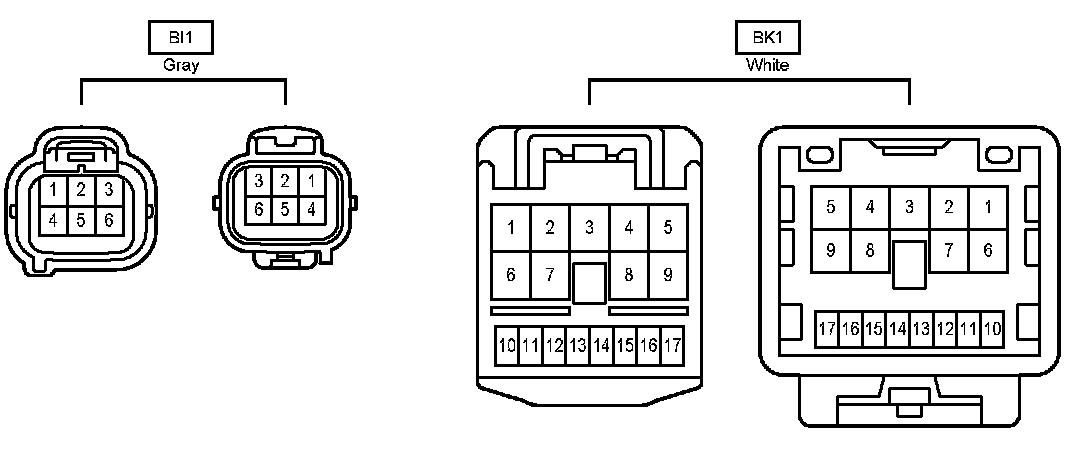

BI1-BK1:



BI1-BK1:
