Fuse: Application and ID

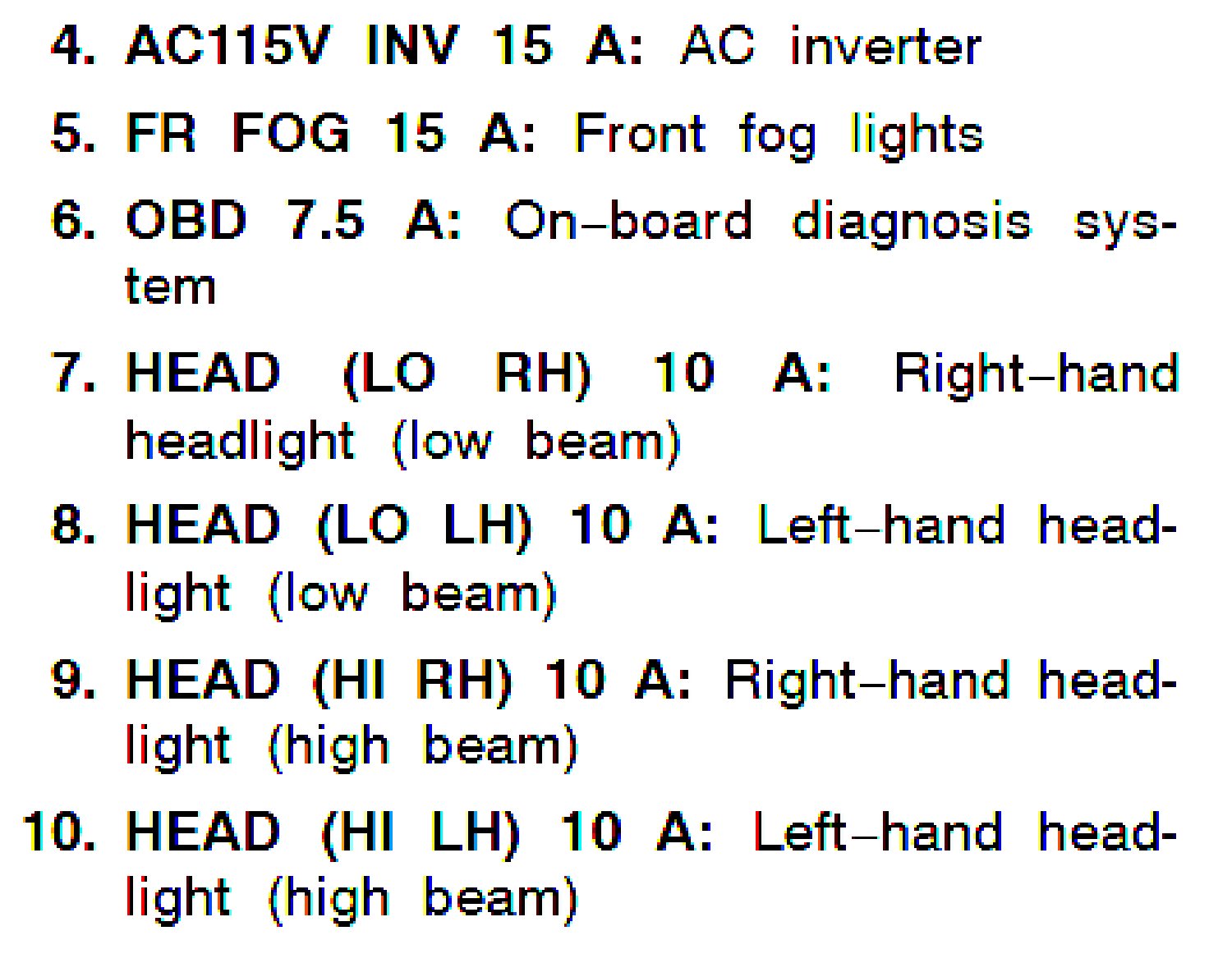

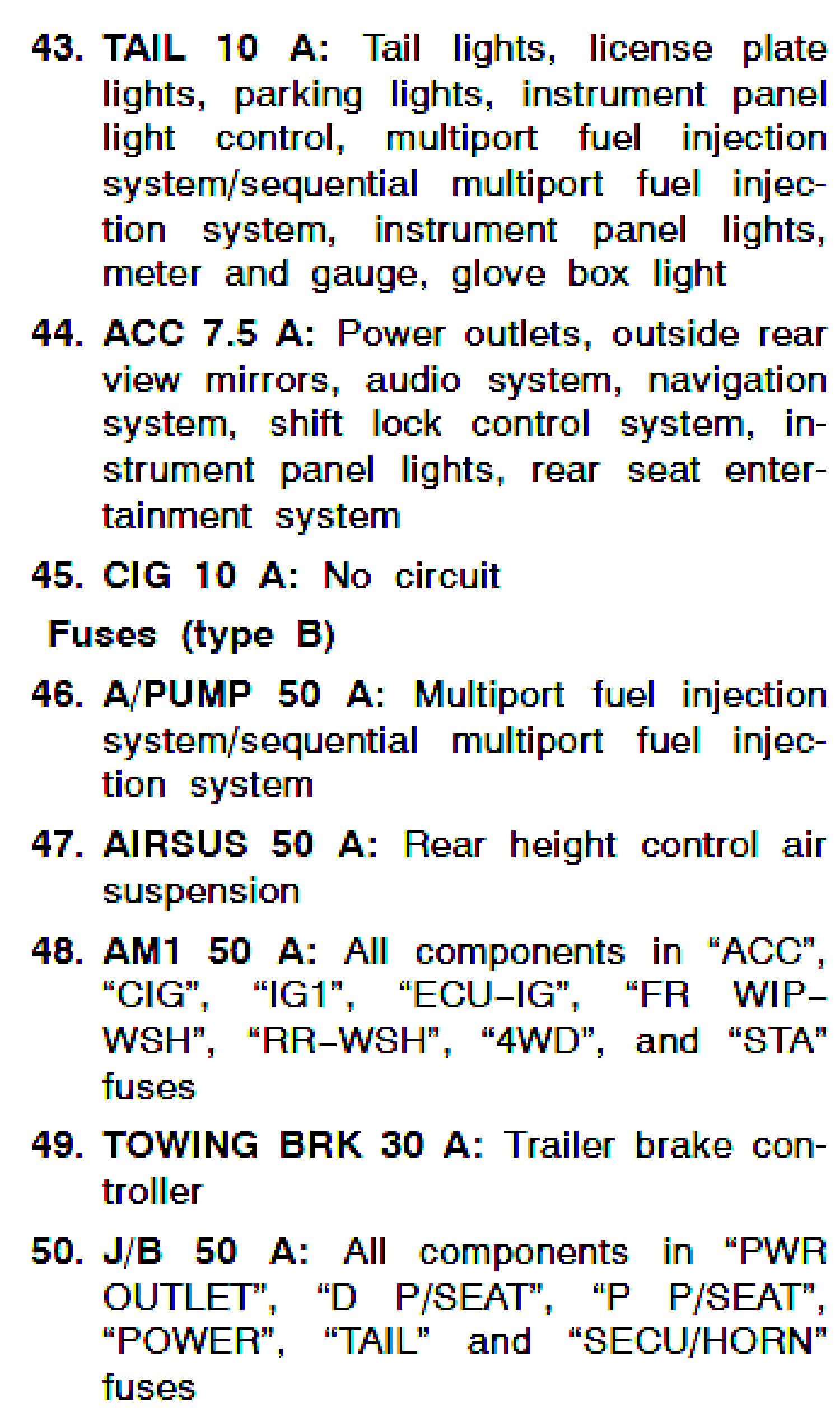

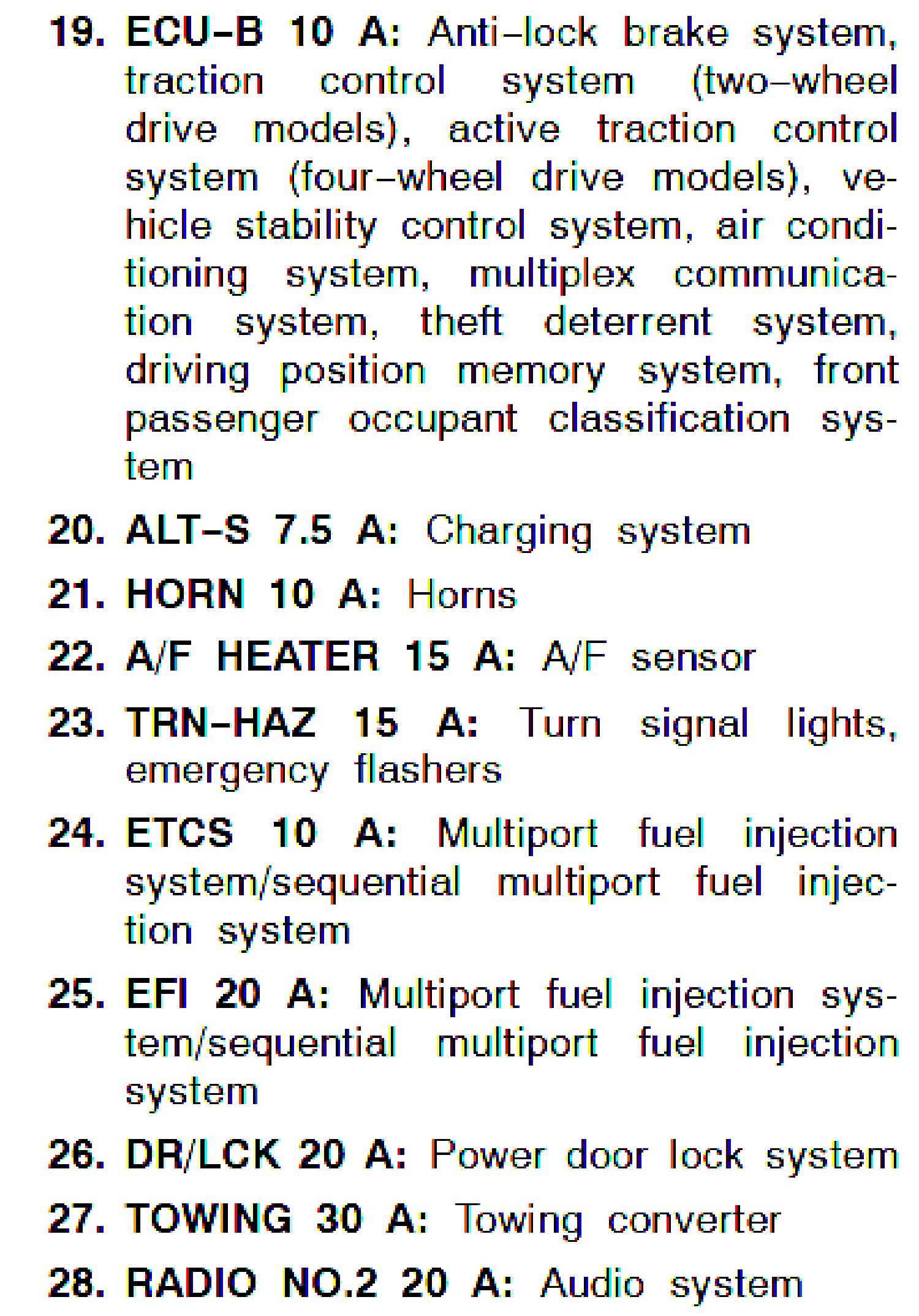

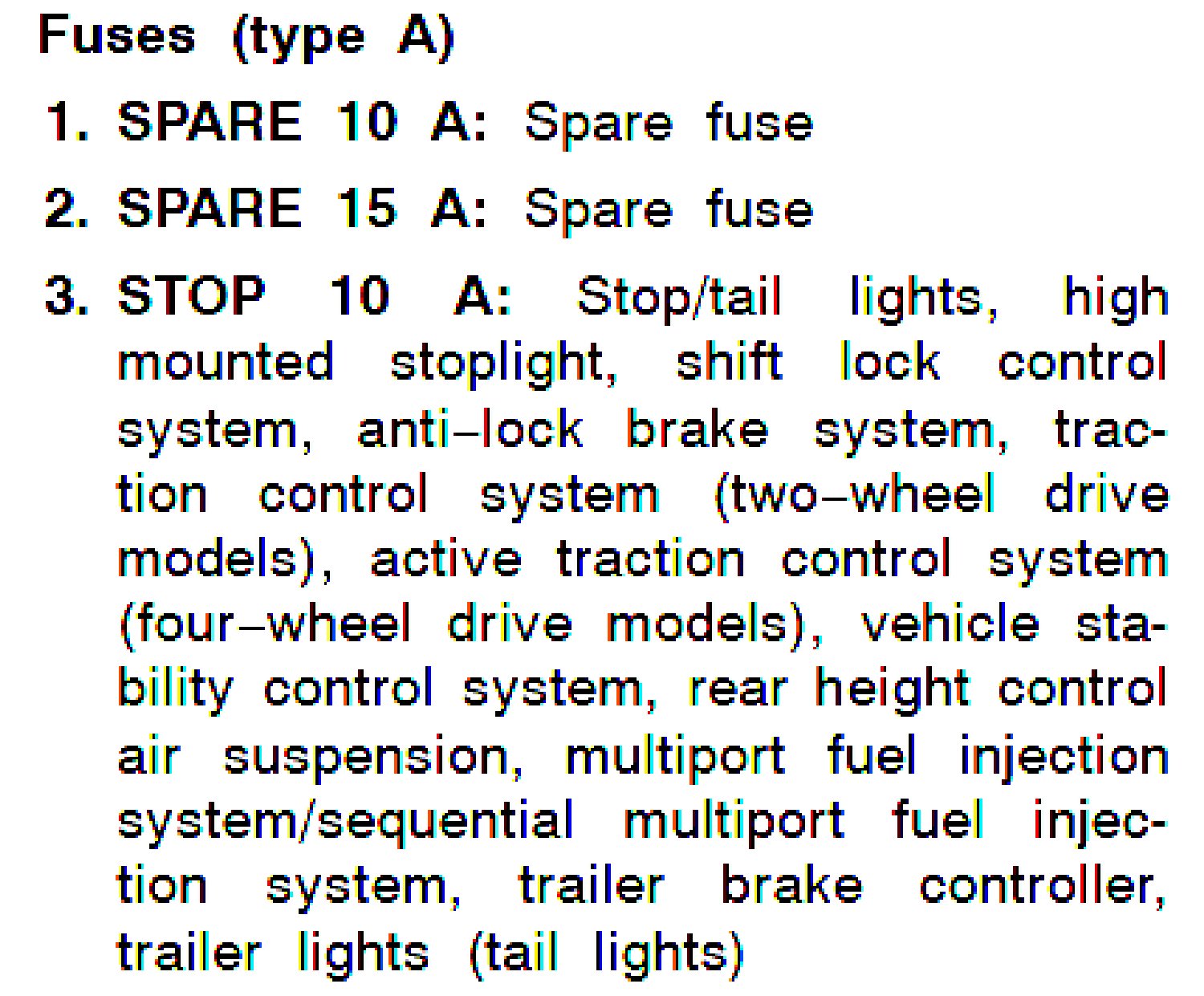

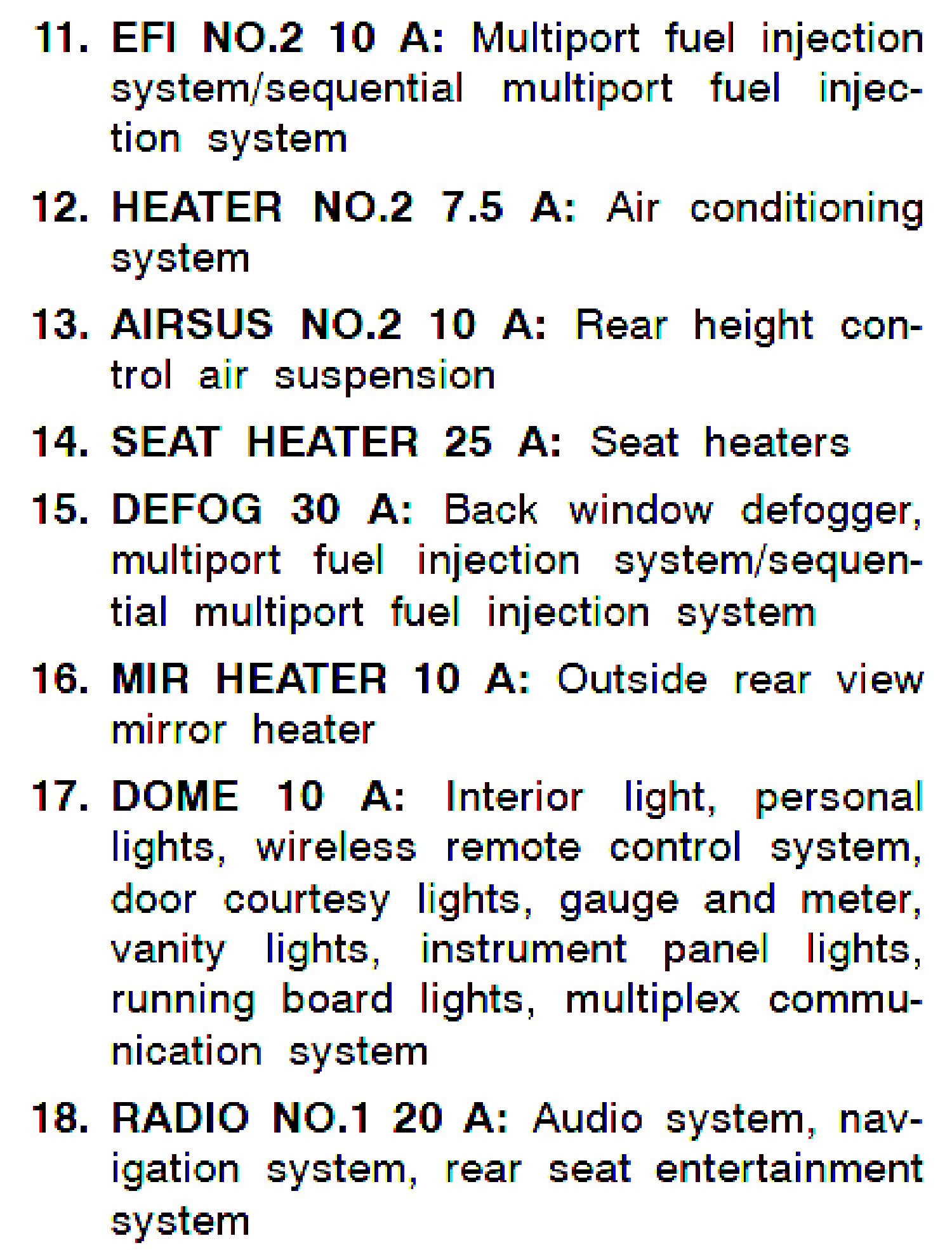

Fuse Layout and Amperage Ratings

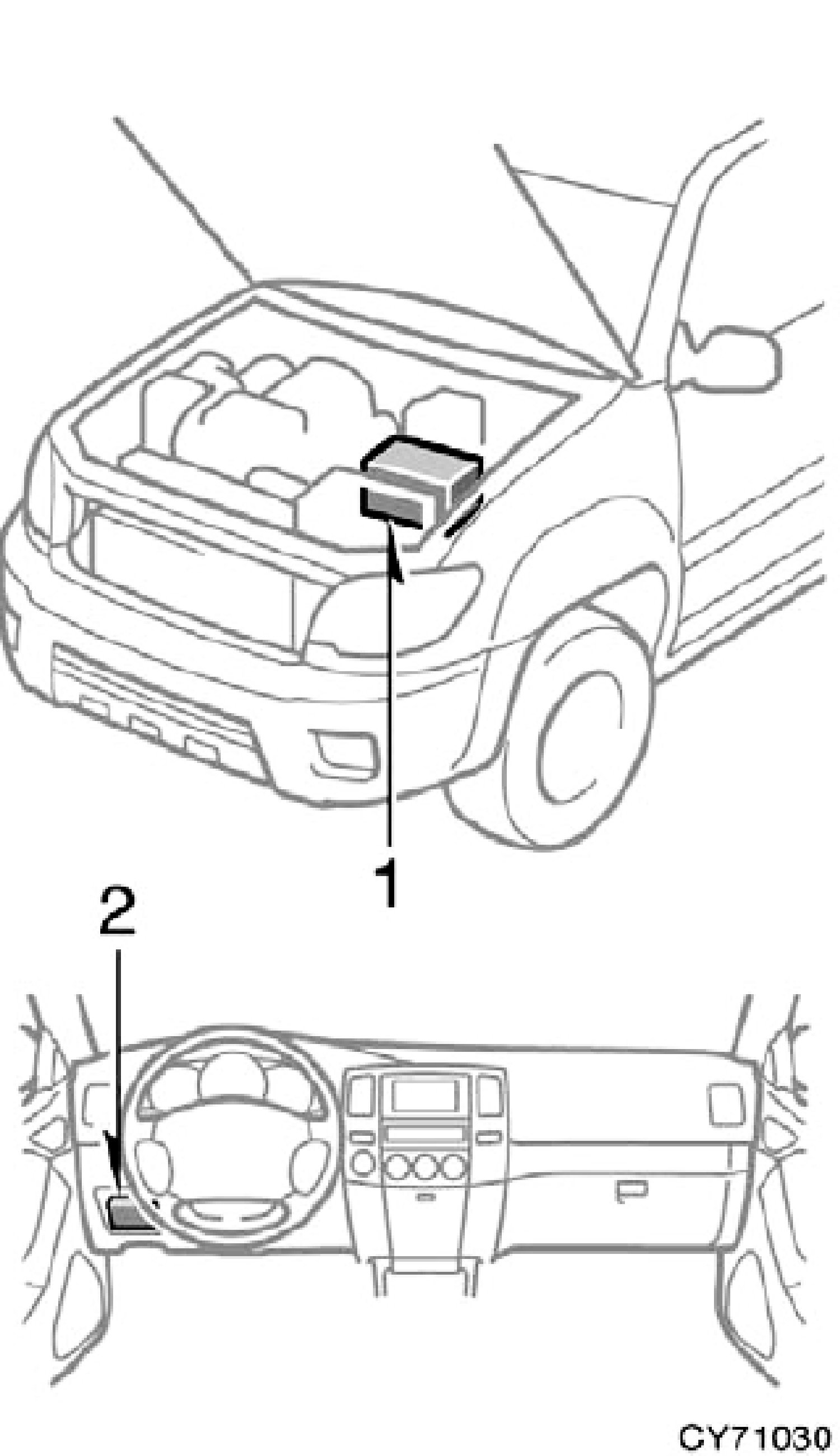

Fuse Block Locations:

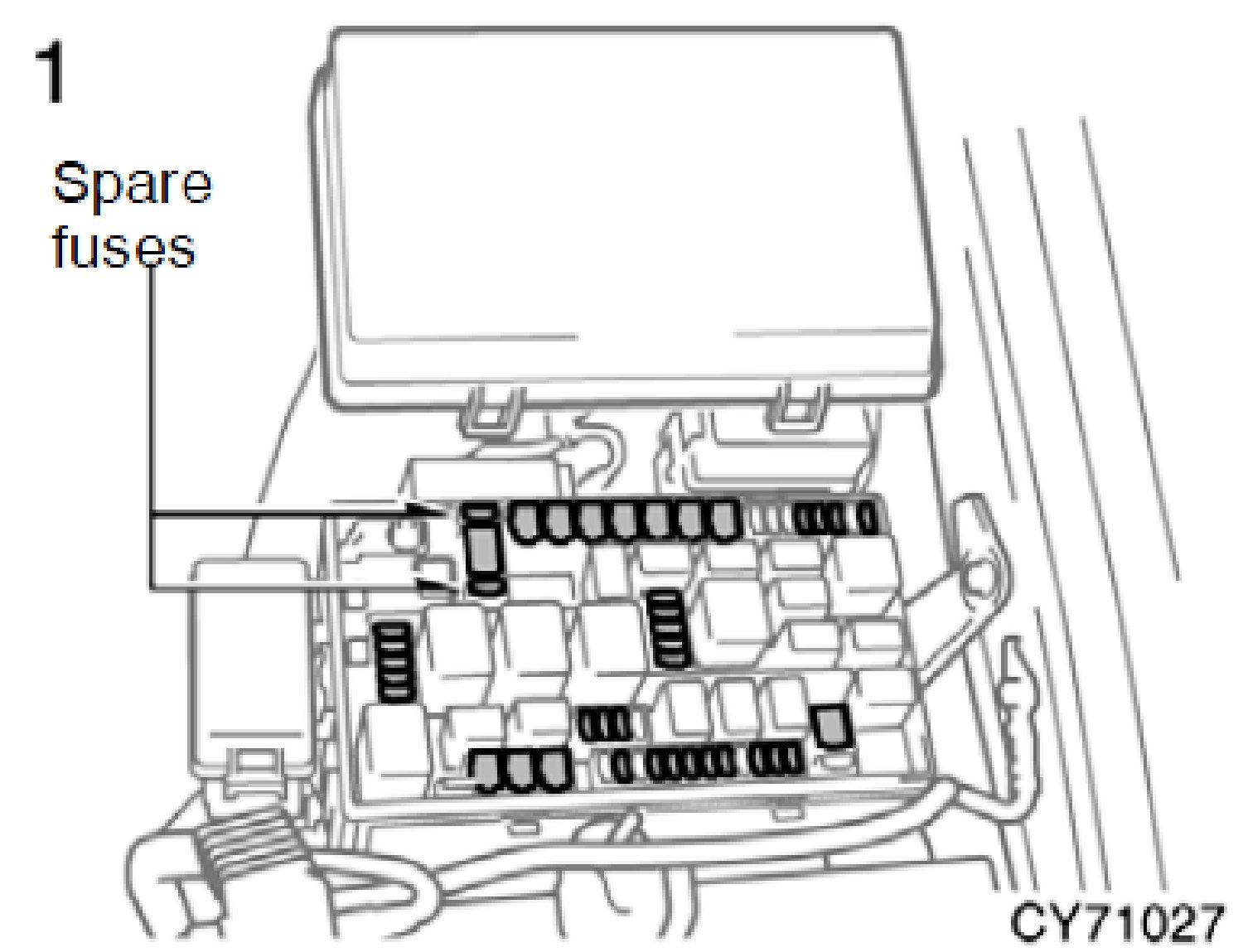

Engine Compartment:

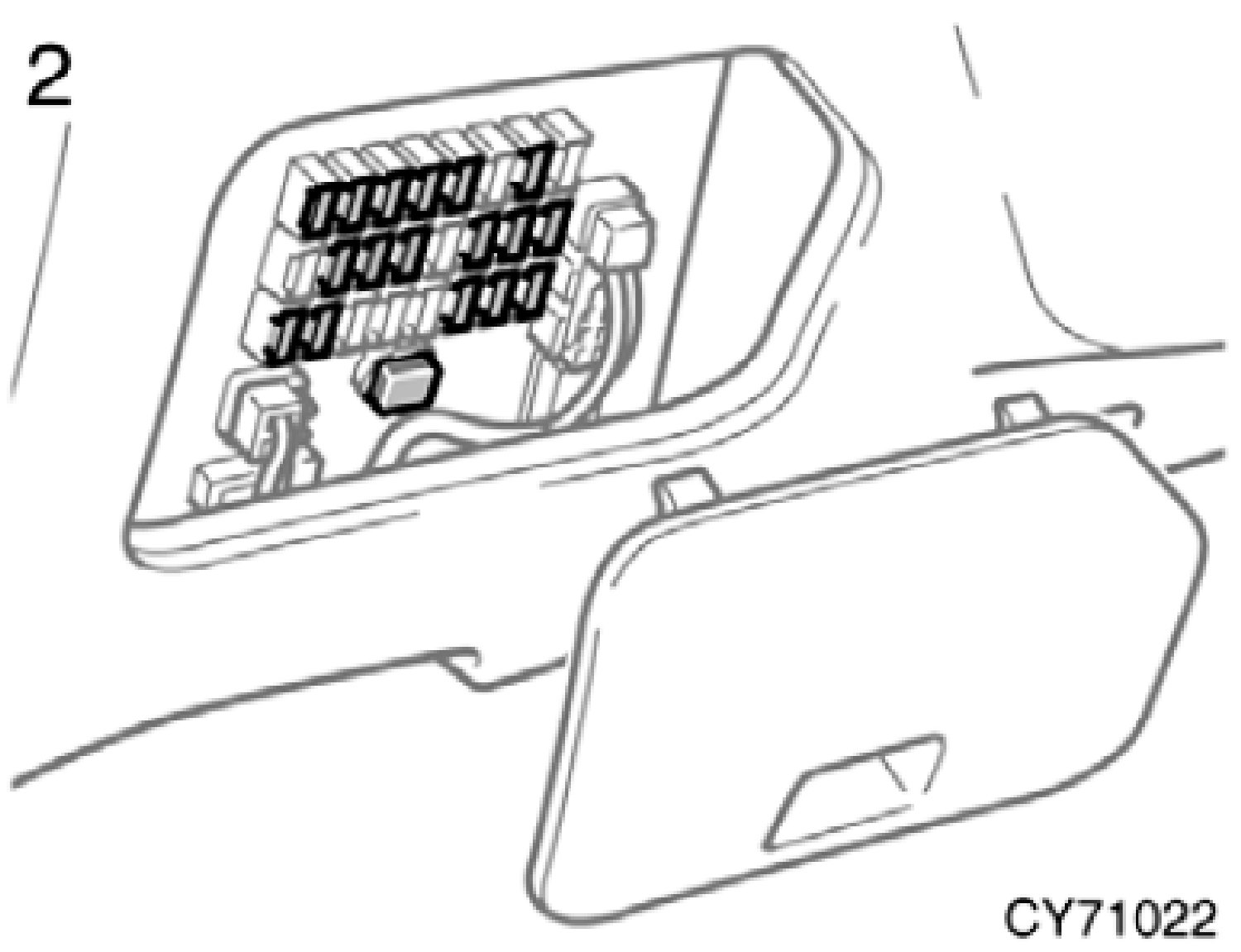

Left Side Instrument Panel:

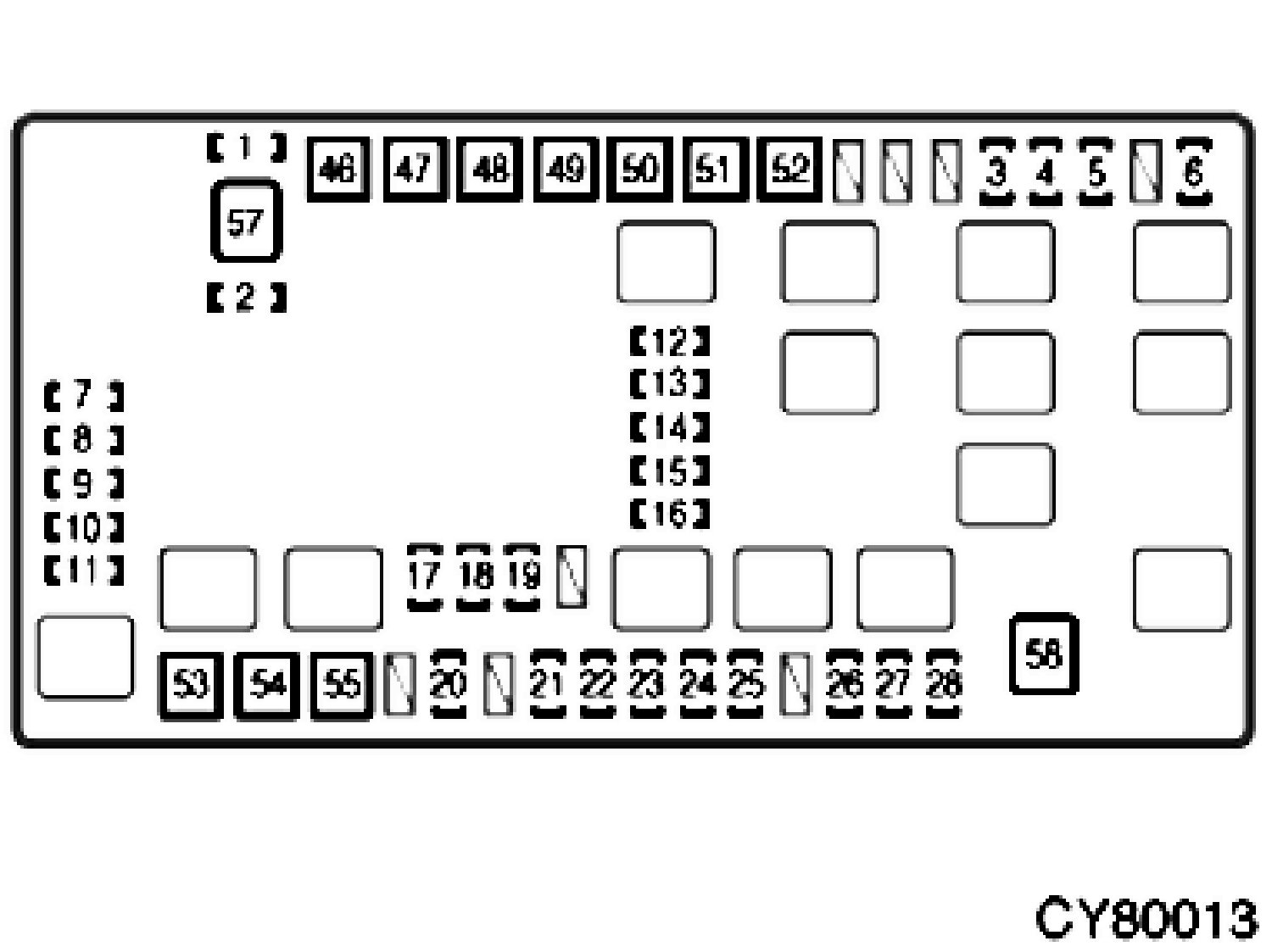

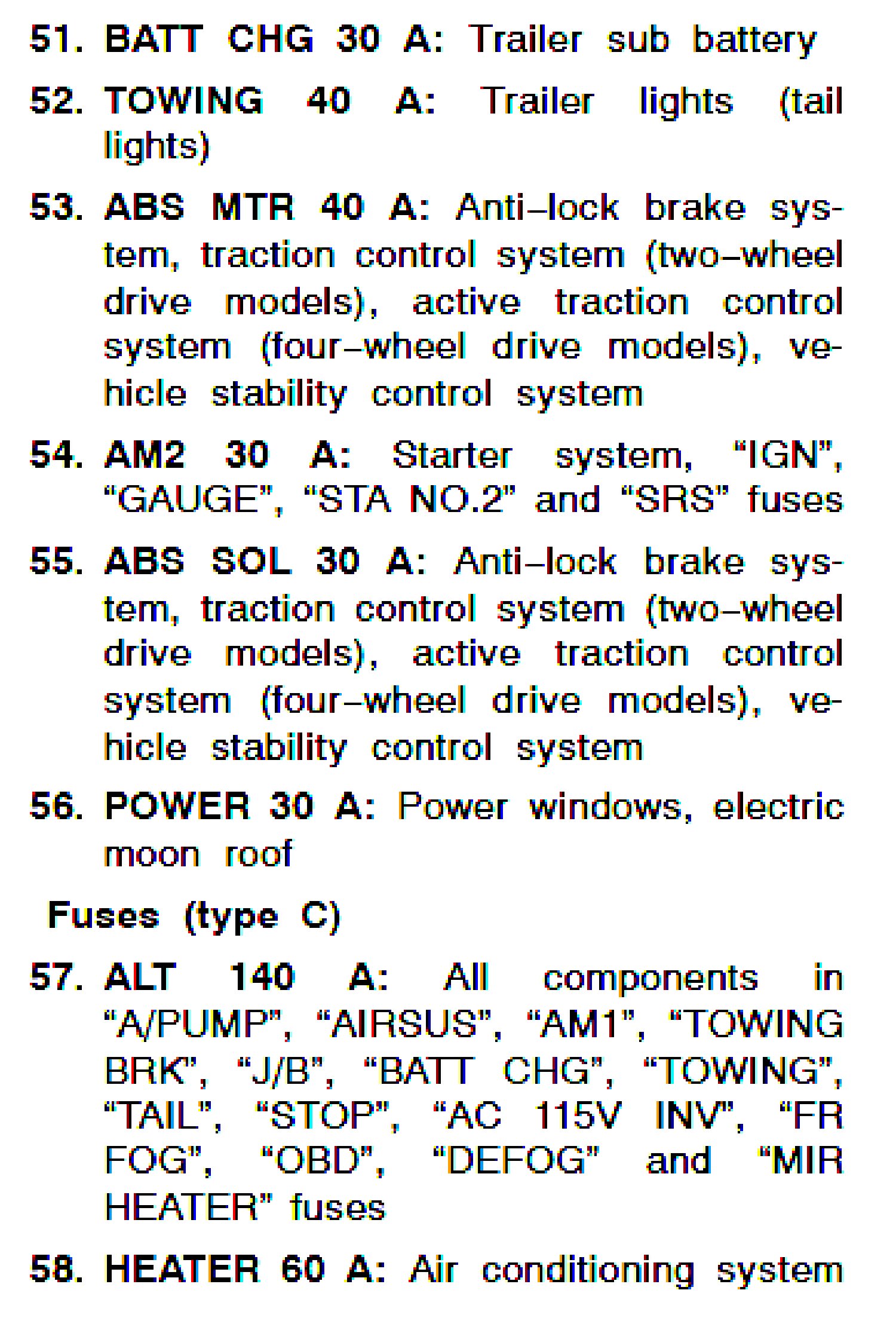

Fuse Locations - Engine Compartment:

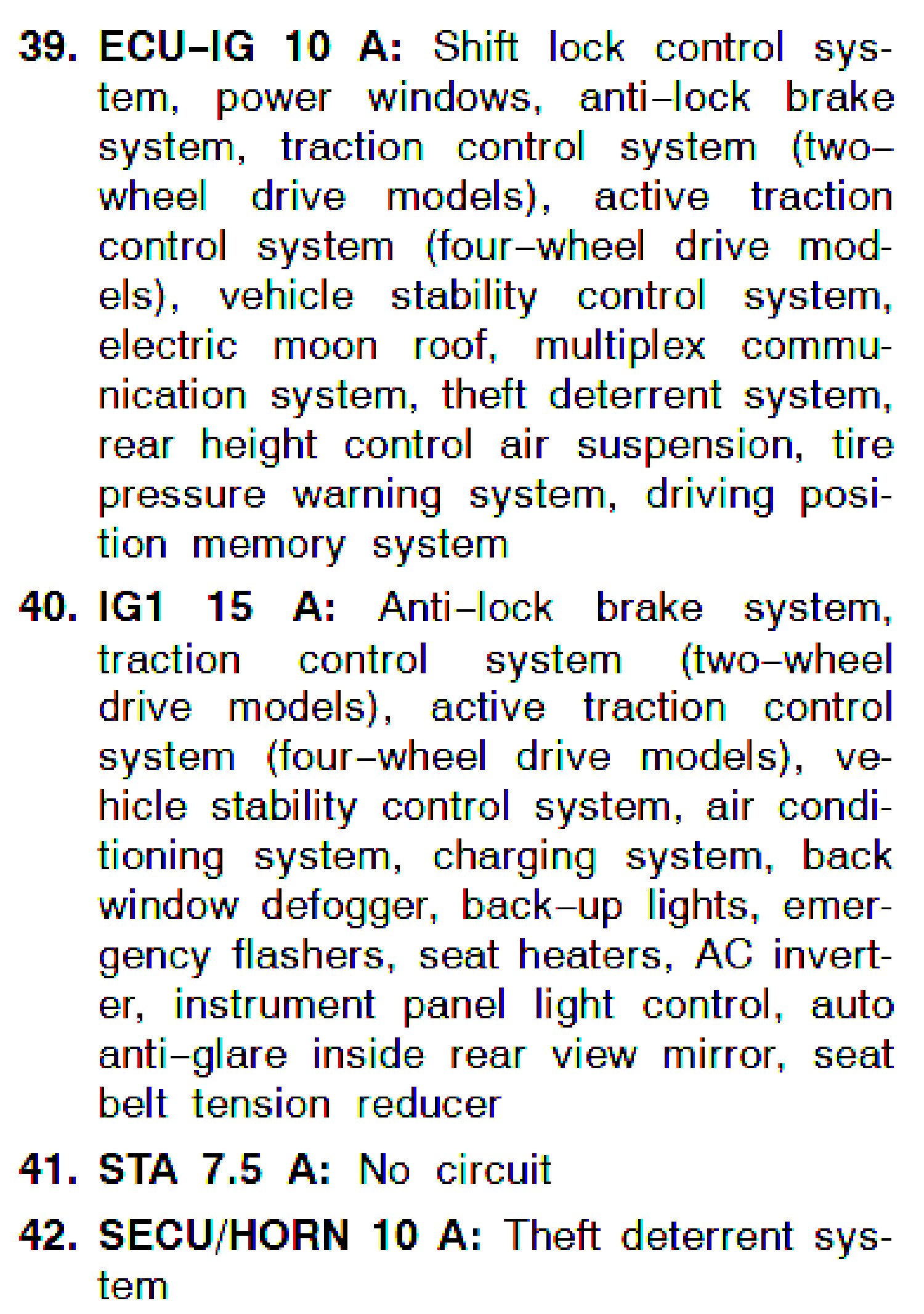

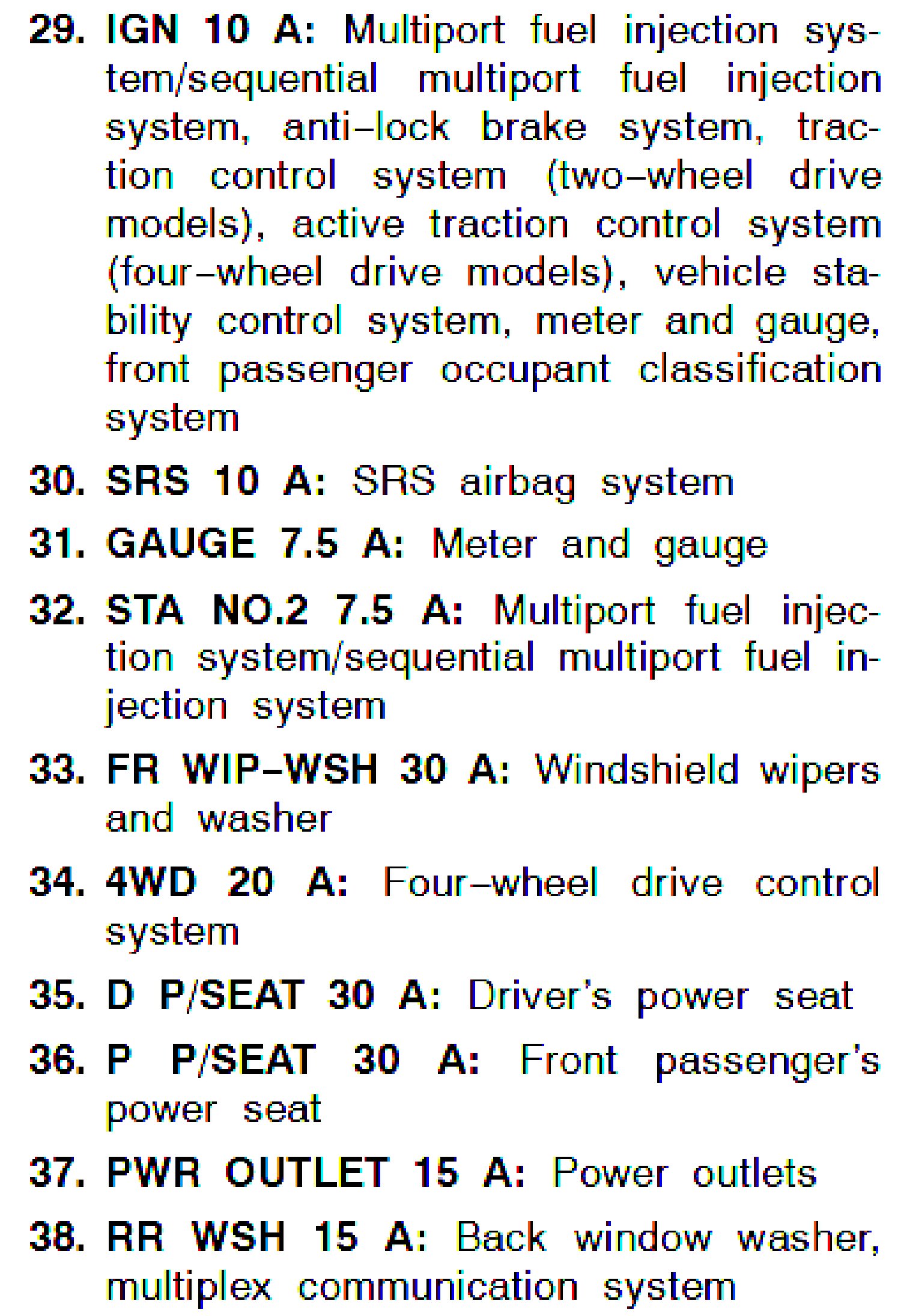

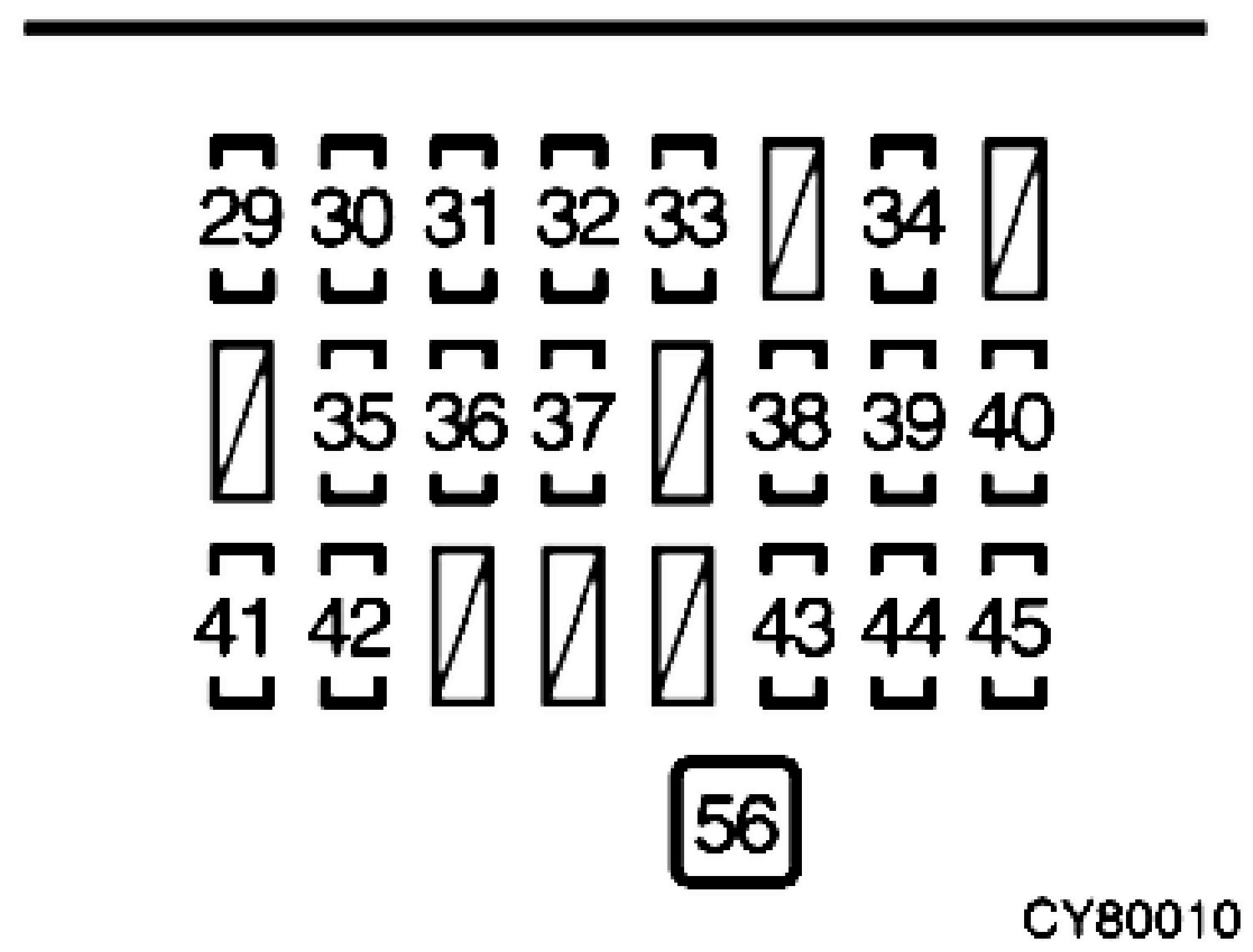

Fuse Locations - Left Side Instrument Panel:
