Removal

OTHER SYSTEM: CENTER POWER OUTLET SOCKET: REMOVAL

OTHER SYSTEM: CENTER POWER OUTLET SOCKET: REMOVAL

1. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

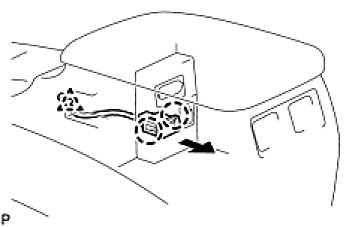

2. REMOVE CTR POWER OUTLET SOCKET ASSEMBLY






(a) Disconnect the connector.
(b) Disengage the wire harness clamp.
(c) Disengage the 2 claws and remove the CTR power outlet socket assembly.
