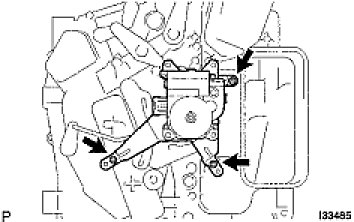

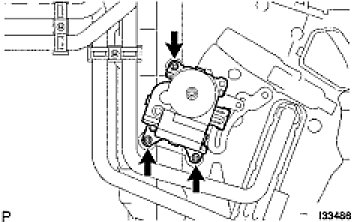

1. REMOVE MODE DAMPER SERVO SUB-ASSEMBLY






(a) Remove the 3 screws and mode damper servo sub-assembly.

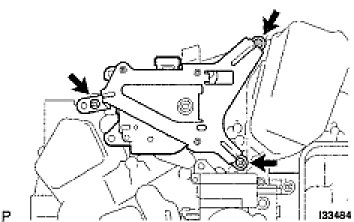

2. REMOVE DAMPER SERVO SUB-ASSEMBLY (INDEPENDENCE TEMPERATURE CONTROL)






(a) Remove the 3 screws and damper servo sub-assembly.
3. REMOVE DAMPER SERVO SUB-ASSEMBLY






(a) Remove the 3 screws and damper servo sub-assembly.

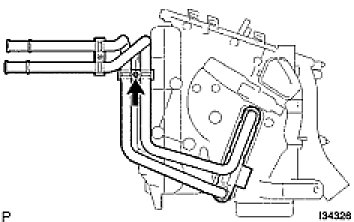

4. REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY






(a) Remove the screw, clamp and heater radiator unit sub-assembly.
5. REMOVE COOLER UNIT DRAIN HOSE NO. 1

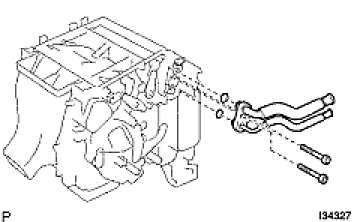

6. REMOVE AIR CONDITIONING TUBE ASSEMBLY

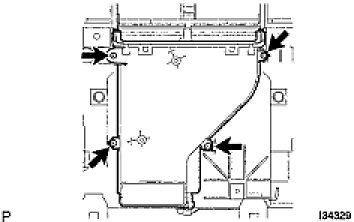

(a) Remove the screw.

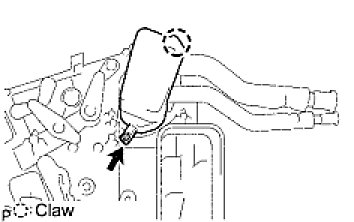

(b) Release the claw fitting and remove the cover.






(c) Using a hexagon wrench 4.0 mm (0.15 in.), remove the 2 hexagon bolts and air conditioning tube assembly.
(d) Remove the 2 O-rings from the air conditioning tube assembly.

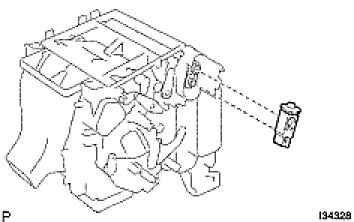

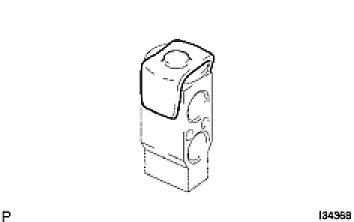

7. REMOVE COOLER EXPANSION VALVE






(a) Remove the cooler expansion valve from the cooler evaporator sub-assembly No.1.
8. REMOVE COOLING UNIT PACKING NO. 1






(a) Remove the cooling unit packing No. 1.
9. REMOVE COOLER EVAPORATOR SUB-ASSEMBLY NO. 1

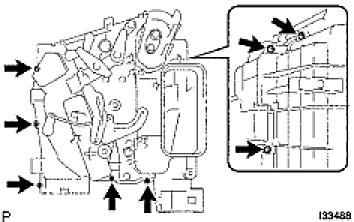

(a) Remove the 4 screws and air duct sub-assembly.






(b) Remove the 8 screws and separate the heater case.
(c) Remove the cooler evaporator sub-assembly No. 1.






(d) Remove the 2 O-rings from the cooler evaporator sub-assembly No. 1.

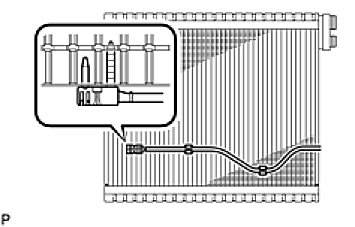

10. REMOVE COOLER THERMISTOR NO. 1






(a) Remove the cooler thermistor No. 1 from the cooler evaporator sub-assembly No. 1.
11. REMOVE COVER PLATE
