Removal

AIR CONDITIONING: CONDENSER: REMOVAL

AIR CONDITIONING: CONDENSER: REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

2. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY






(a) Remove the bolt and disconnect the cooler refrigerant discharge hose sub-assembly from the cooler condenser assembly.
(b) Remove the O-ring from the cooler refrigerant discharge hose sub-assembly.
NOTICE: Seat the opening of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

3. DISCONNECT AIR CONDITIONING TUBE ASSEMBLY






(a) Remove the bolt and disconnect the air conditioning tube assembly from the cooler condenser assembly.
(b) Remove the O-ring from the air conditioning tube assembly.
NOTICE: Seal the opening of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

4. REMOVE COOLER CONDENSER CUSHION NO. 2






(a) Remove the nut and cooler condenser bracket No. 1.






(b) Remove the 4 bolts, nut and cooler condenser cushion No. 2.
5. REMOVE COOLER CONDENSER CUSHION NO. 1






(a) Remove the 4 bolts and cooler condenser cushion No. 1.

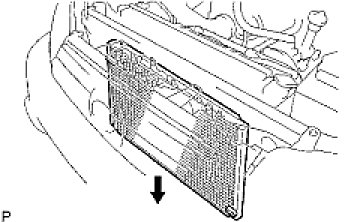

6. REMOVE COOLER CONDENSER CORE






(a) Remove the cooler condenser core.
