Installation

AIR CONDITIONING: CONDENSER: INSTALLATION

AIR CONDITIONING: CONDENSER: INSTALLATION

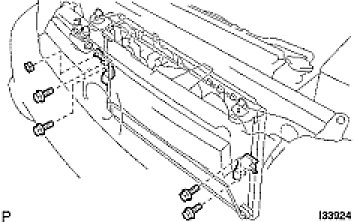

1. INSTALL COOLER CONDENSER CUSHION NO. 1






(a) Install the cooler condenser cushion No. 1 with the 4 bolts.
Torque: 5.4 Nm (55 kgf-cm, 47 in-lbf)

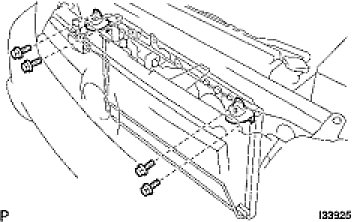

2. INSTALL COOLER CONDENSER CUSHION NO. 2






(a) Install the cooler condenser cushion No. 2 with the 4 bolts and nut.
Torque: 5.4 Nm (55 kgf-cm, 47 in-lbf)

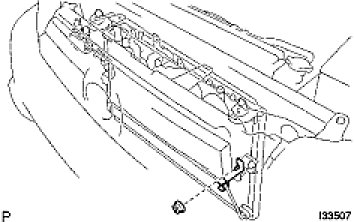

(b) Install the cooler condenser bracket No. 1 with the nut.
Torque: 5.4 Nm (55 kgf-cm, 47 in-lbf)

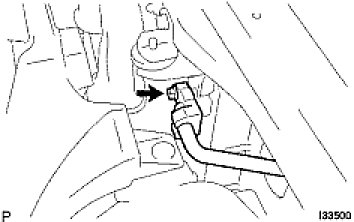

3. INSTALL AIR CONDITIONING TUBE ASSEMBLY
(a) Remove the attached vinyl tape from the tube and connecting part of the cooler condenser assembly.
(b) Sufficiently apply compressor oil to a new O-ring and fitting surface of the pipe joint.
Compressor oil:
ND-OIL 8 or equivalent
(c) Install the O-ring on the air conditioning tube assembly.






(d) Connect the air conditioning tube assembly on the cooler condenser assembly with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 47 in-lbf)

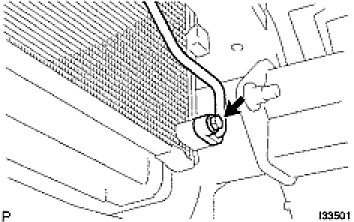

4. INSTALL DISCHARGE HOSE SUB-ASSEMBLY
(a) Remove the attached vinyl tape from the tube and connecting part of the cooler condenser assembly.
(b) Sufficiently apply compressor oil to a new O-ring and fitting surface of the pipe joint.
Compressor oil:
ND-OIL 8 or equivalent






(c) Install the O-ring on the discharge hose sub-assembly.
(d) Connect the discharge hose sub-assembly on the cooler condenser assembly with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 47 in-lbf)
5. CHARGE REFRIGERANT Service and Repair

6. WARM UP ENGINE Service and Repair

7. INSPECT LEAKAGE OF REFRIGERANT Service and Repair
