Disassembly

AIR CONDITIONING: CONDENSER: DISASSEMBLY

AIR CONDITIONING: CONDENSER: DISASSEMBLY

1. REMOVE COOLER DRYER






(a) Using a hexagon wrench 14 mm (0.55 in.), remove the cap and filter from the modulator.

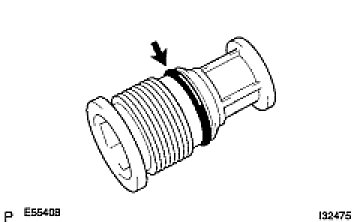

(b) Remove the O-ring from the cap.






(c) Using needle nose pliers, remove the cooler dryer.
