AIR CONDITIONING: BLOWER UNIT: REMOVAL

AIR CONDITIONING: BLOWER UNIT: REMOVAL

1. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY Removal

2. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER Removal

3. REMOVE CONSOLE UPPER PANEL GARNISH NO. 1 Removal

4. REMOVE CONSOLE UPPER PANEL GARNISH NO. 2
5. REMOVE CONSOLE BOX ASSEMBLY REAR Removal

6. REMOVE COWL SIDE TRIM BOARD RH Removal

7. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 2 Removal

8. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
9. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY Removal

10. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO. 2 Removal

11. REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY NO. 2 Removal

12. REMOVE AIR DUCT NO. 2






(a) Remove the 4 bolts and disconnect the Instrument panel safety pad sub-assembly.

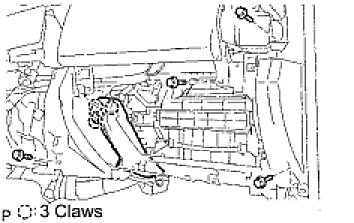

(b) Remove the 3 claw fittings and remove the air duct No. 2.
13. REMOVE BLOWER ASSEMBLY






(a) Release the 7 clamps and disconnect the connectors.






(b) Remove the bolt and 2 screws and nut.
(c) Release the claw fitting and remove the blower assembly.
