AIR CONDITIONING: BLOWER UNIT: INSTALLATION

AIR CONDITIONING: BLOWER UNIT: INSTALLATION

1. INSTALL BLOWER ASSEMBLY

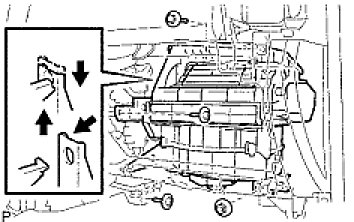

(a) Install the blower assembly with the claw fitting.
(b) Install the bolt, 2 screws and nut.
Bolt - Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
Nut - Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

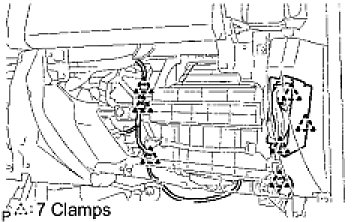

(c) Install the 7 clamps and connect the connectors.
2. INSTALL AIR DUCT NO. 2
3. INSTALL INSTRUMENT PANEL REGISTER ASSEMBLY NO. 2
4. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER NO. 2
5. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
6. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
7. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 2
8. INSTALL COWL SIDE TRIM BOARD RH
9. INSTALL CONSOLE BOX ASSEMBLY REAR
10. INSTALL CONSOLE UPPER PANEL GARNISH NO. 2
11. INSTALL CONSOLE UPPER PANEL GARNISH NO. 1
12. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
13. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
