Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

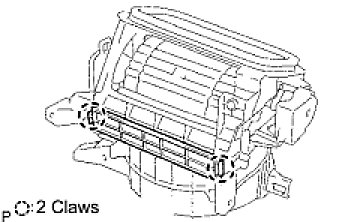

1. REMOVE CLEAN AIR FILTER SUB-ASSEMBLY






(a) Release the 2 claw fittings and remove the air filter sub-assembly.
2. REMOVE CLEAN AIR FILTER






(a) Remove the air refiner element from the air filter cover plate.
3. REMOVE AIR FILTER COVER PLATE

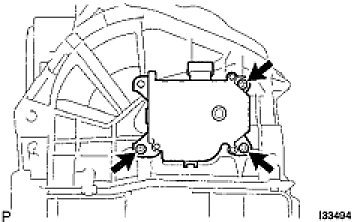

4. REMOVE BLOWER DAMPER SERVO SUB-ASSEMBLY






(a) Remove the 3 screws and blower damper servo sub-assembly.

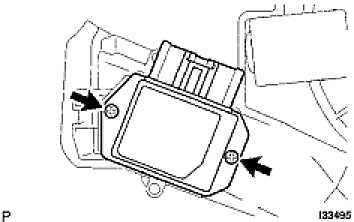

5. REMOVE BLOWER MOTOR CONTROL






(a) Remove the 2 screws and blower motor control.

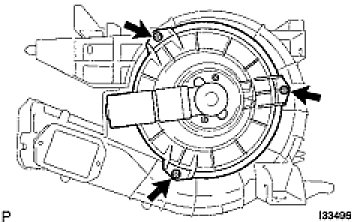

6. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY






(a) Remove the 3 screws and blower with fan motor sub-assembly.
