Home >> Toyota Truck >> 2008 >> 4 Runner 2WD V6-4.0L (1GR-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Timing Chain >> Service and Repair >> Components

Components

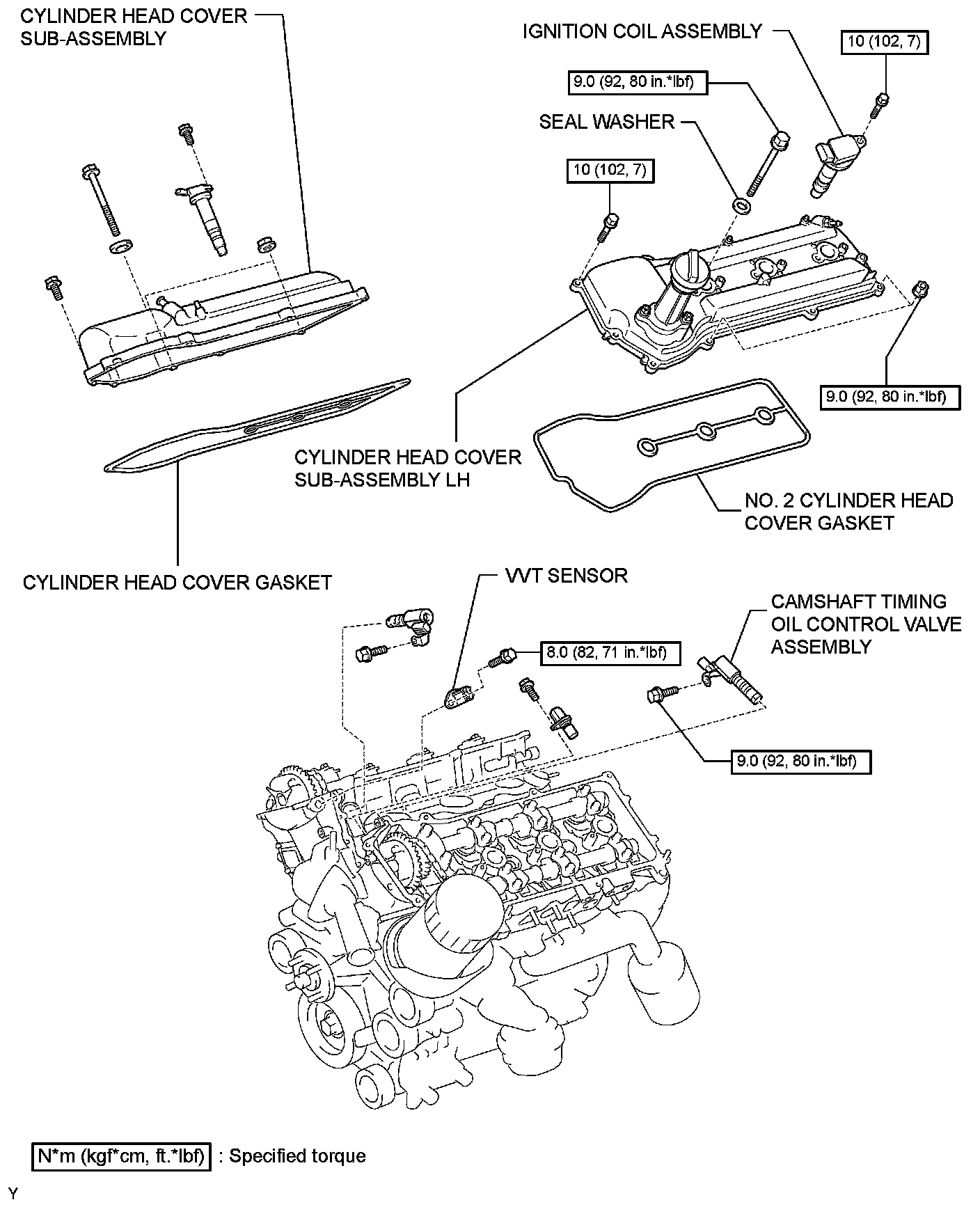

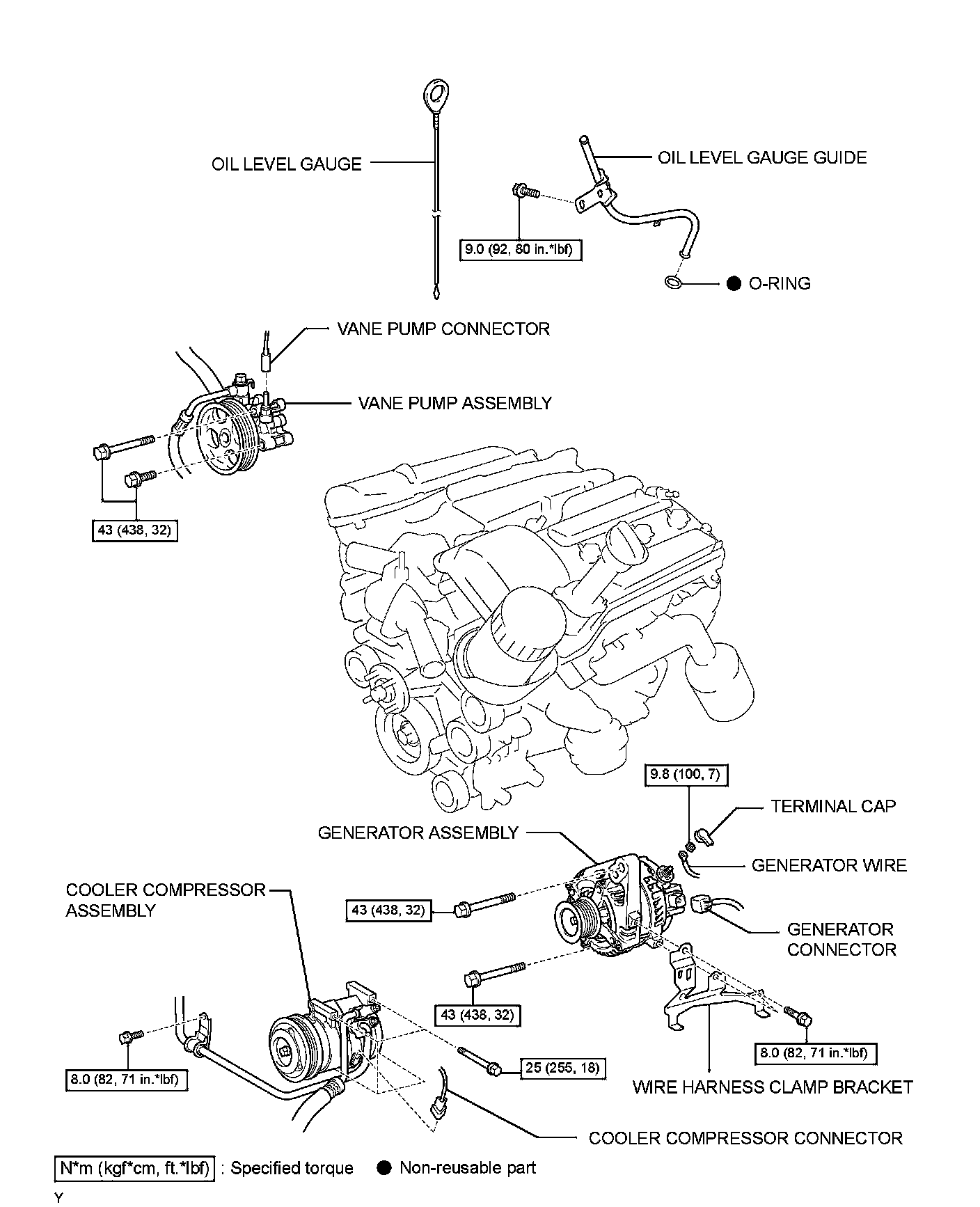

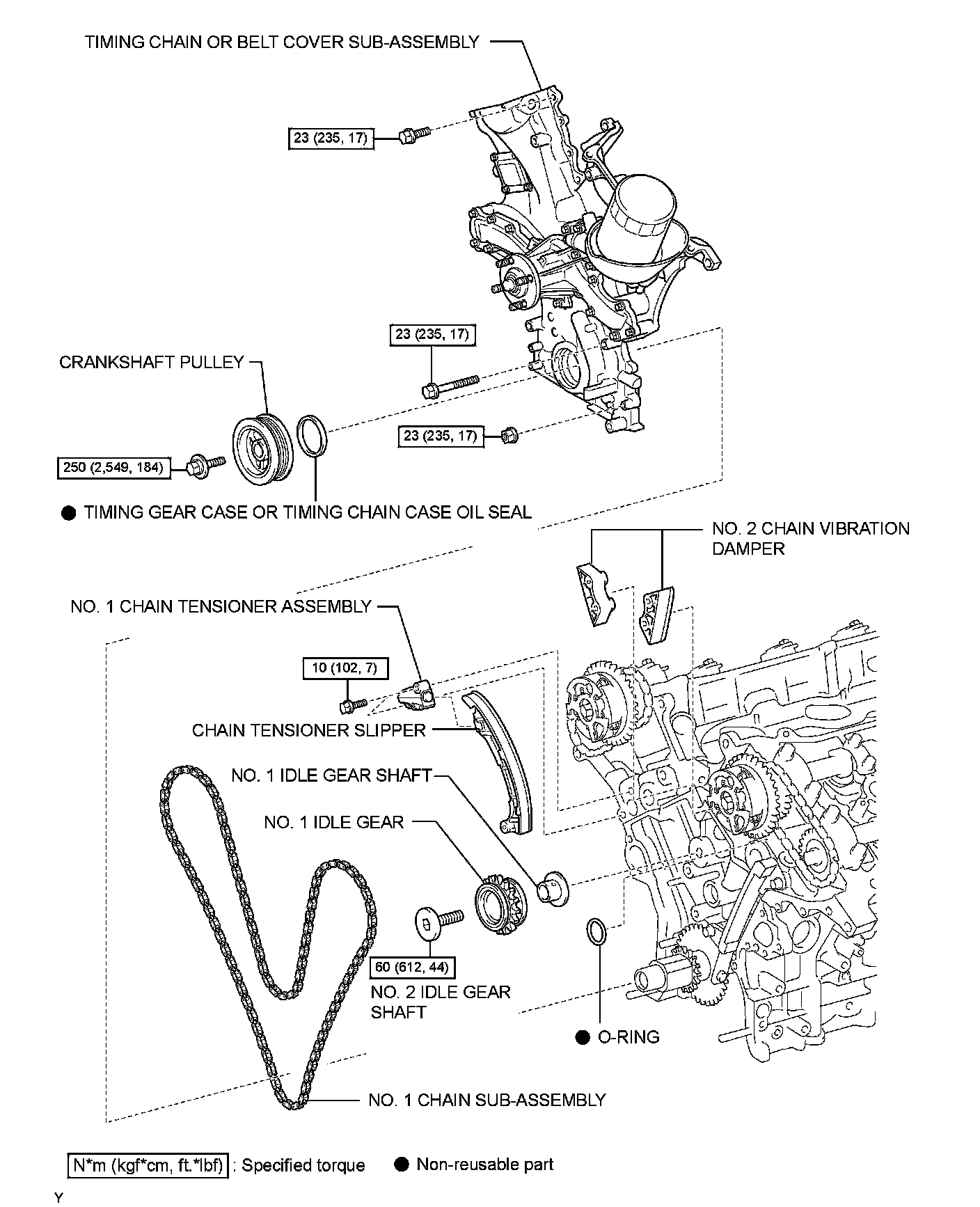

1GR-FE ENGINE MECHANICAL: TIMING CHAIN: COMPONENTS

1GR-FE ENGINE MECHANICAL: TIMING CHAIN: COMPONENTS
