Components

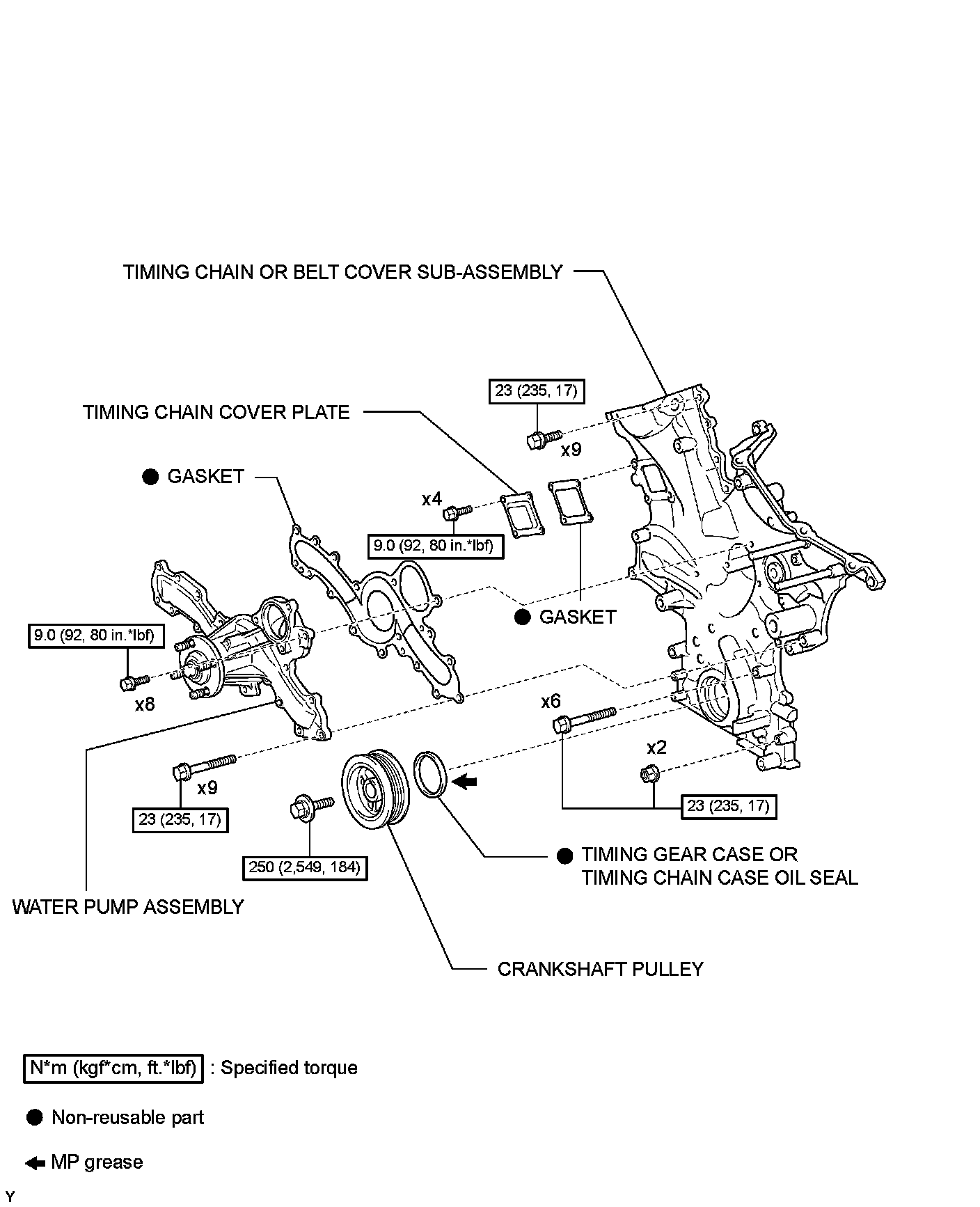

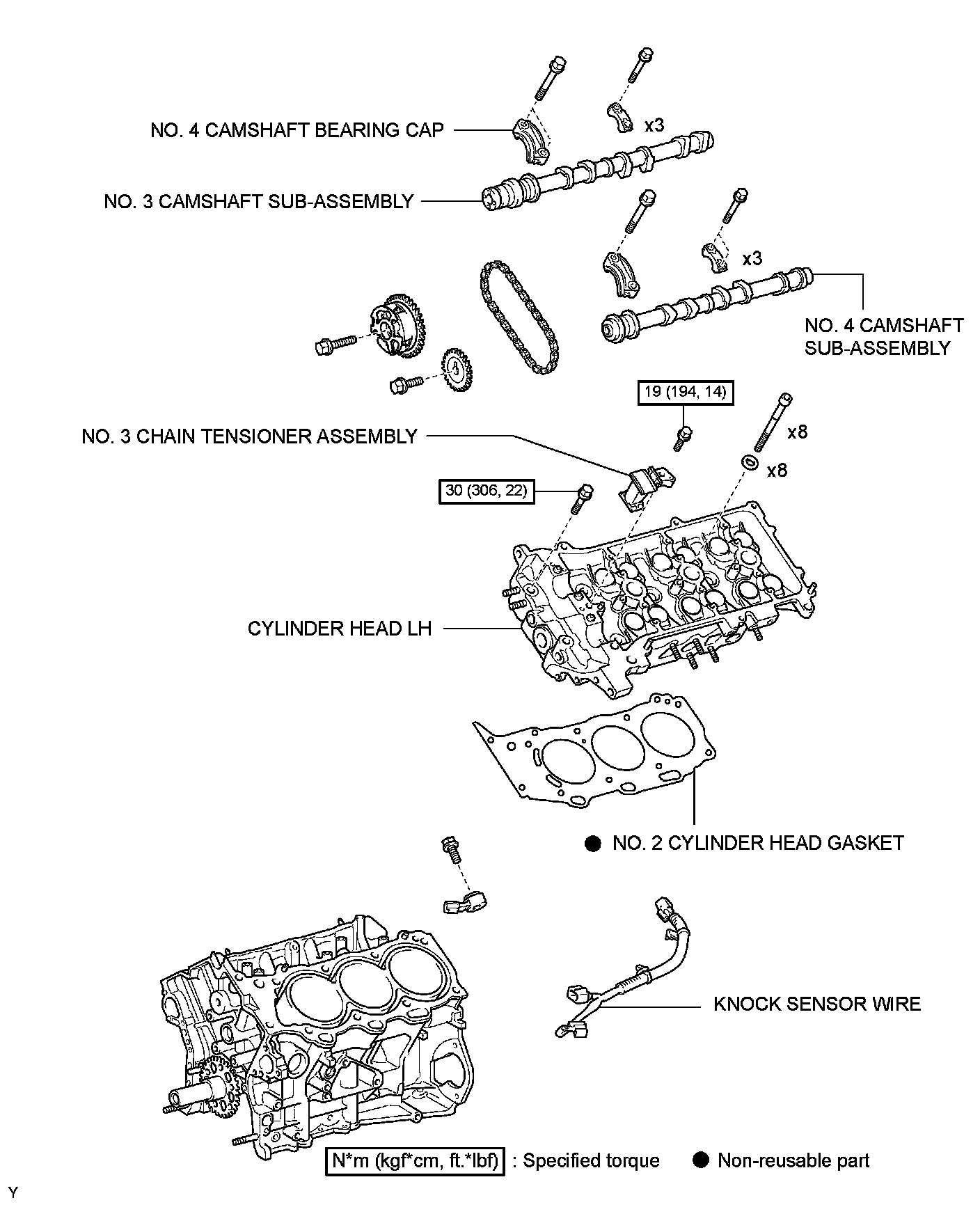

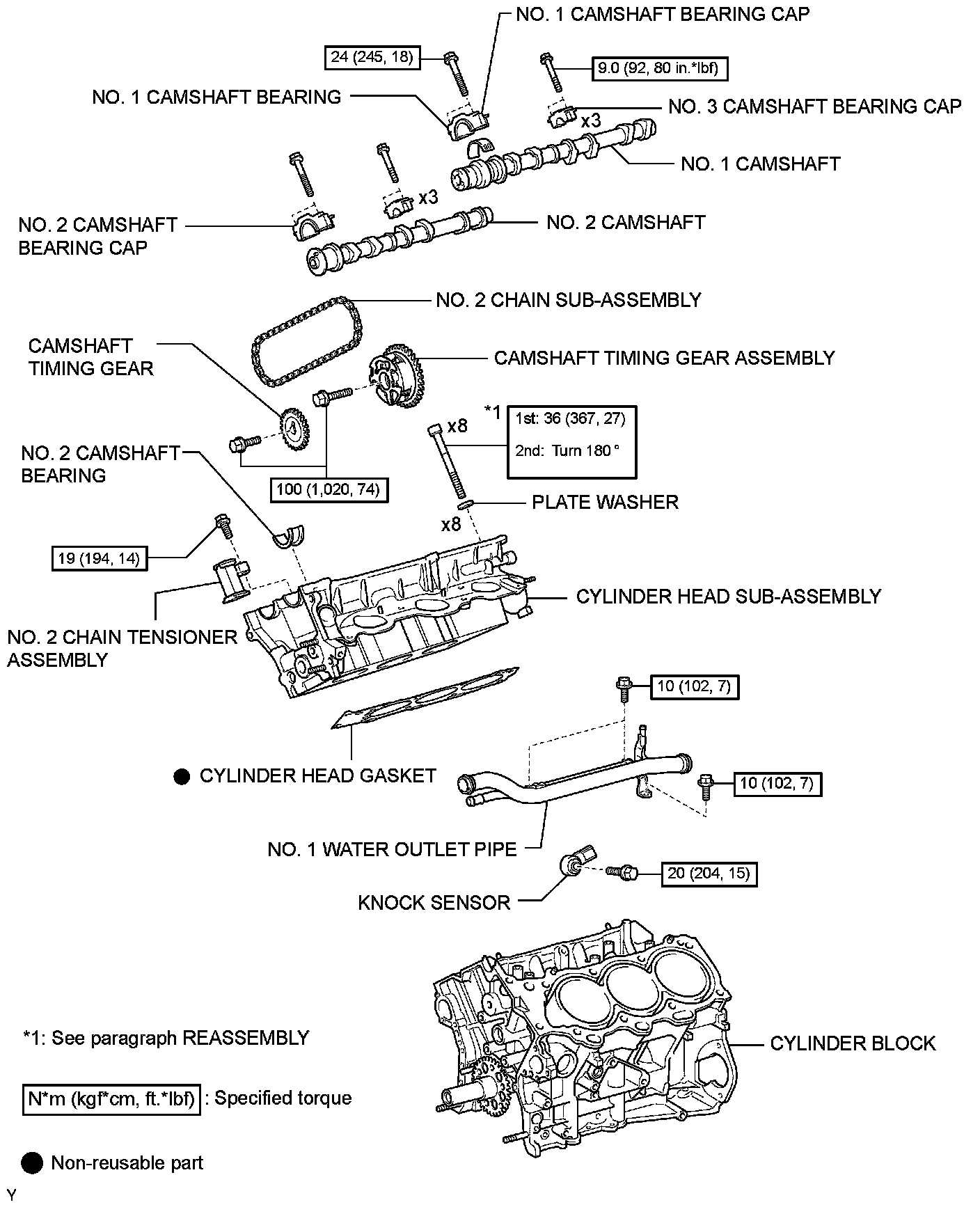

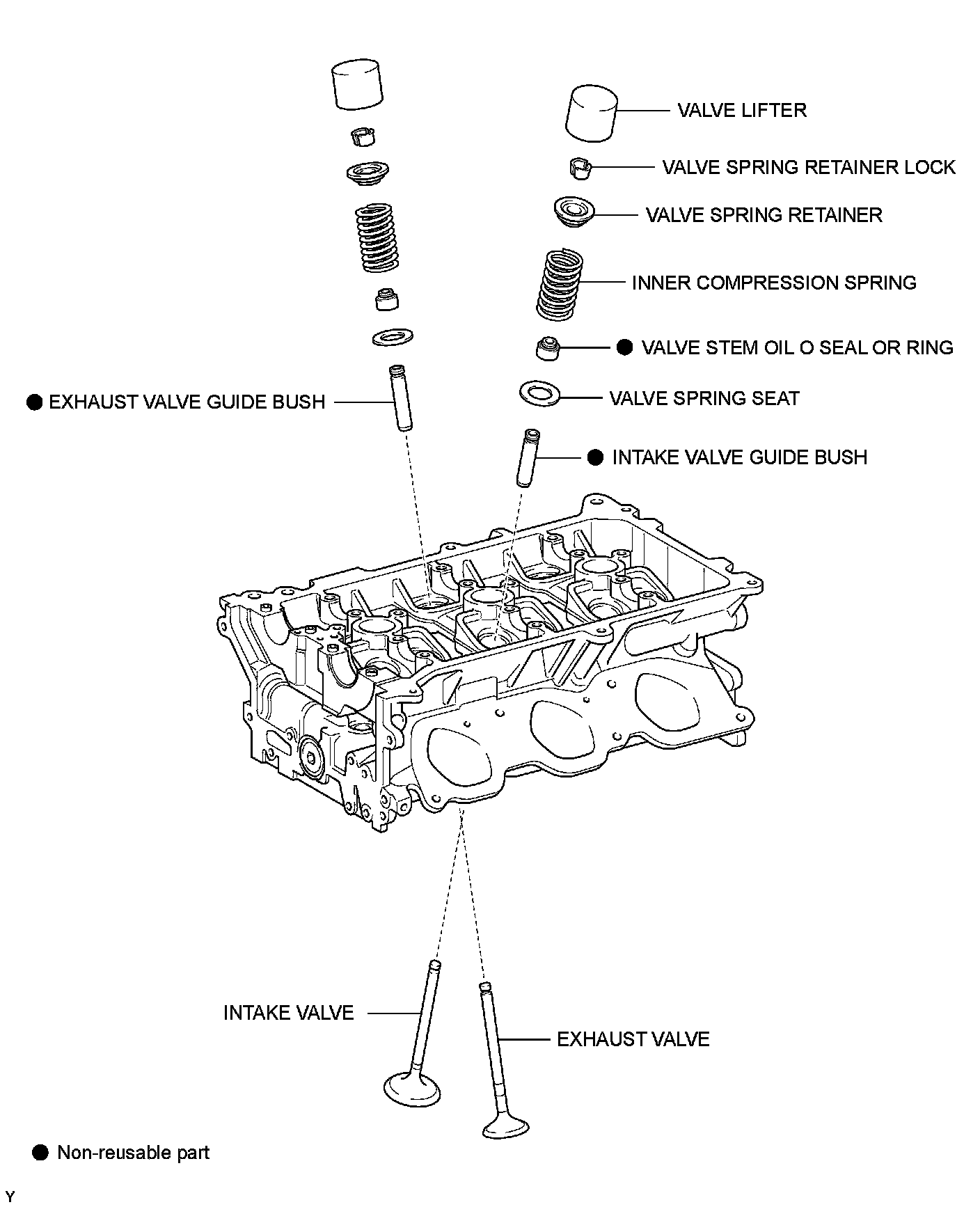

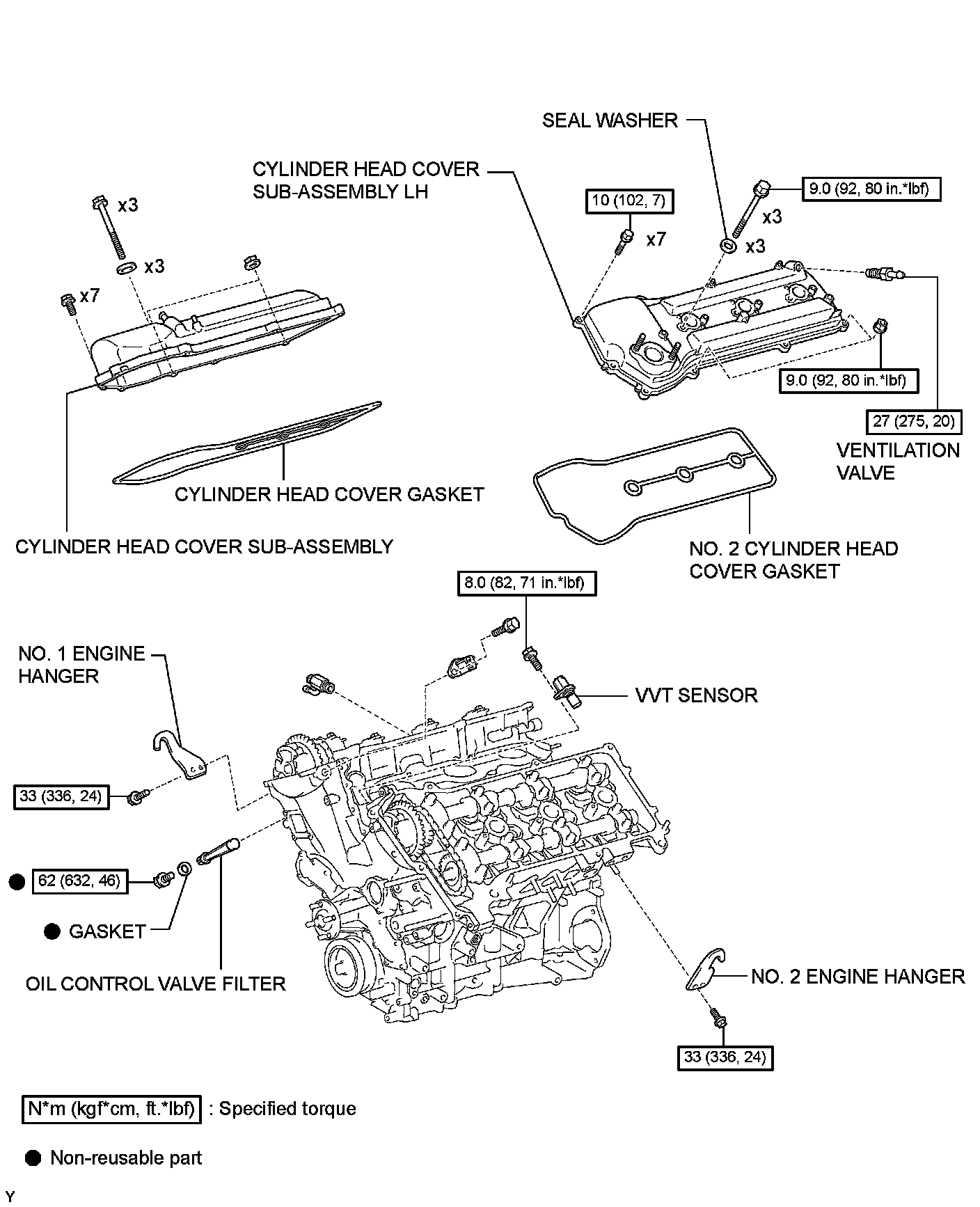

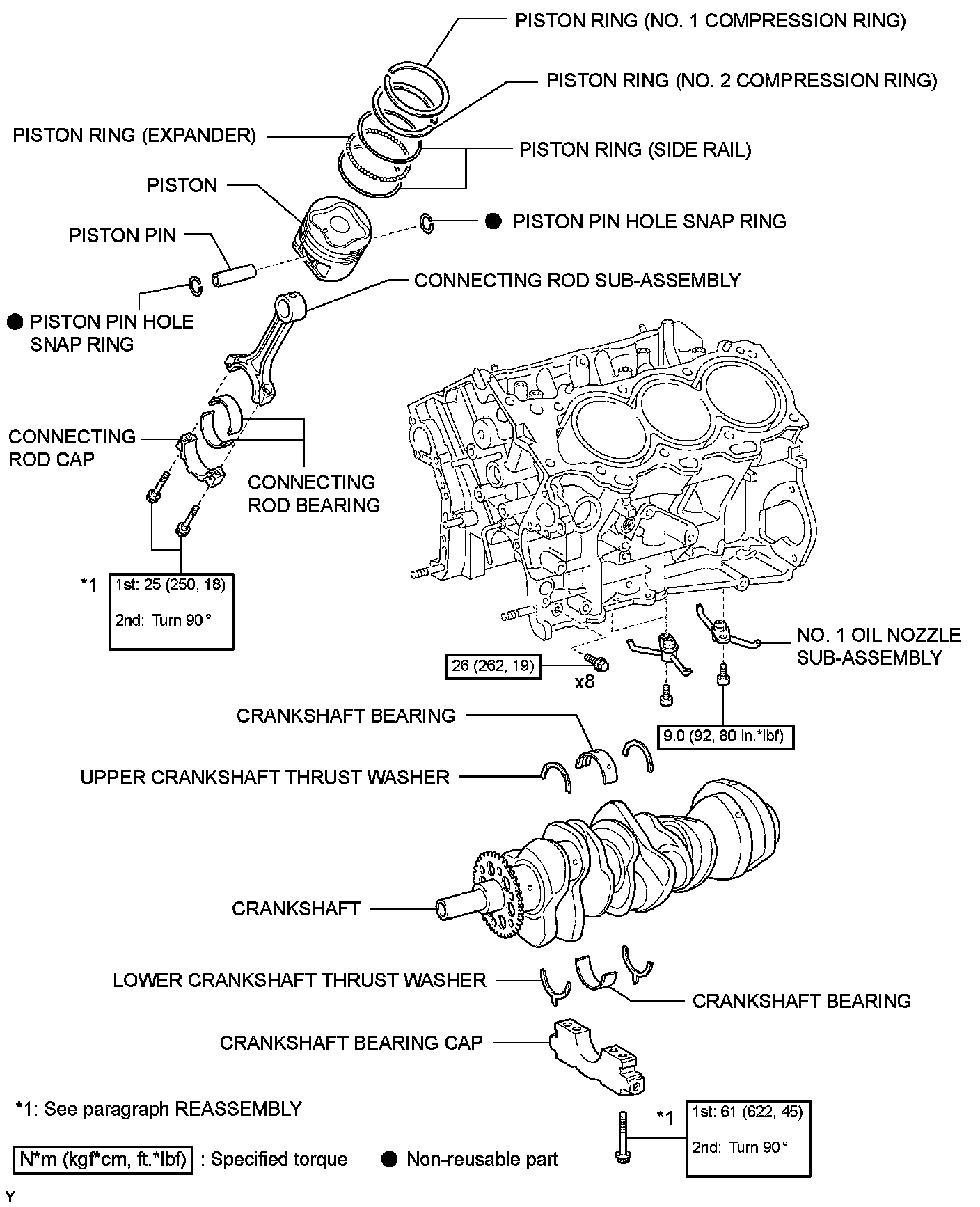

1GR-FE ENGINE MECHANICAL: ENGINE UNIT: COMPONENTS

1GR-FE ENGINE MECHANICAL: ENGINE UNIT: COMPONENTS
