Toyota Truck
>>
2008
>>
4 Runner 2WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Oil Pump
>>
Service and Repair
>>
Components
Components

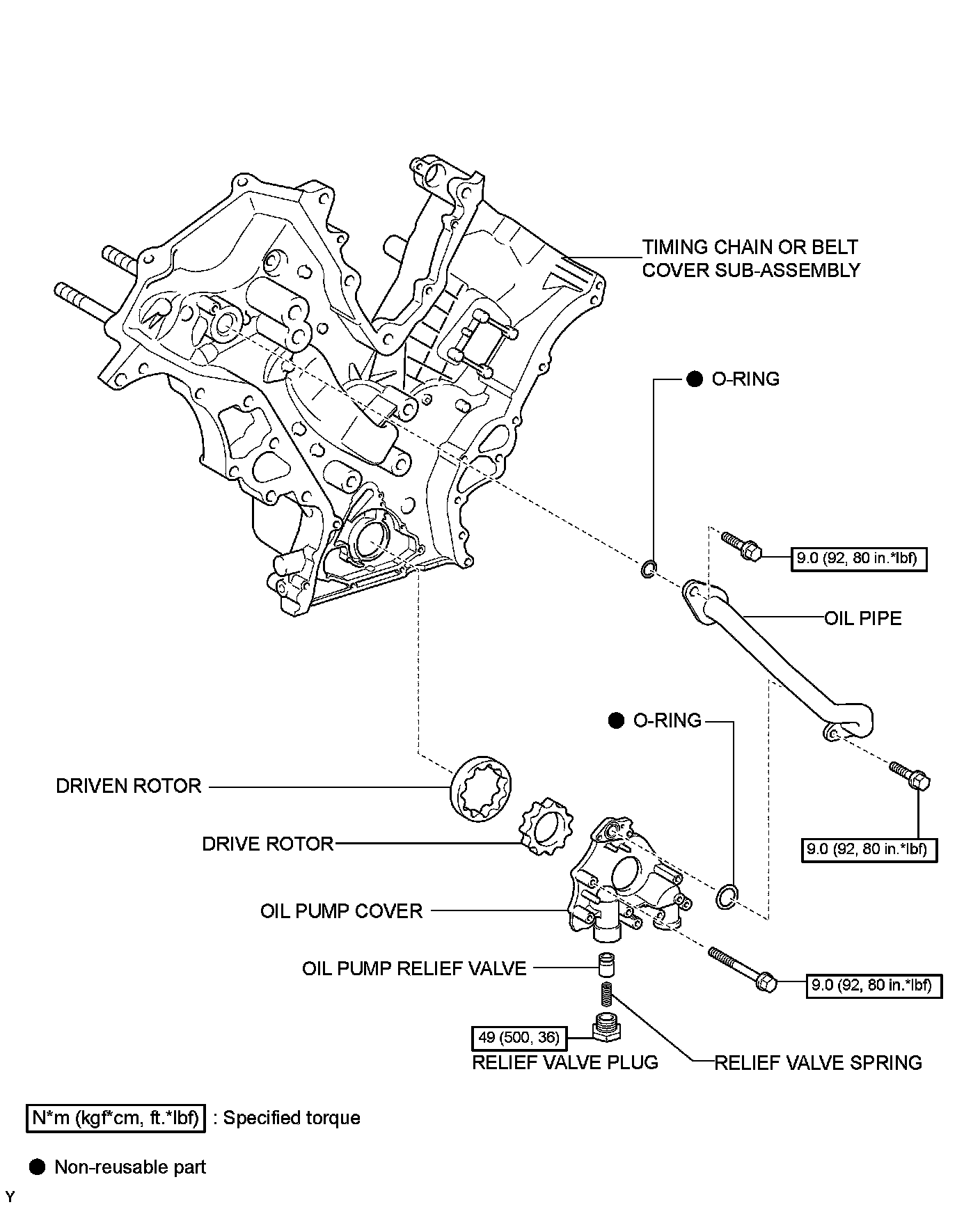

1GR-FE LUBRICATION: OIL PUMP: COMPONENTS
1GR-FE LUBRICATION: OIL PUMP: COMPONENTS
