Components

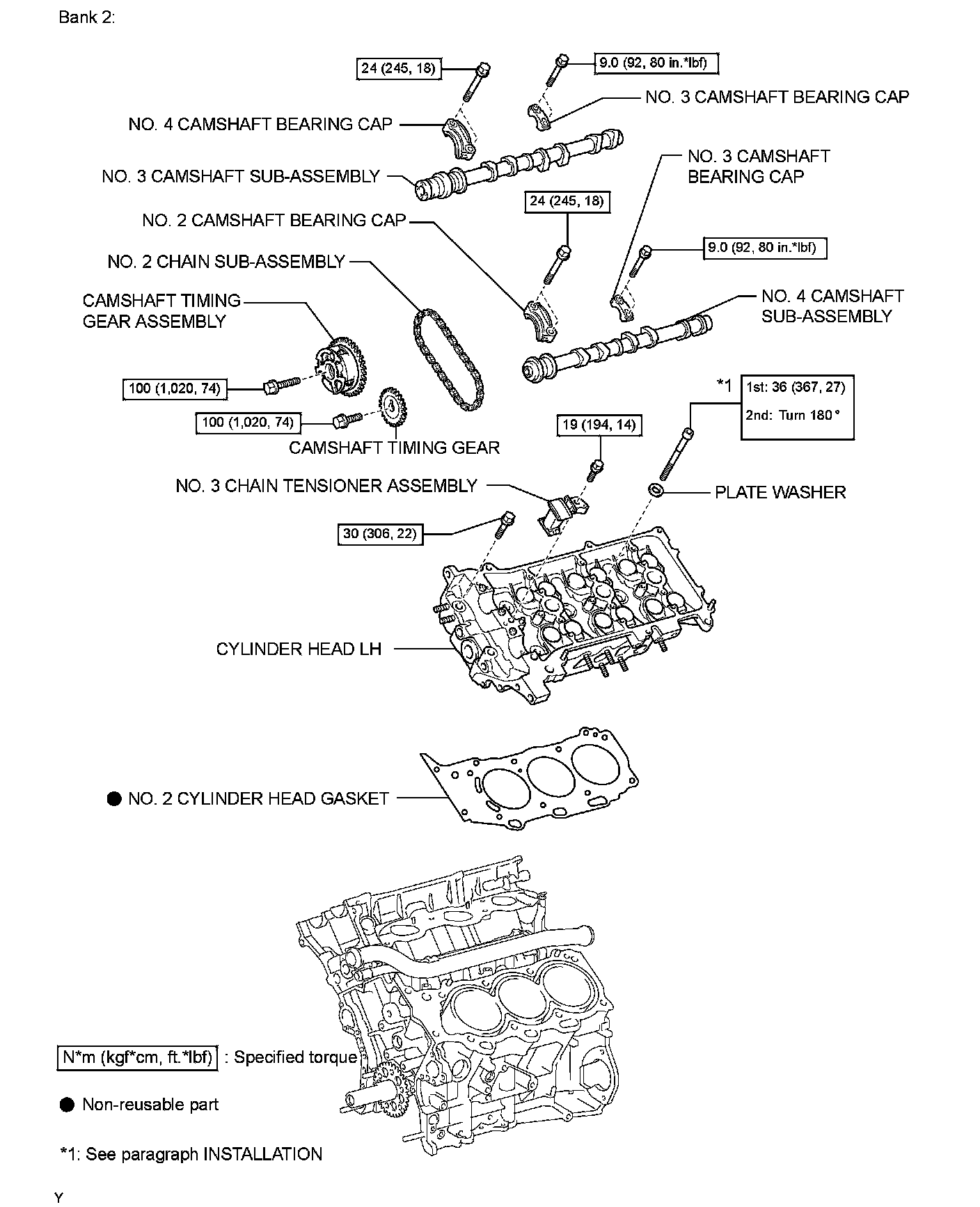

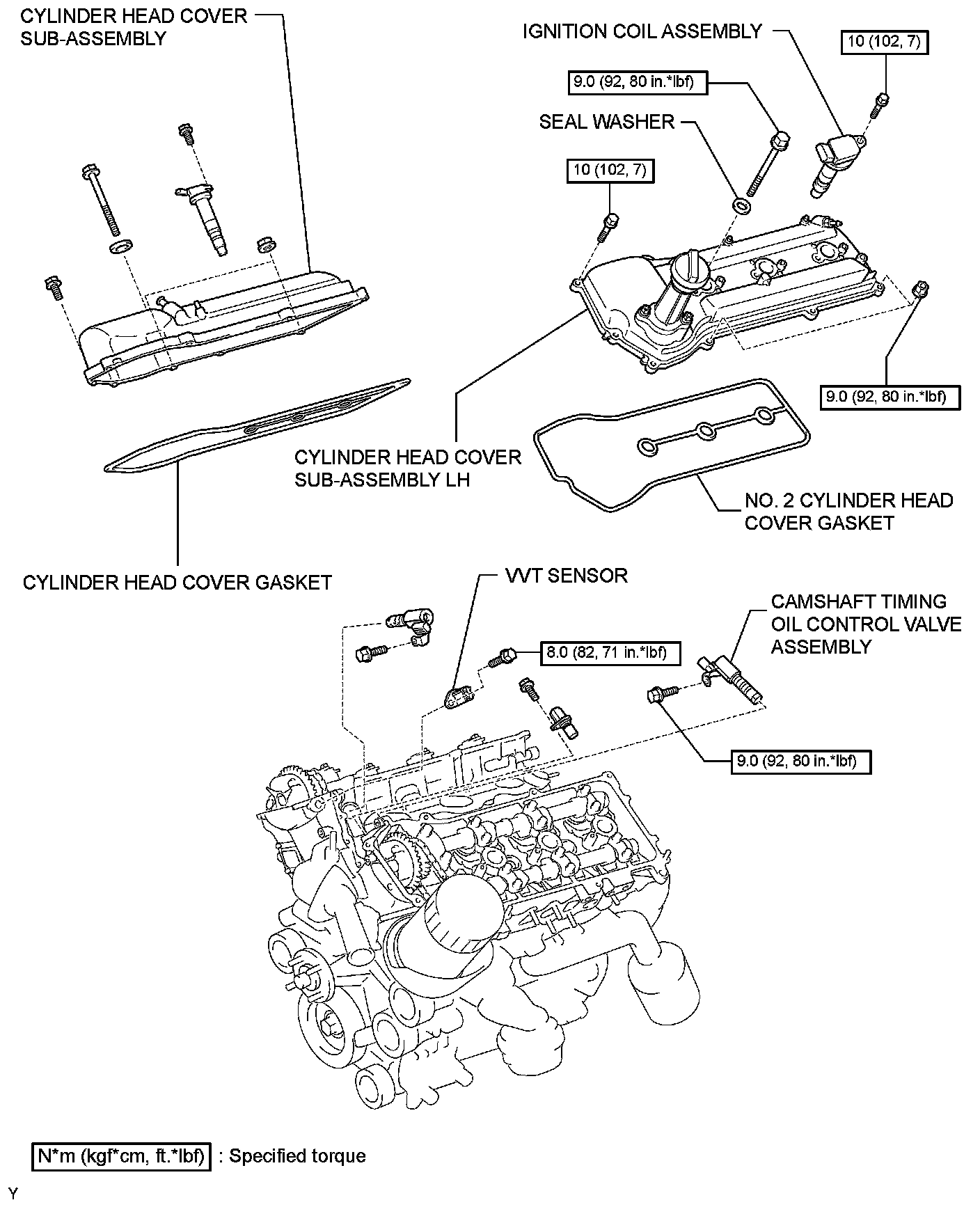

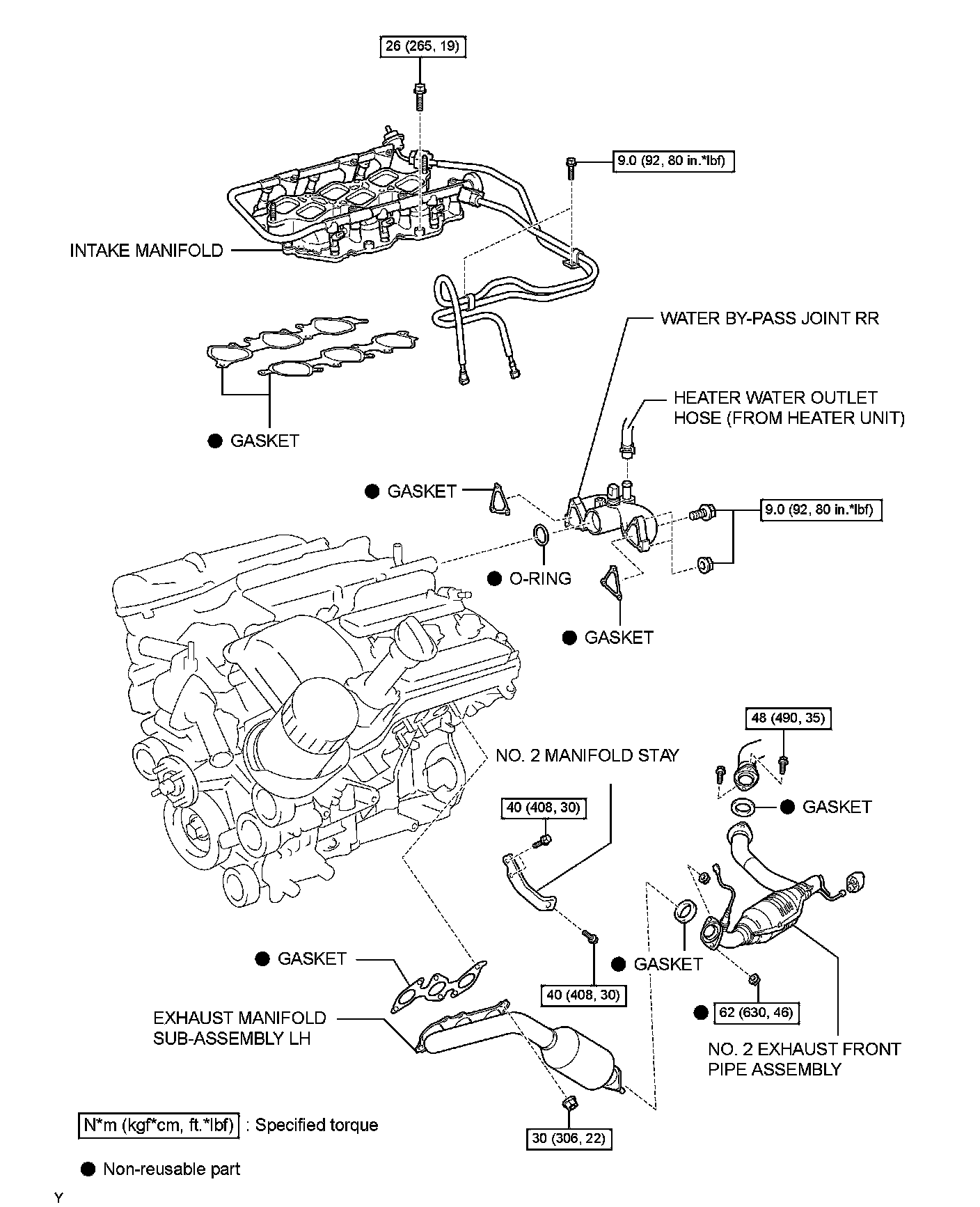

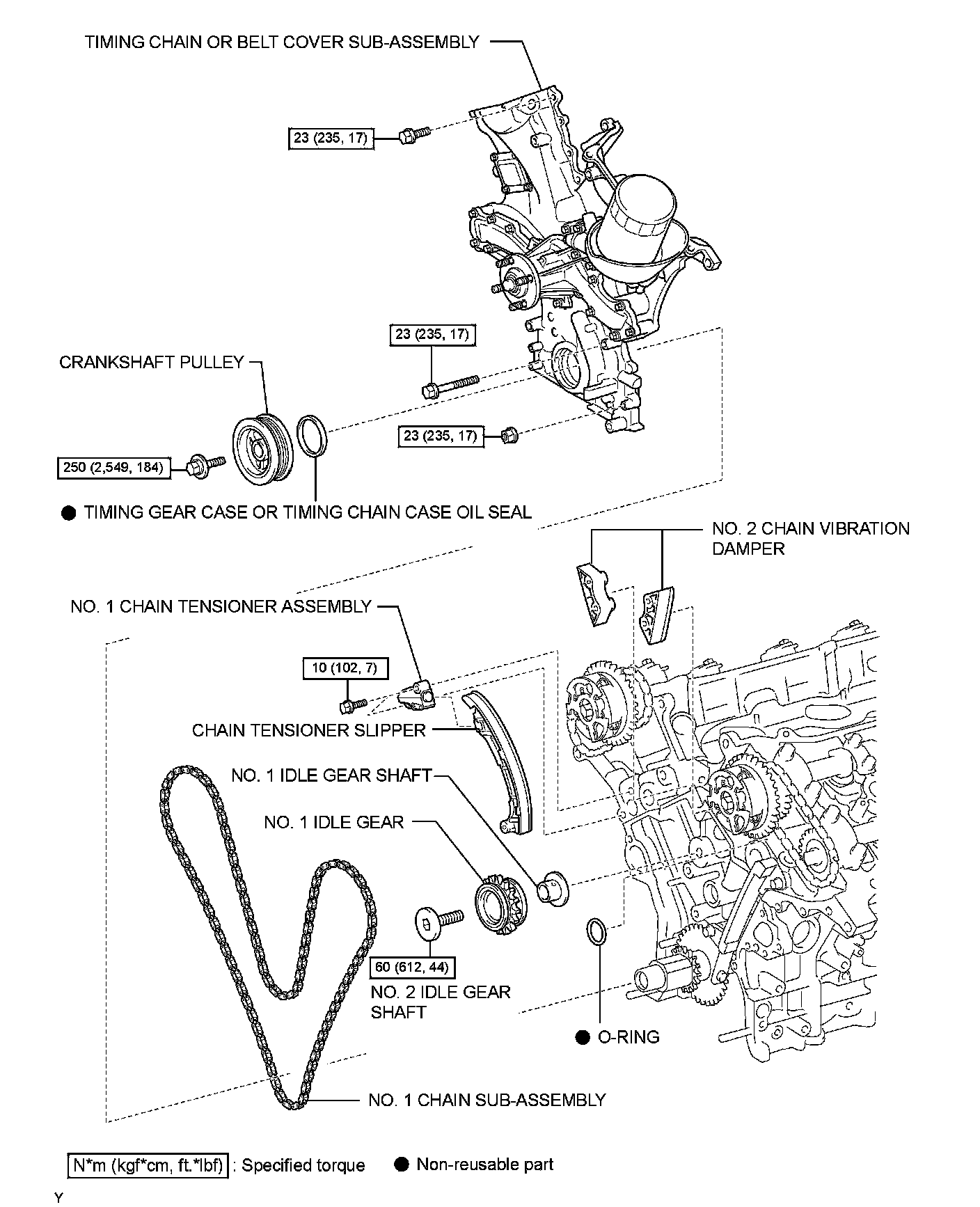

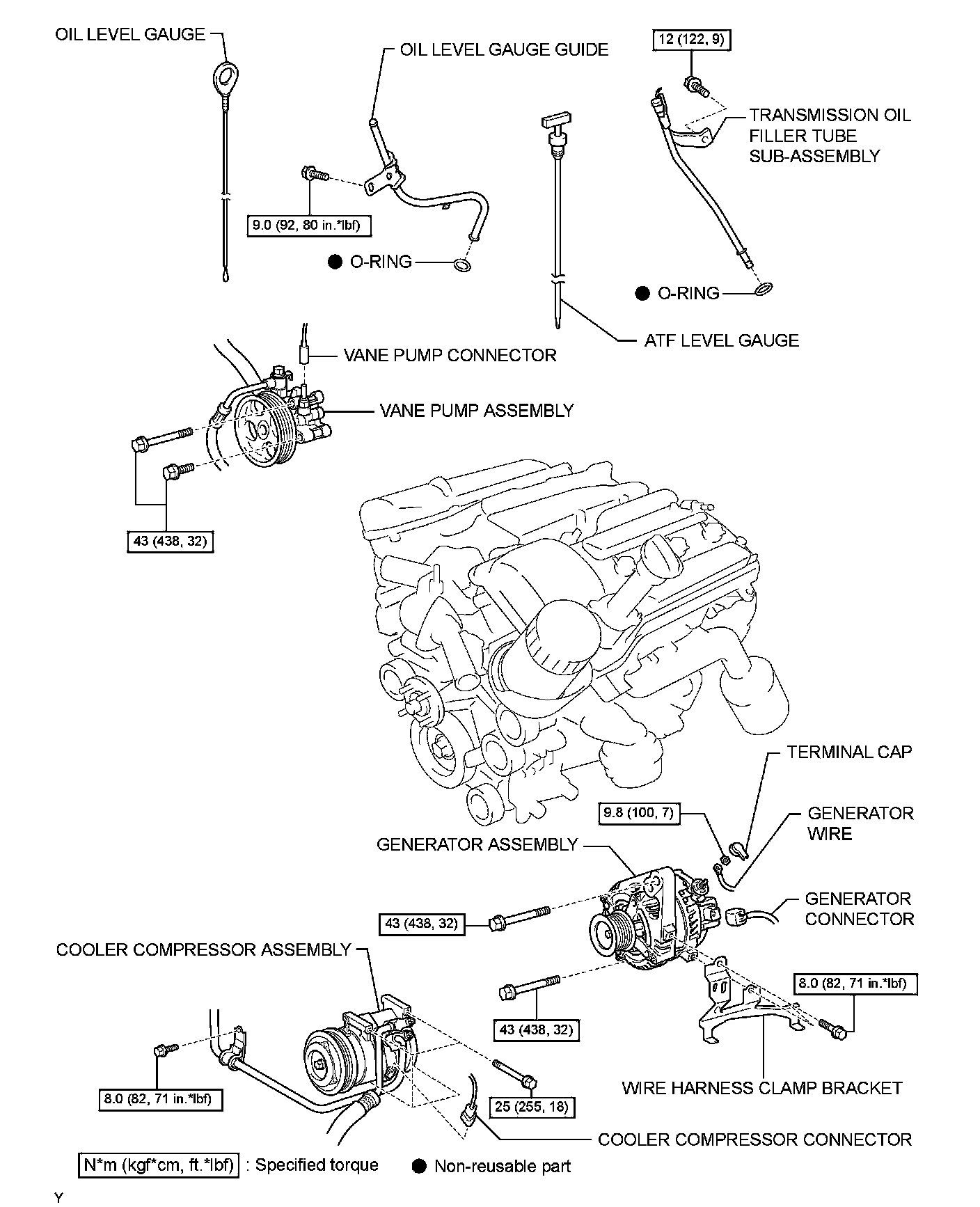

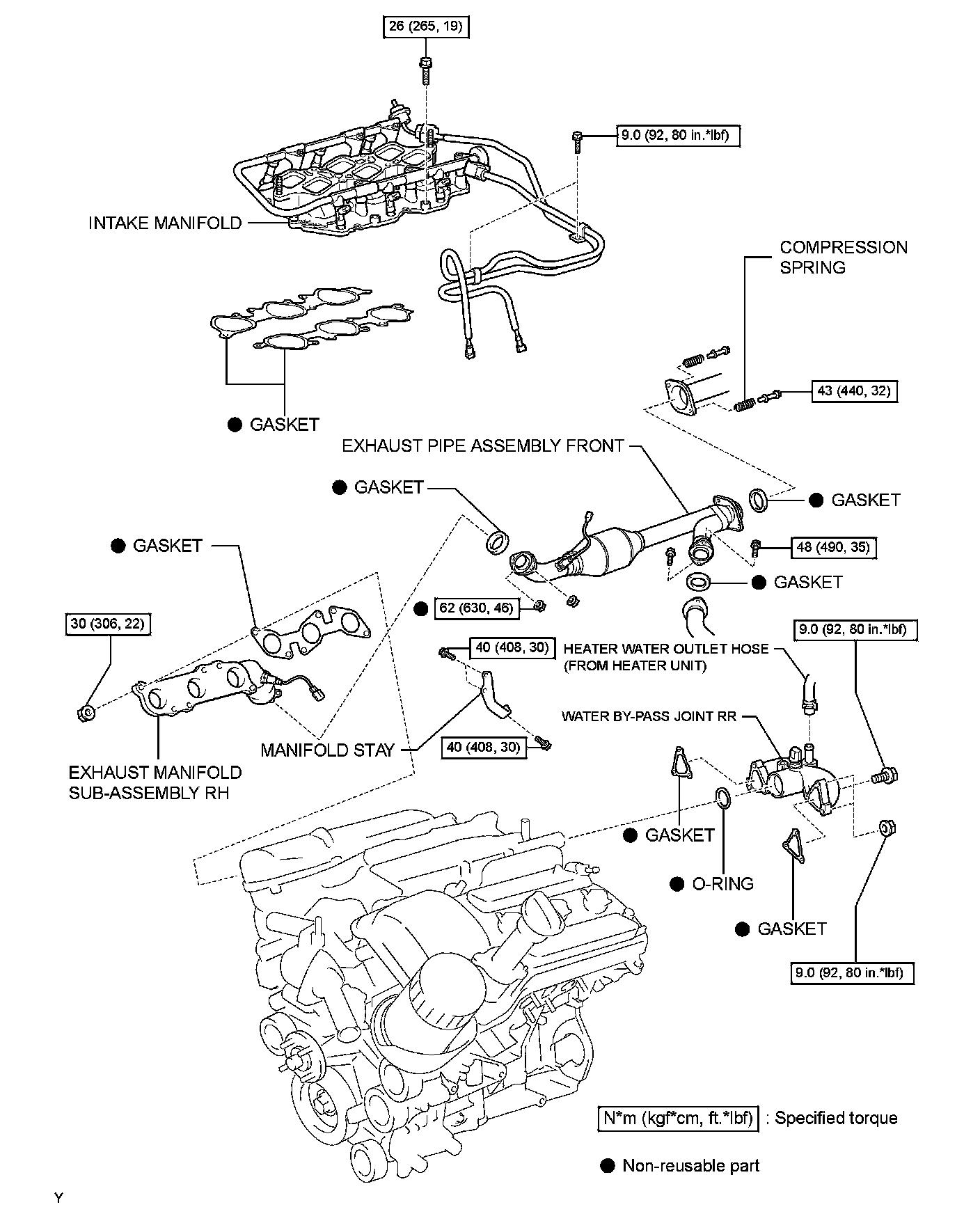

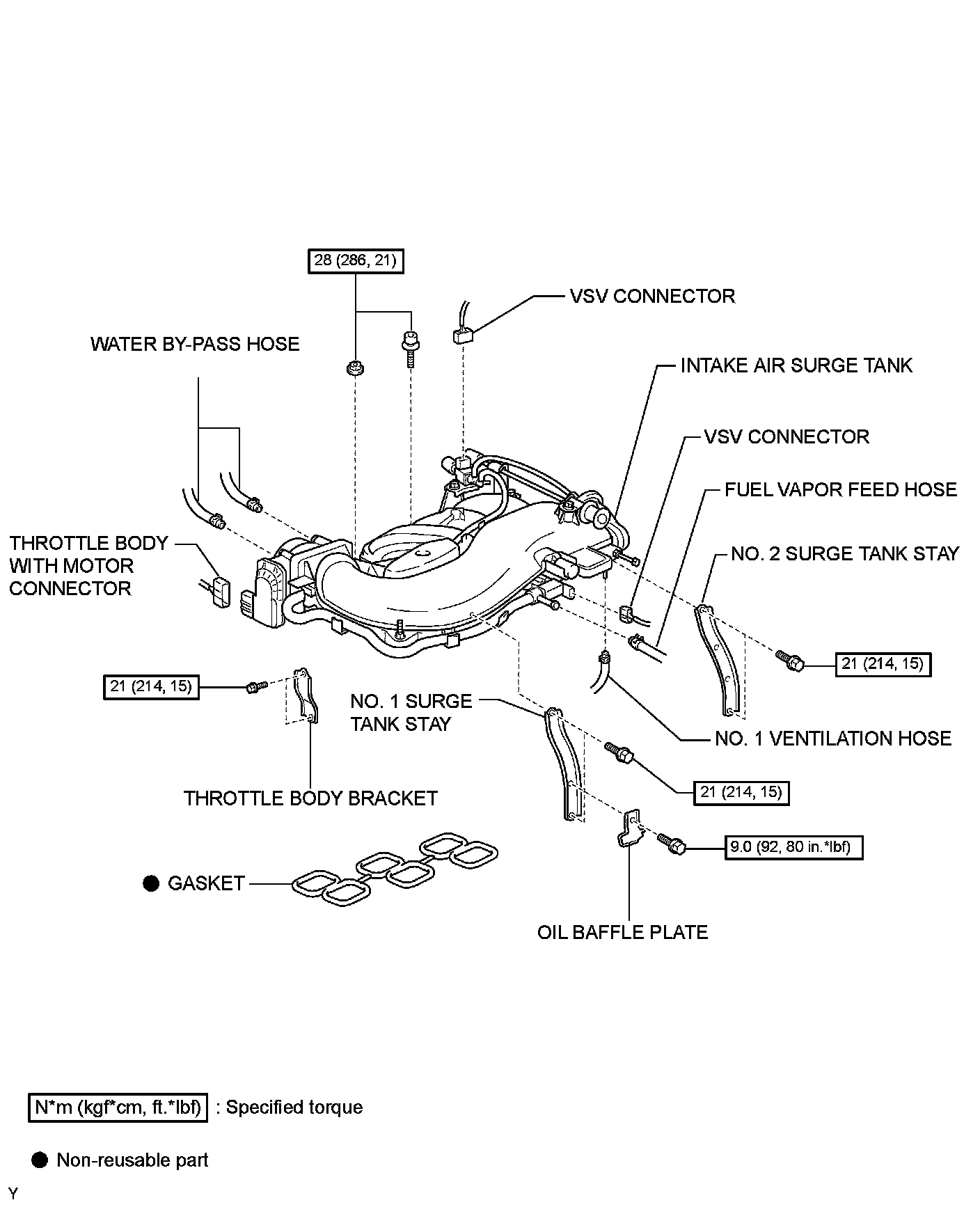

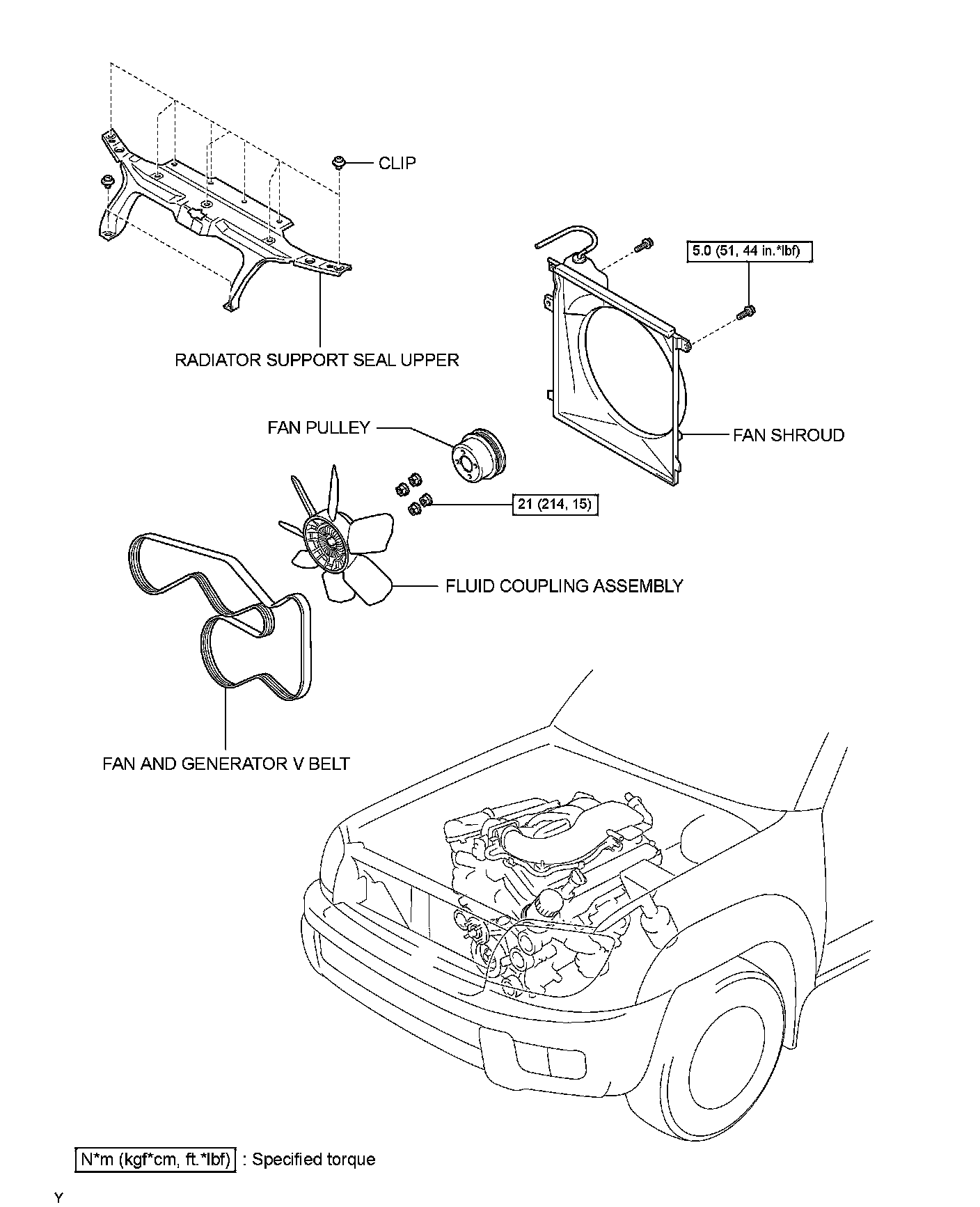

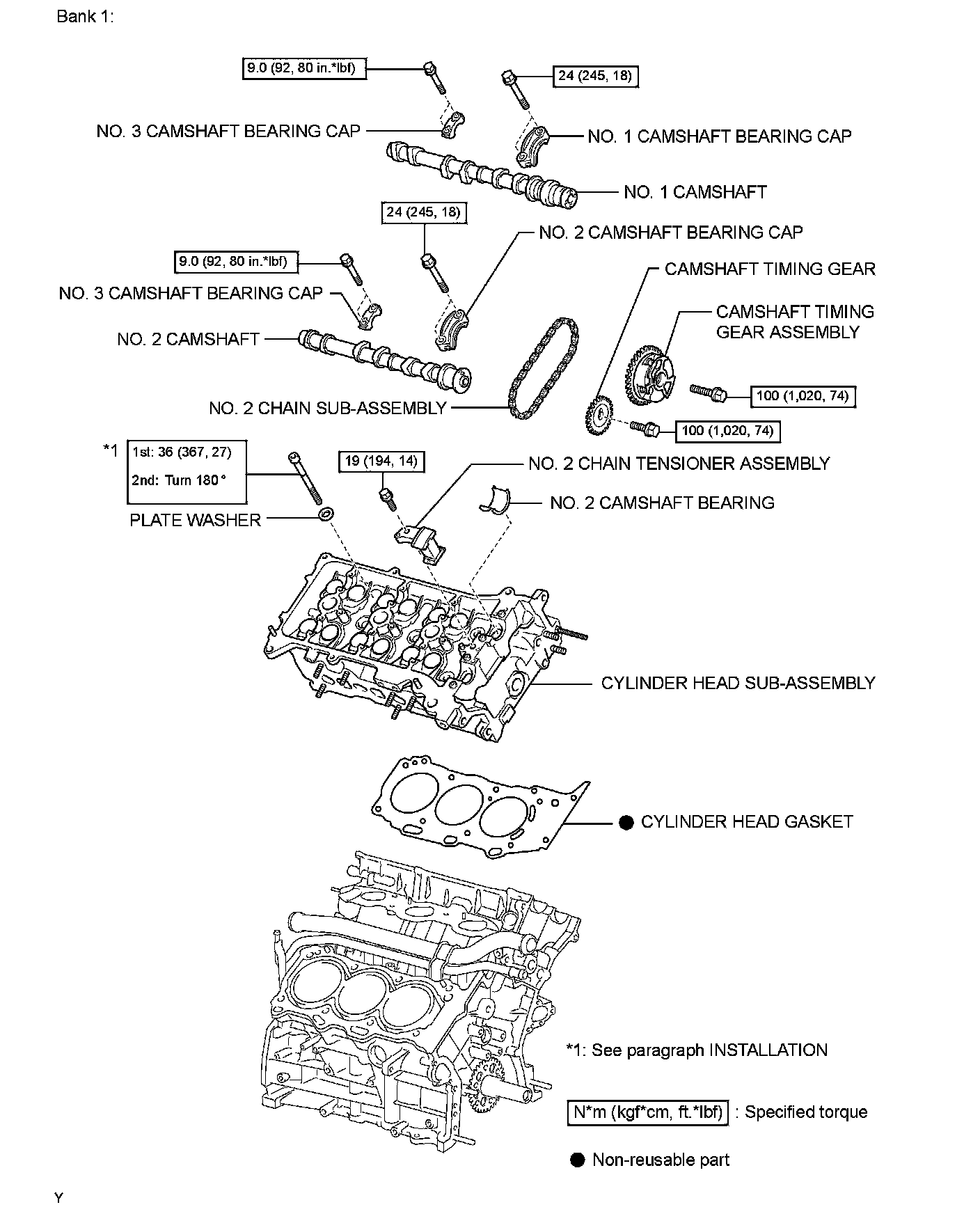

1GR-FE ENGINE MECHANICAL: CYLINDER HEAD: COMPONENTS

1GR-FE ENGINE MECHANICAL: CYLINDER HEAD: COMPONENTS
