Memory Positioning Systems

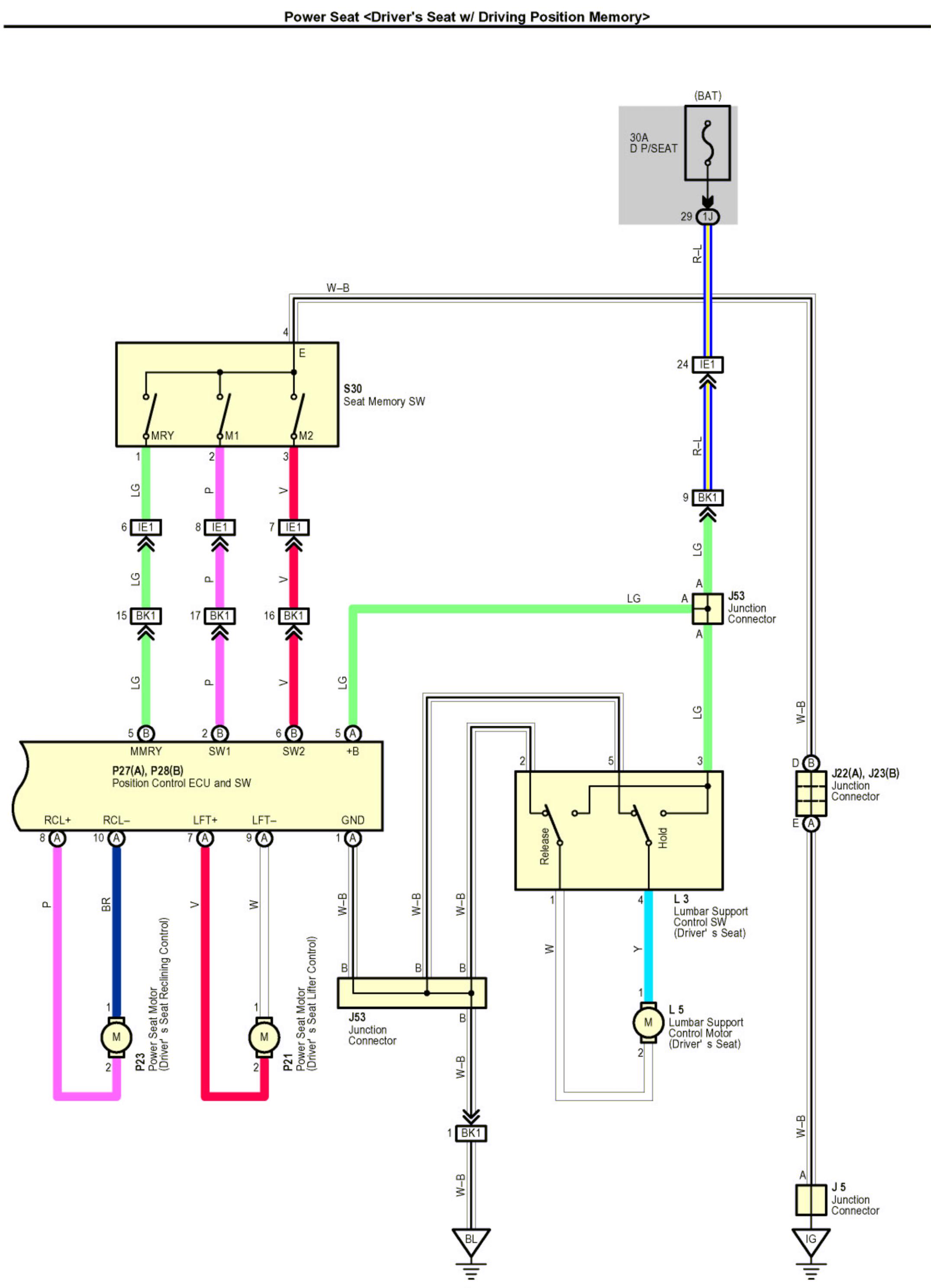

Power Seat <Driver's Seat w/ Driving Position Memory> Part 1:

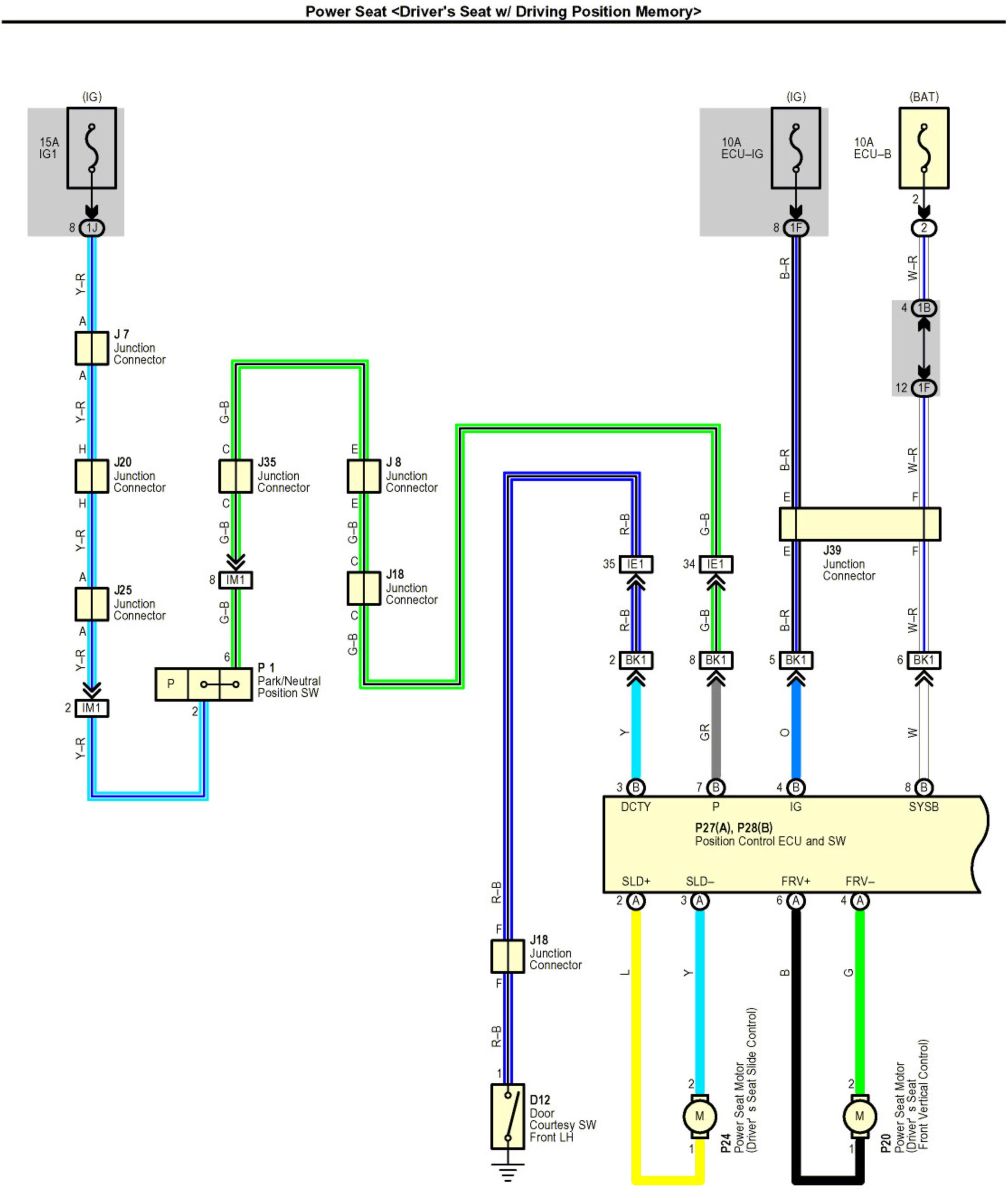

Power Seat <Driver's Seat w/ Driving Position Memory> Part 2:

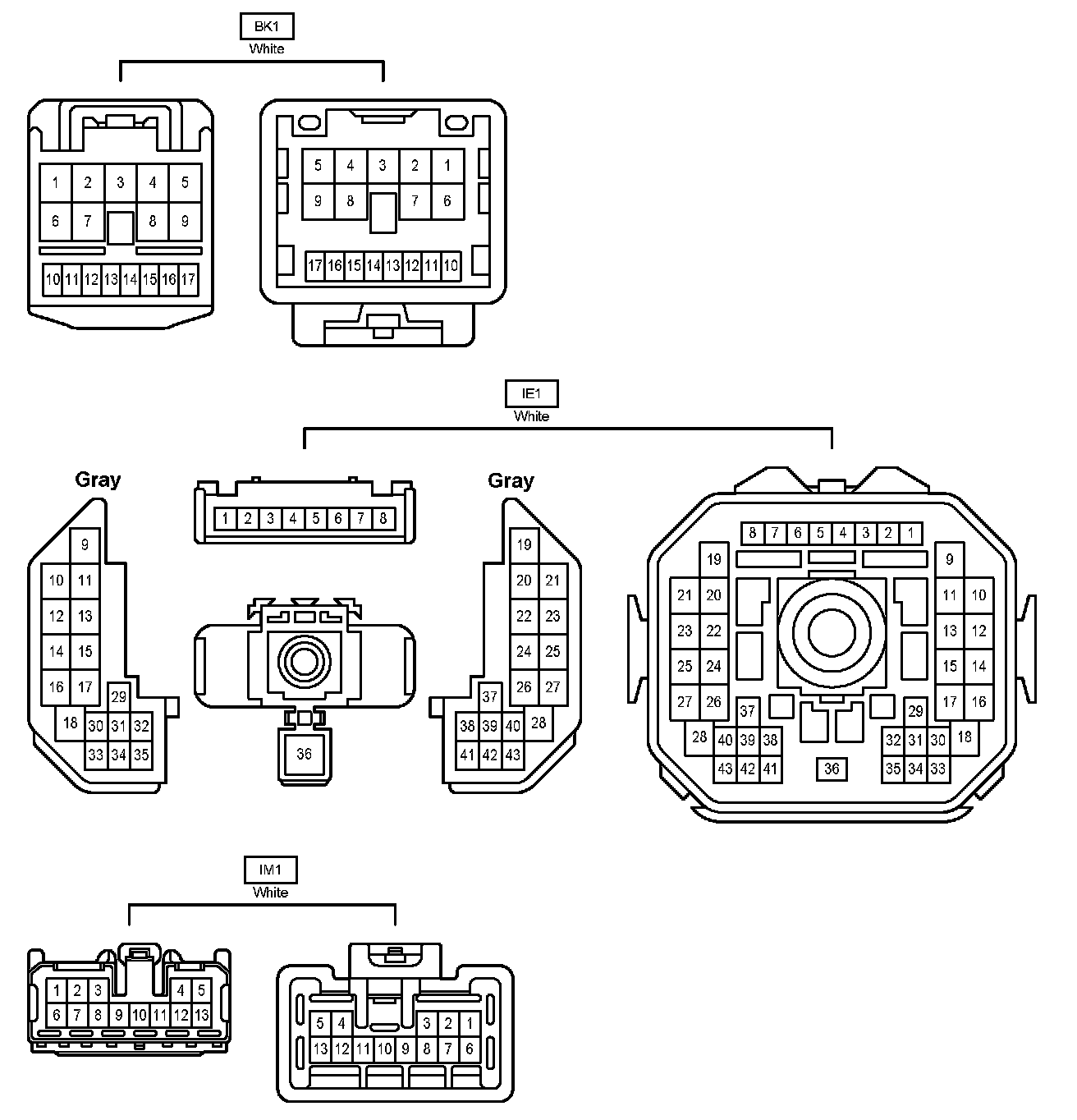

Connector Pin Outs Part 1:

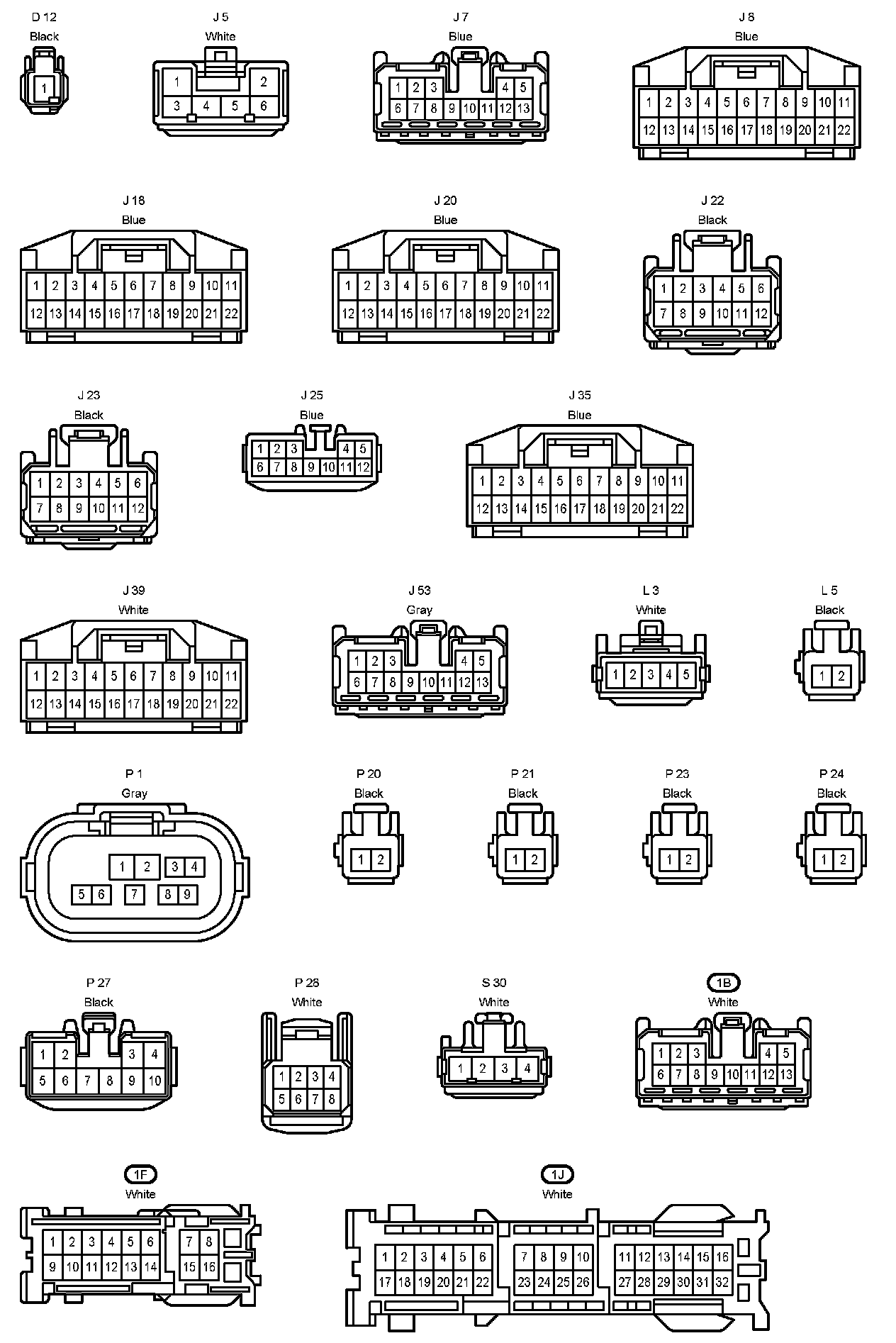

Connector Pin Outs Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
