Wheel Speed Sensor
Wheel Speed Sensor

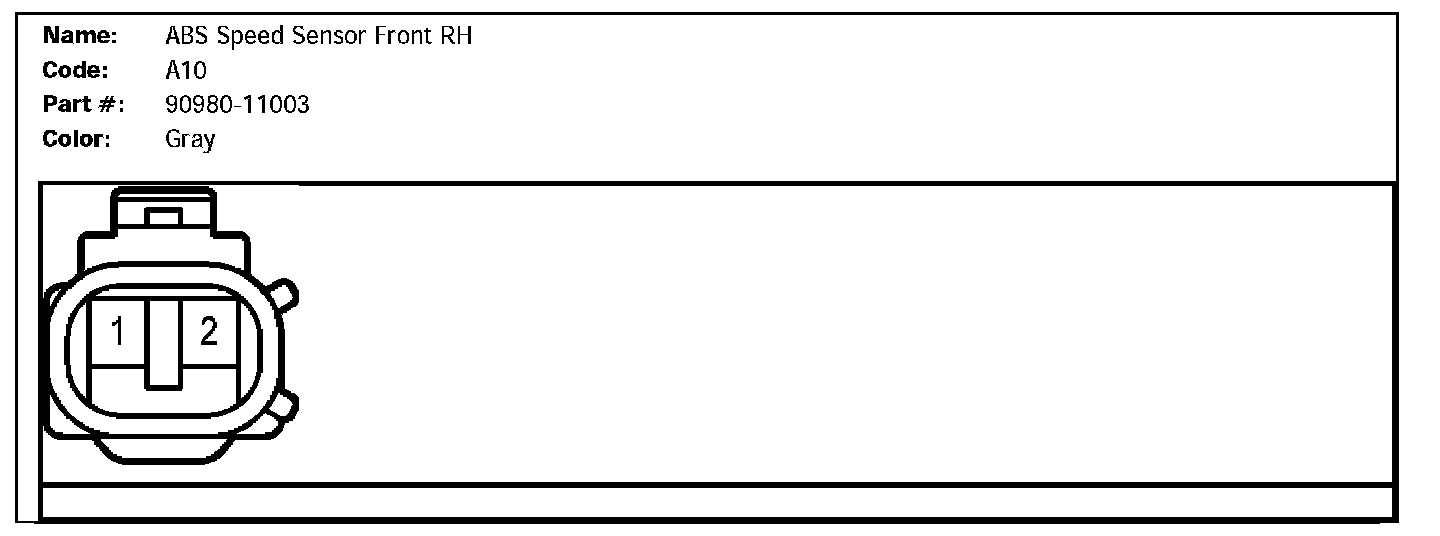

A10 (ABS Speed Sensor Front RH):

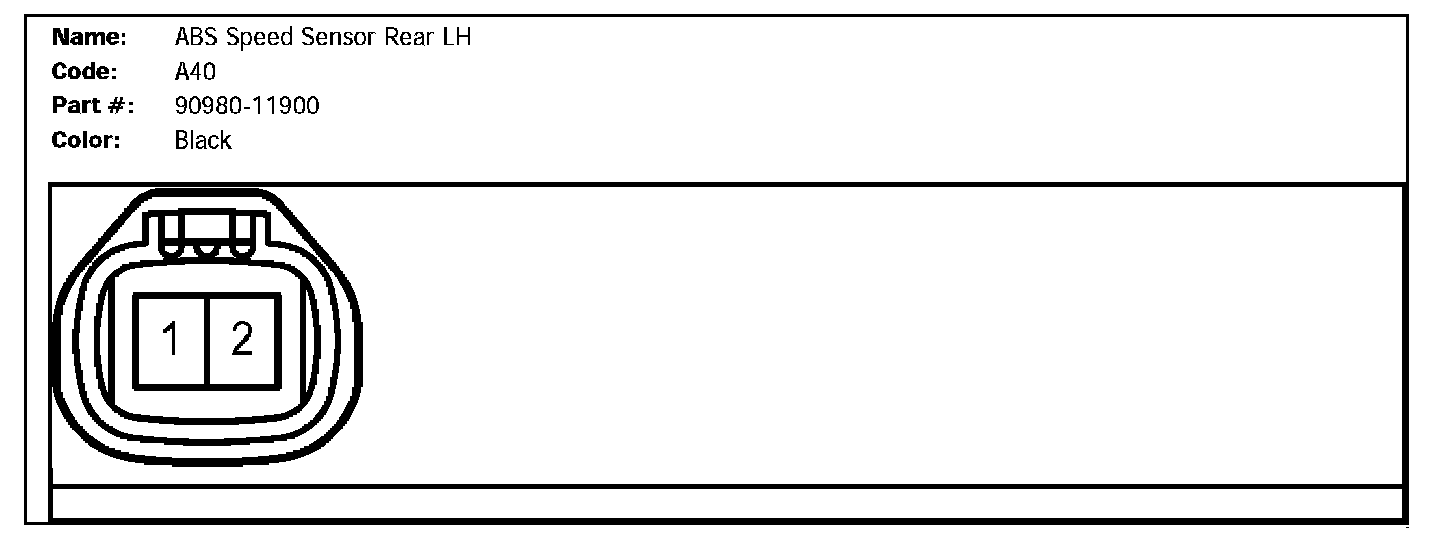

A40 (ABS Speed Sensor Rear LH):
A41 (ABS Speed Sensor Rear RH):

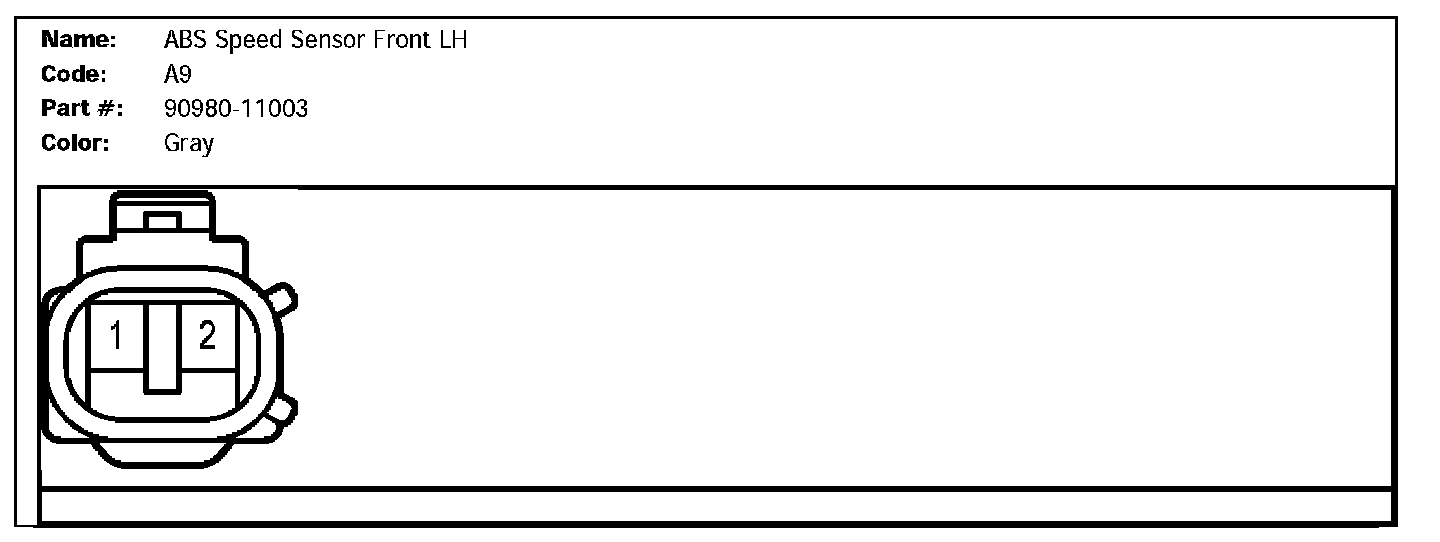

A9 (ABS Speed Sensor Front LH):
