Toyota Truck
>>
2008
>>
4 Runner 2WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Flasher
Turn Signal Flasher

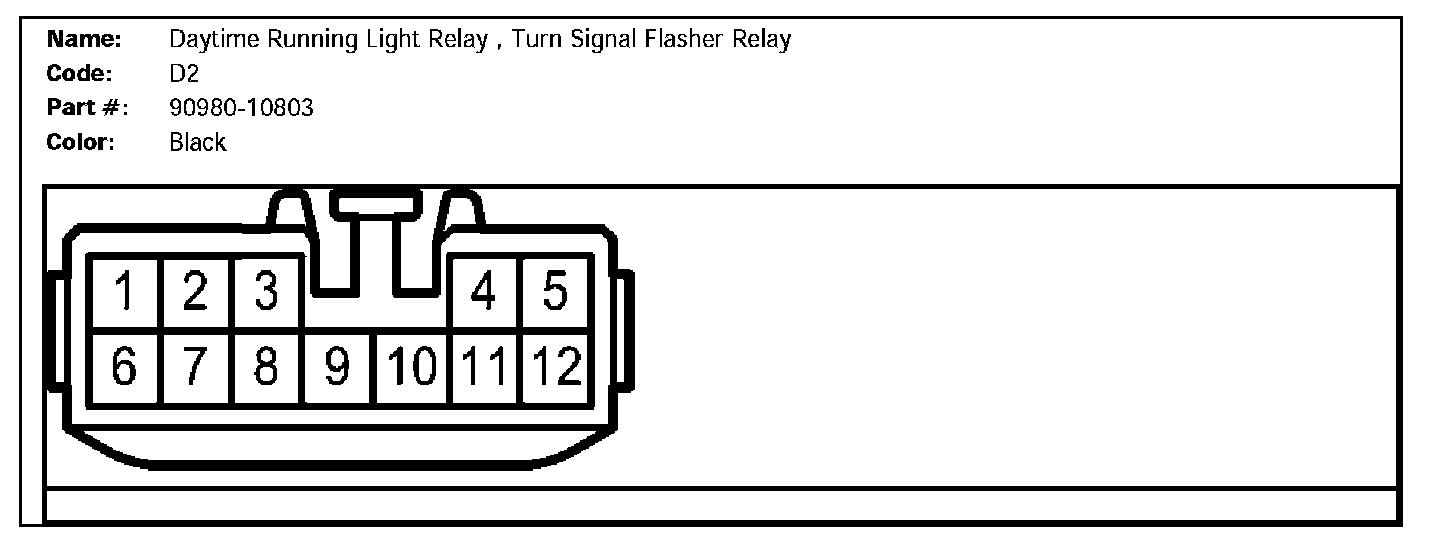

D2 (Daytime Running Light Relay, Turn Signal Flasher Relay):

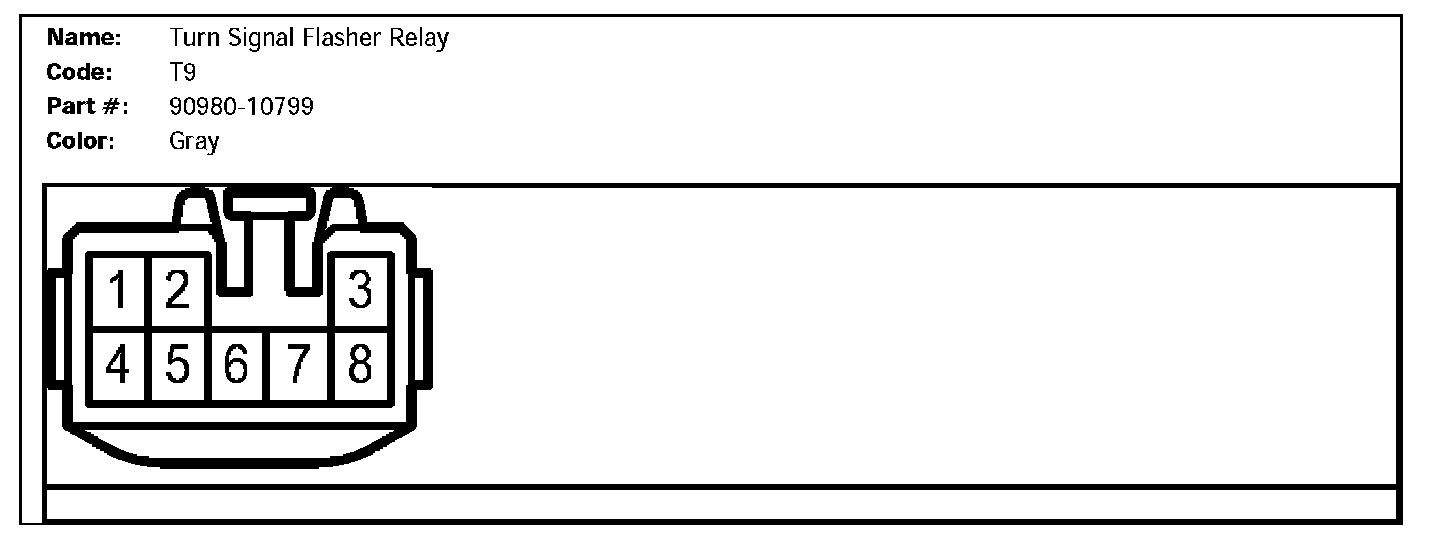

T9 (Turn Signal Flasher Relay):
