Toyota Truck
>>
2008
>>
4 Runner 2WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
Power Door Lock Switch

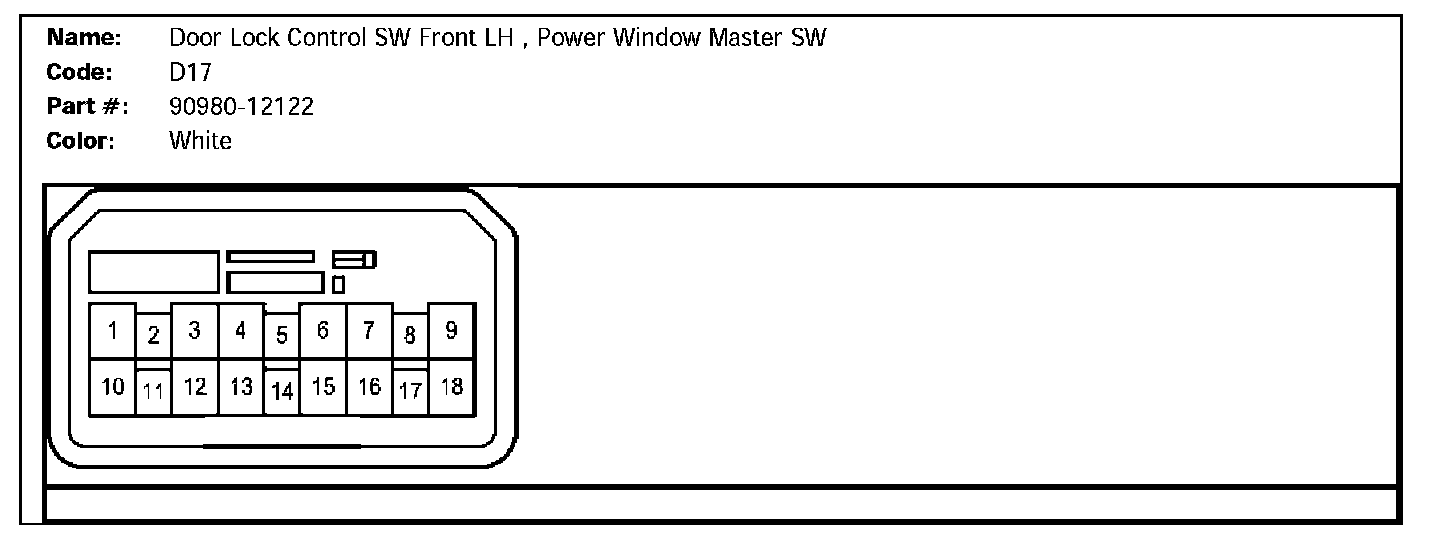

D17 (Door Lock Control SW Front LH, Power Window Master SW):

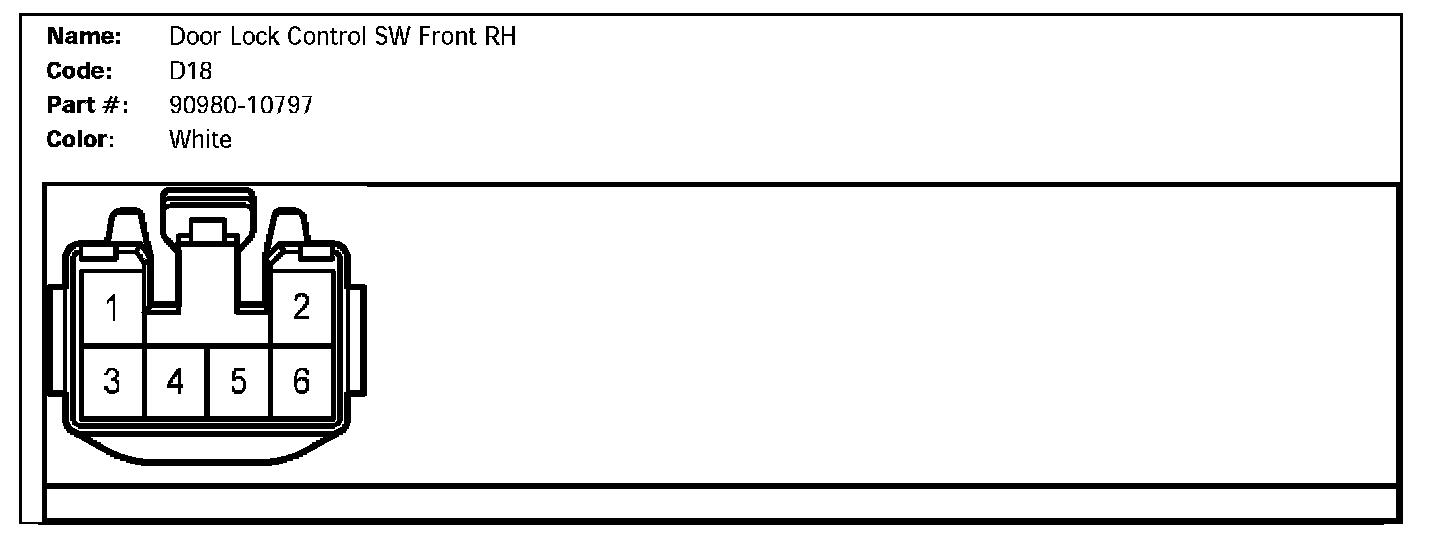

D18 (Door Lock Control SW Front RH):
