Toyota Truck
>>
2008
>>
4 Runner 2WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
Roof Wire
Roof Wire

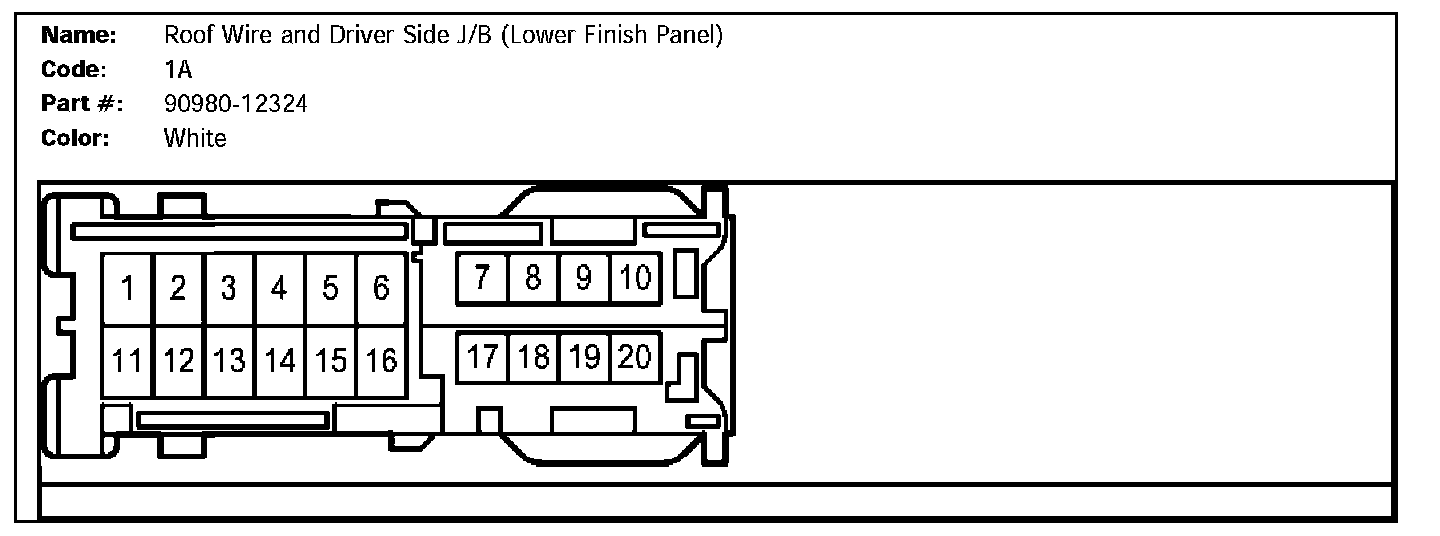

1A (Roof Wire And Driver Side J/B (Lower Finish Panel)):

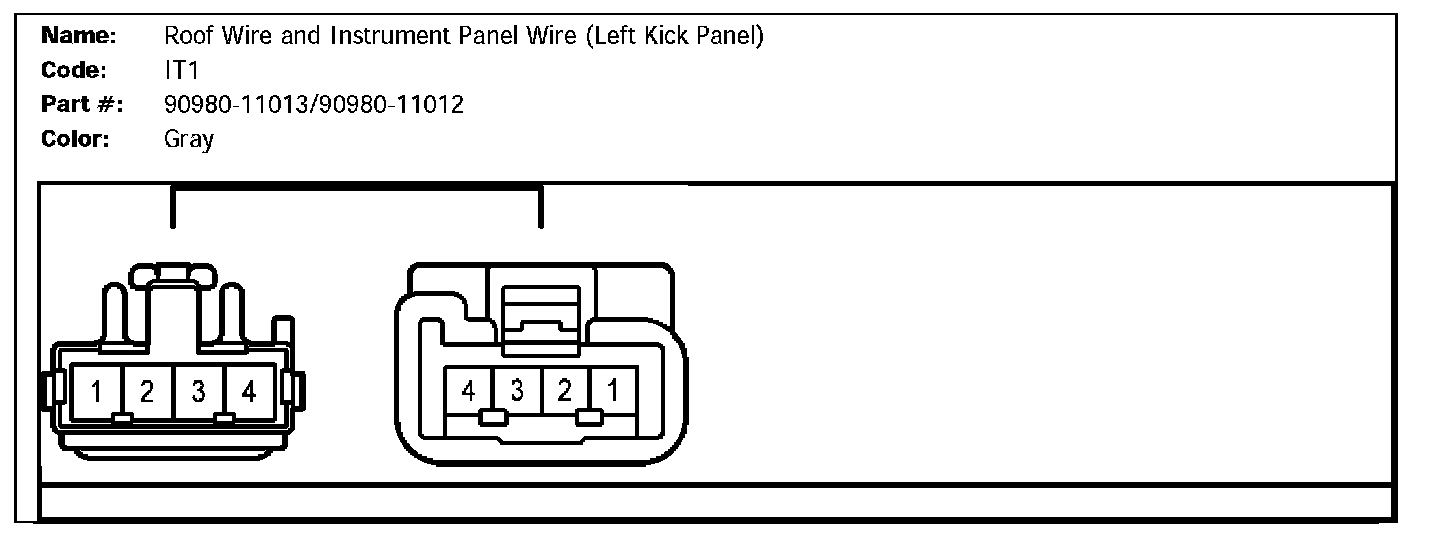

IT1 (Roof Wire And Instrument Panel Wire (Left Kick Panel)):
