Front Door Wire

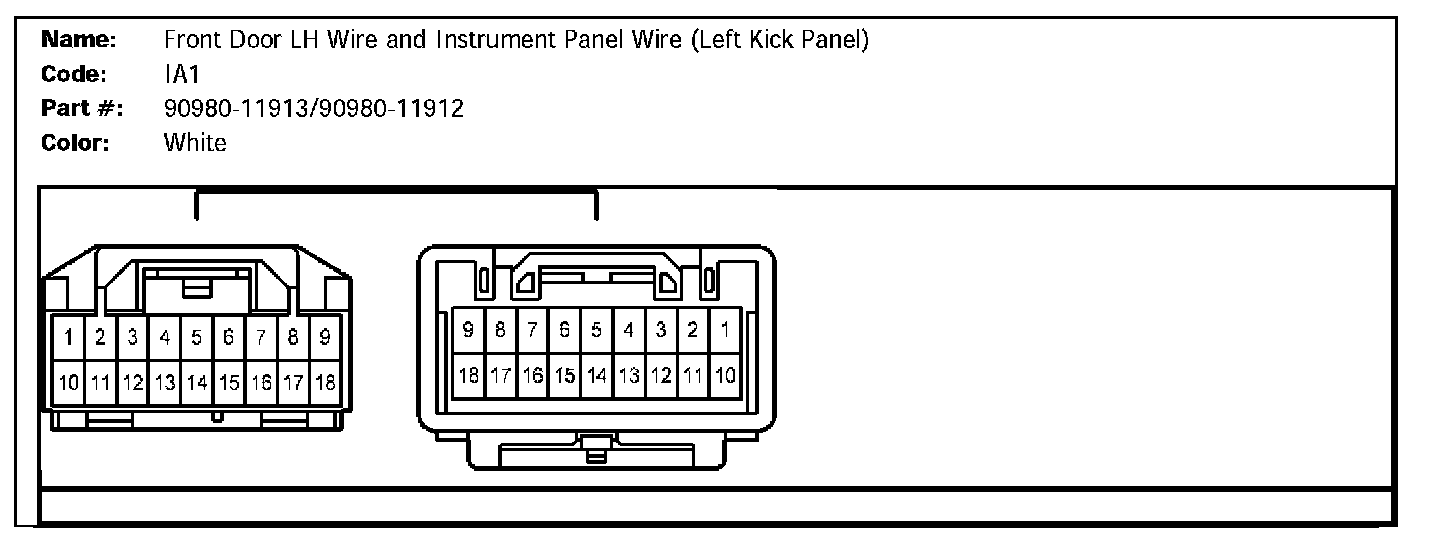

IA1 (Front Door LH Wire And Instrument Panel Wire (Left Kick Panel)):

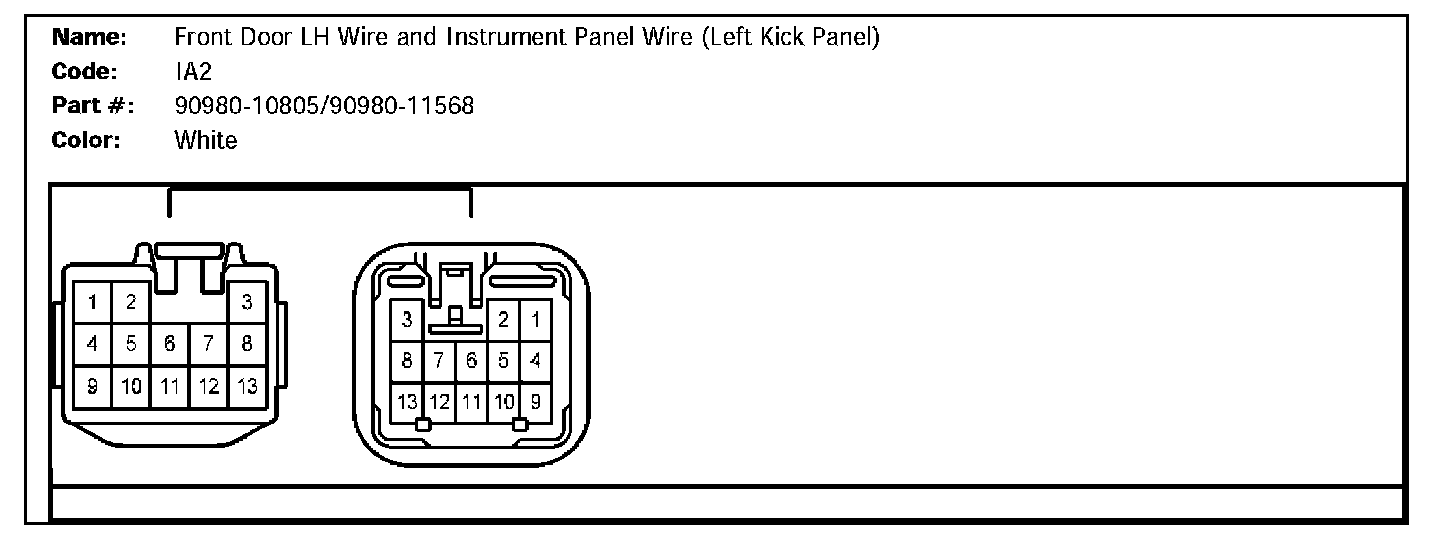

IA2 (Front Door LH Wire And Instrument Panel Wire (Left Kick Panel)):

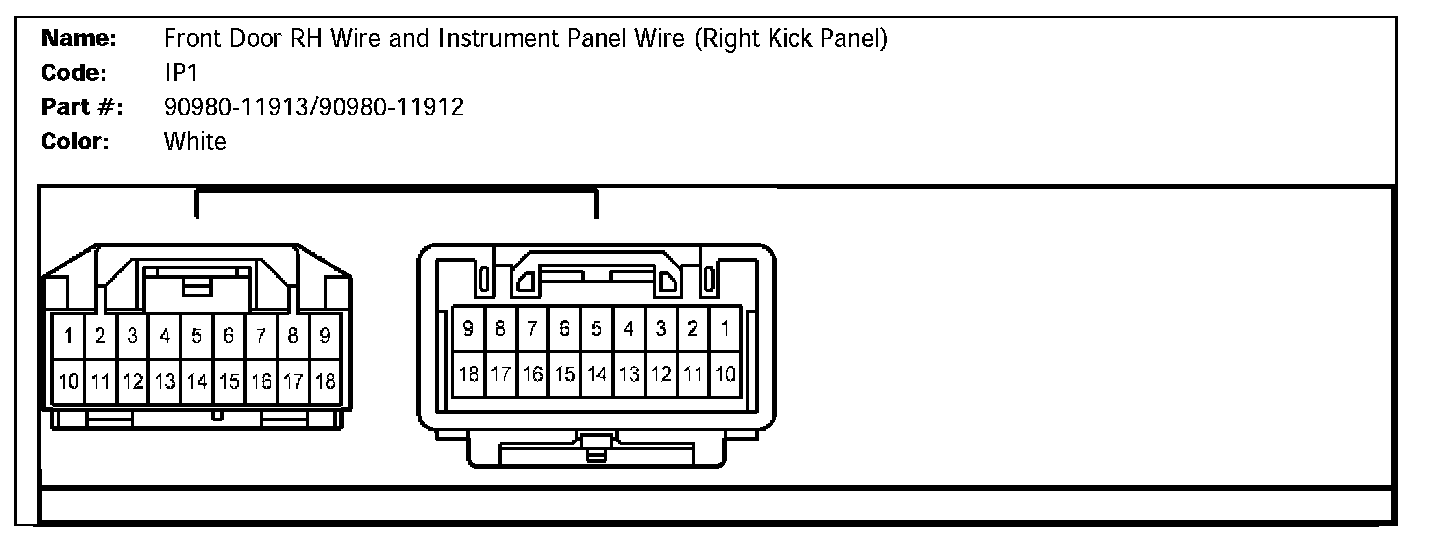

IP1 (Front Door RH Wire And Instrument Panel Wire (Right Kick Panel)):

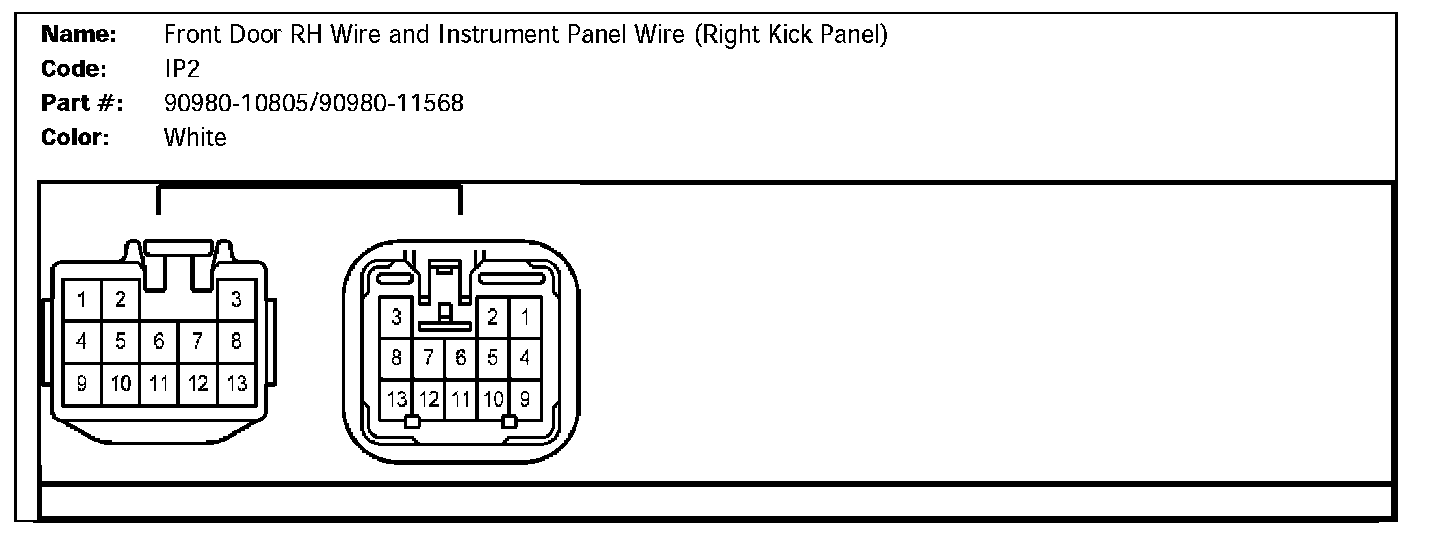

IP2 (Front Door RH Wire And Instrument Panel Wire (Right Kick Panel)):
