Engine Wire

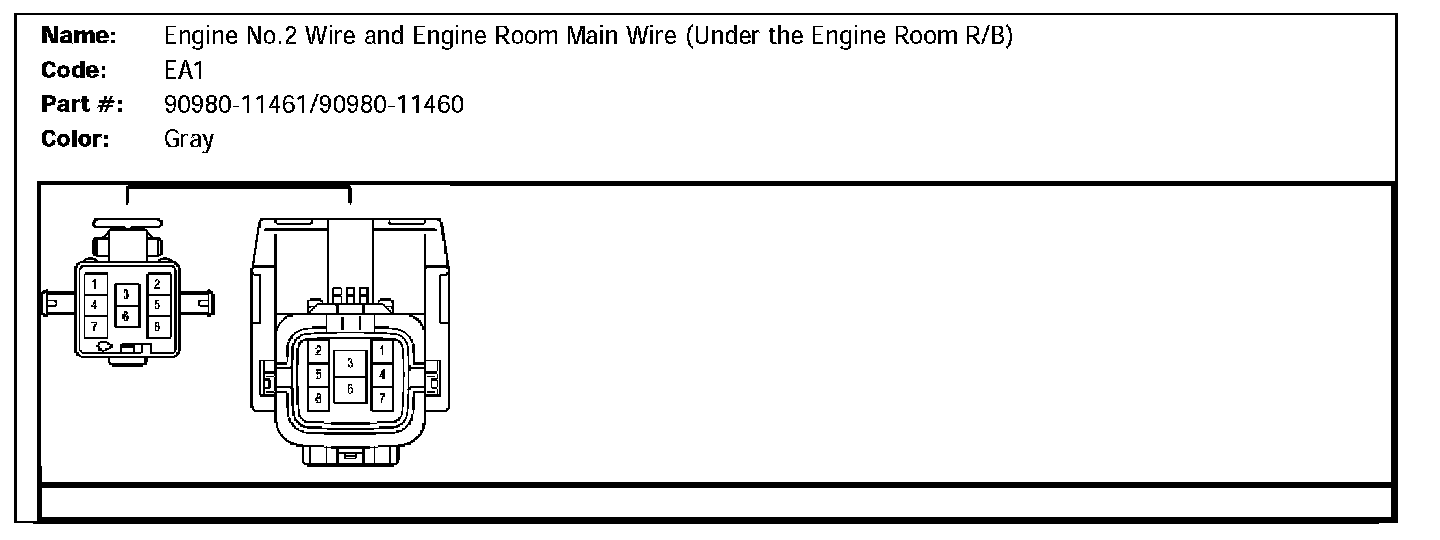

EA1 (Engine No.2 Wire And Engine Room Main Wire (Under The Engine Room R/B)):

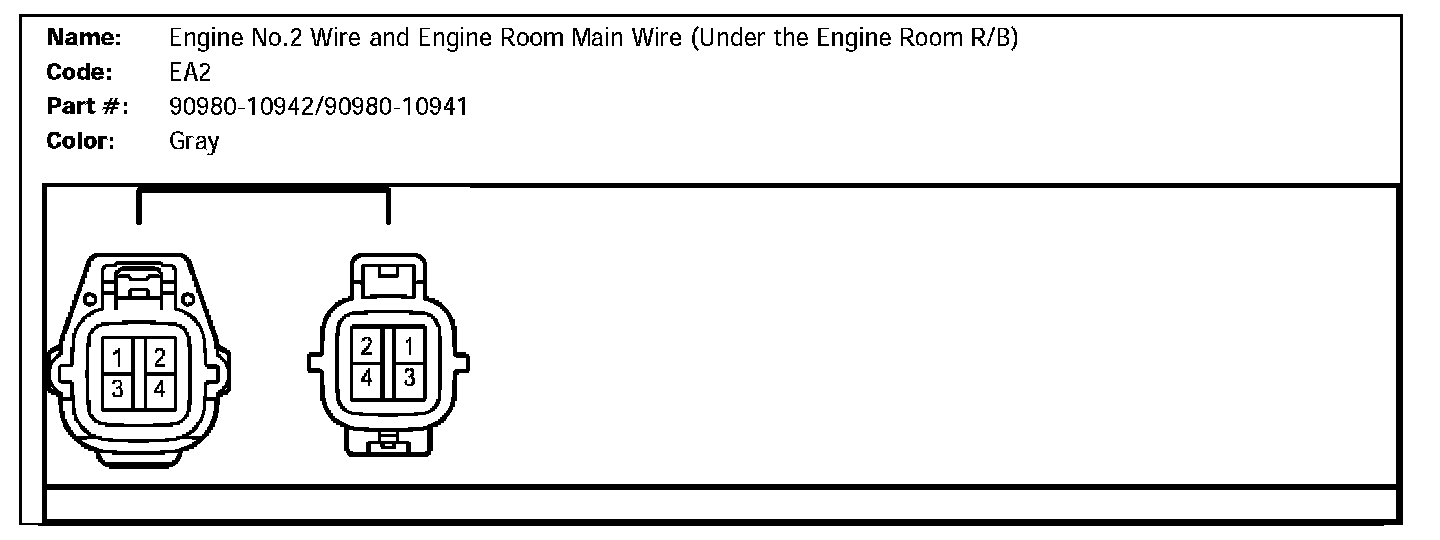

EA2 (Engine No.2 Wire And Engine Room Main Wire (Under The Engine Room R/B)):

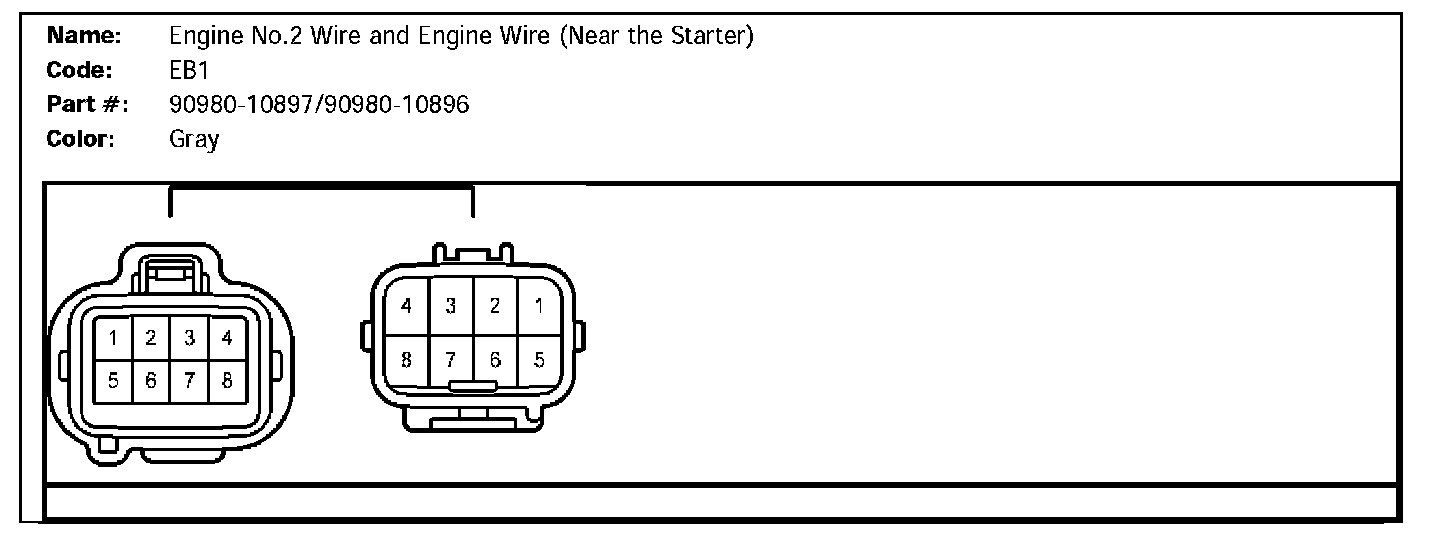

EB1 (Engine No.2 Wire And Engine Wire (Near The Starter)):

EB2 (Engine No.2 Wire And Engine Wire (Near The Starter)):

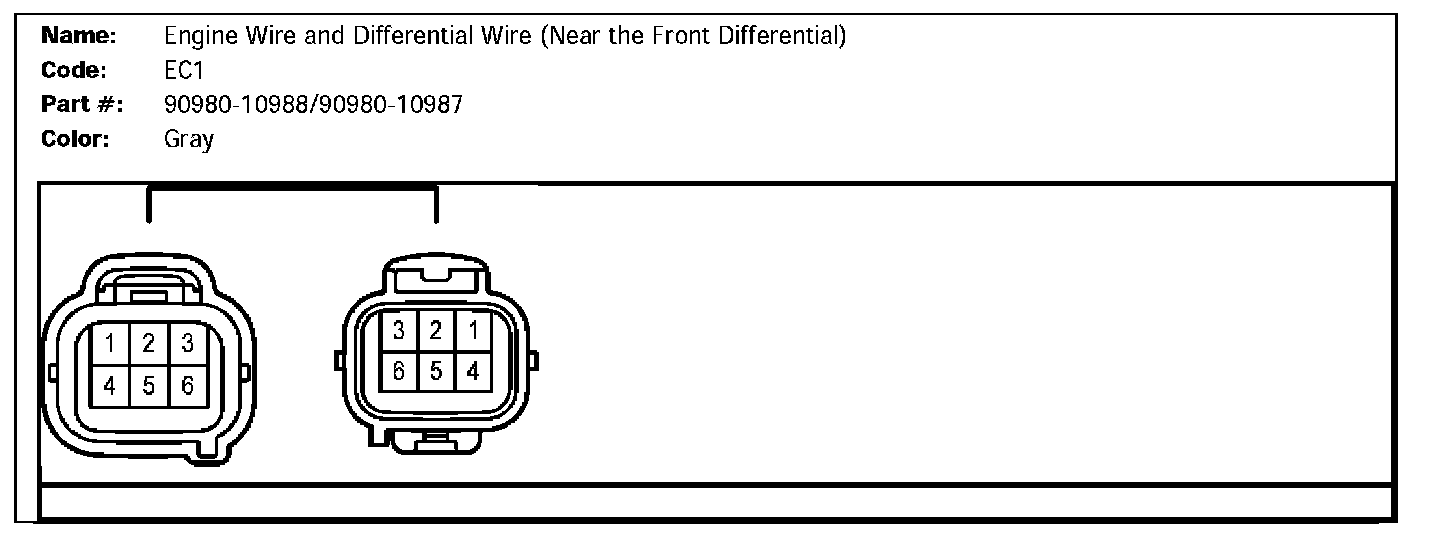

EC1 (Engine Wire And Differential Wire (Near The Front Differential)):

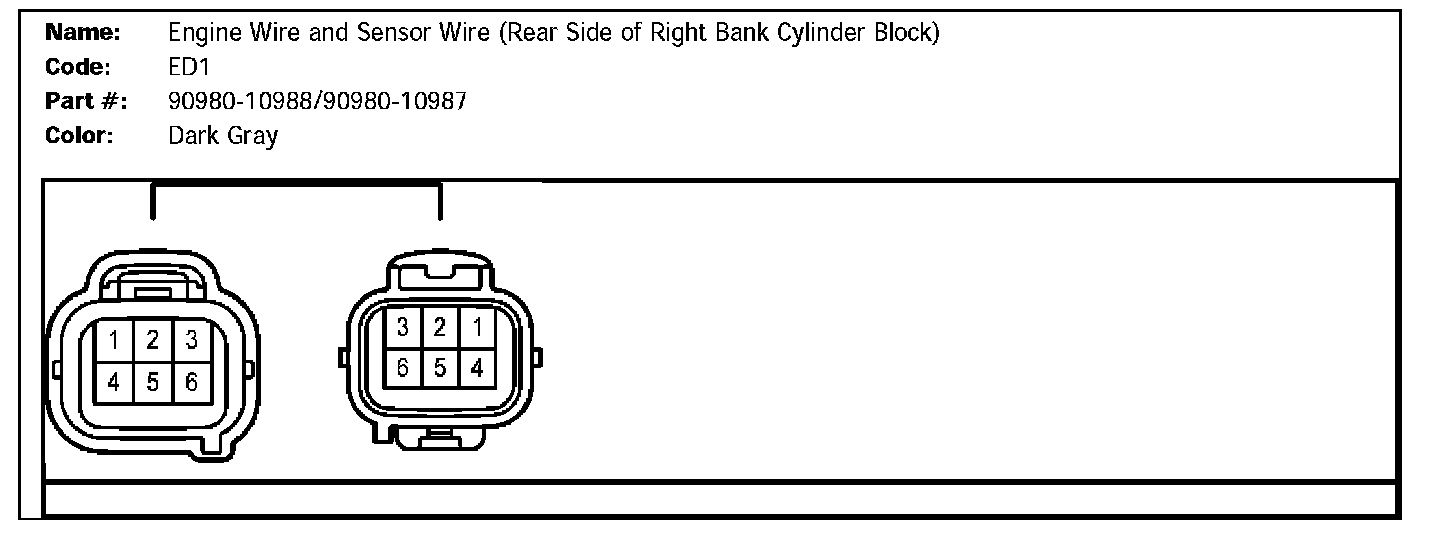

ED1 (Engine Wire And Sensor Wire (Rear Side Of Right Bank Cylinder Block)):

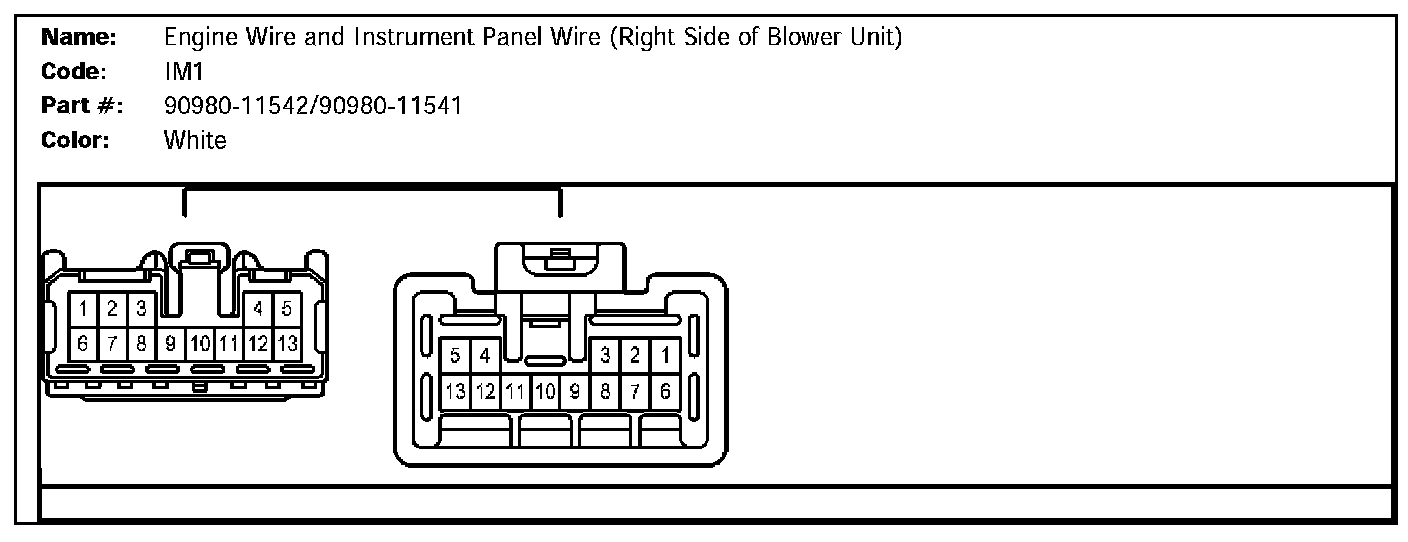

IM1 (Engine Wire And Instrument Panel Wire (Right Side Of Blower Unit)):

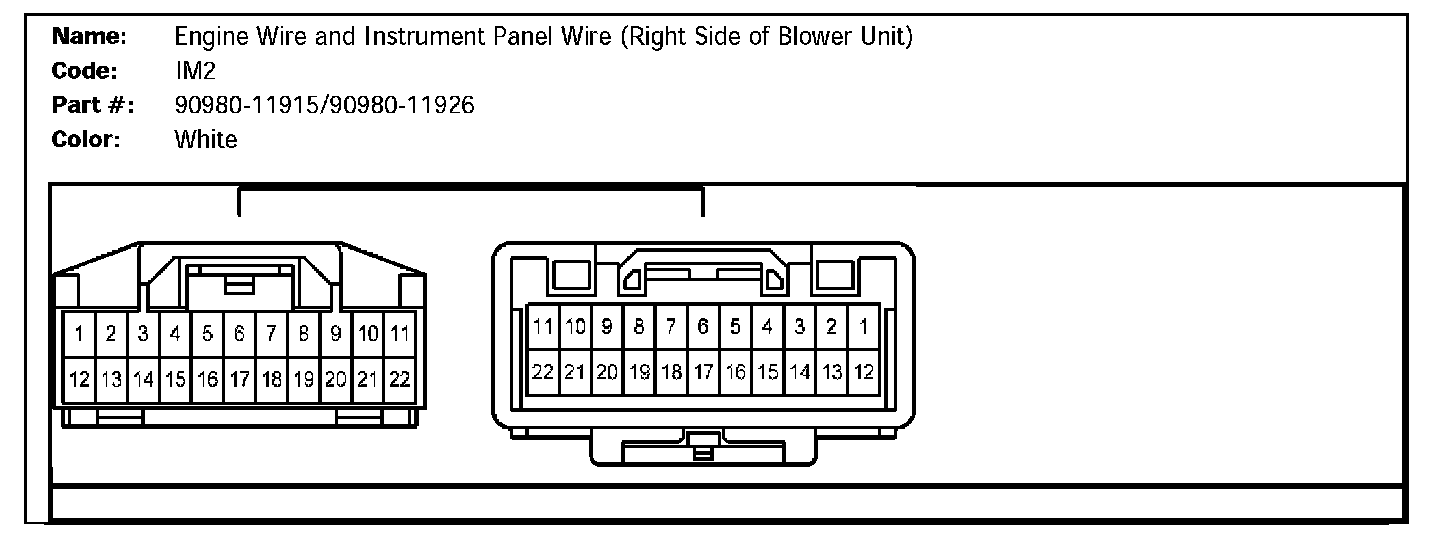

IM2 (Engine Wire And Instrument Panel Wire (Right Side Of Blower Unit)):
