Engine Room Main Wire

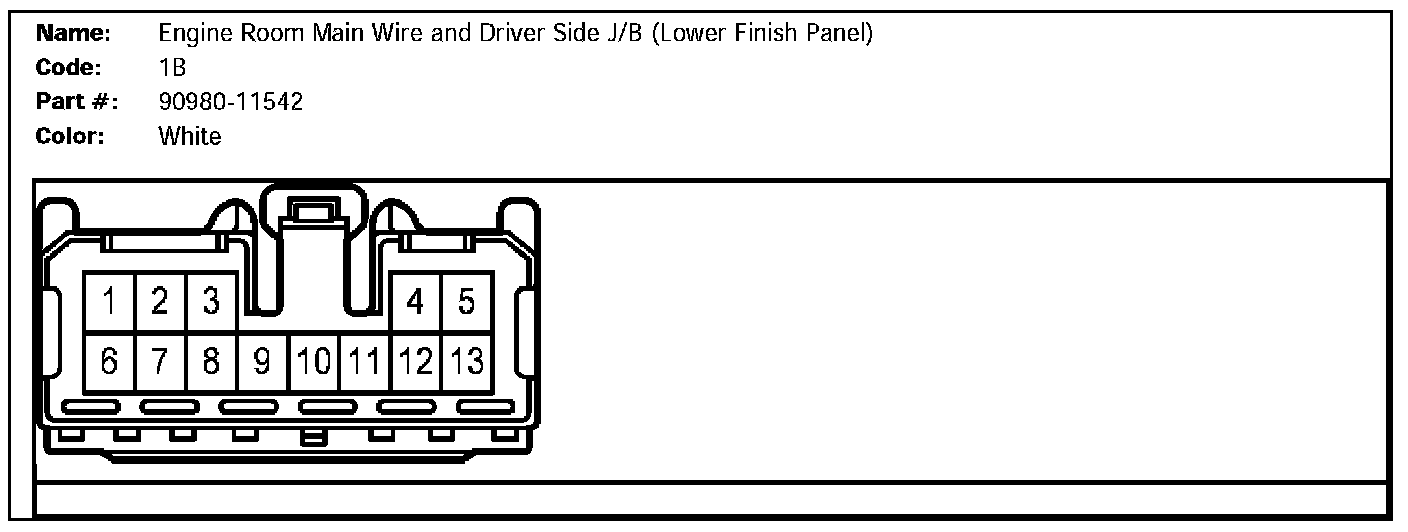

1B (Engine Room Main Wire And Driver Side J/B (Lower Finish Panel)):

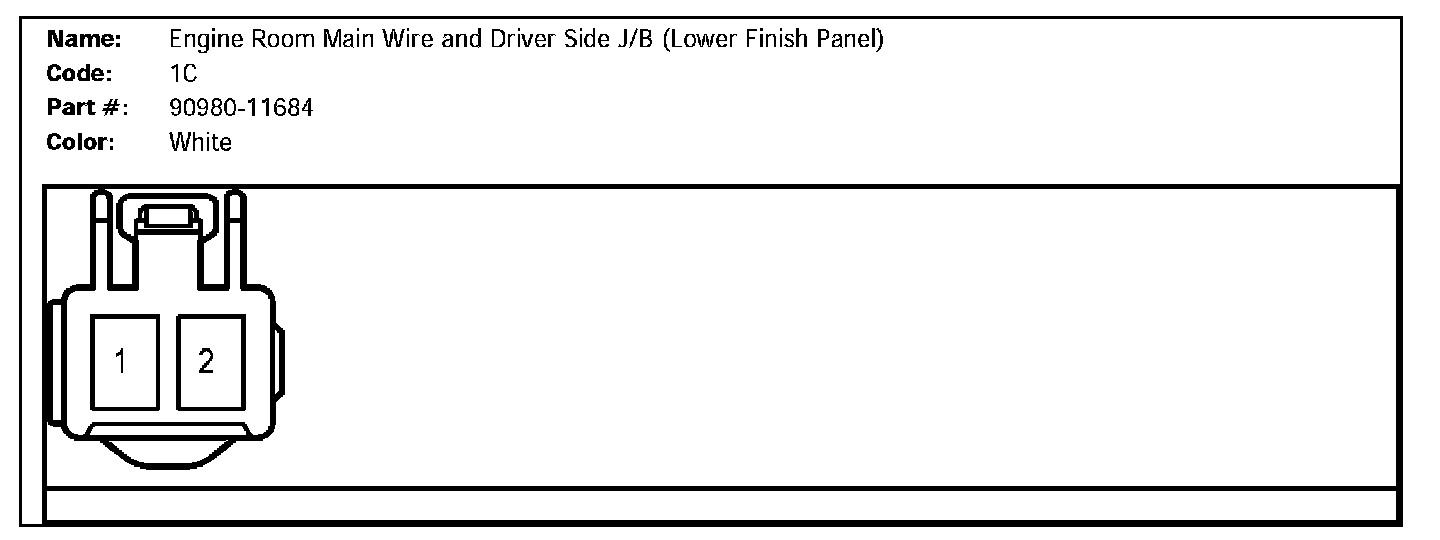

1C (Engine Room Main Wire And Driver Side J/B (Lower Finish Panel)):

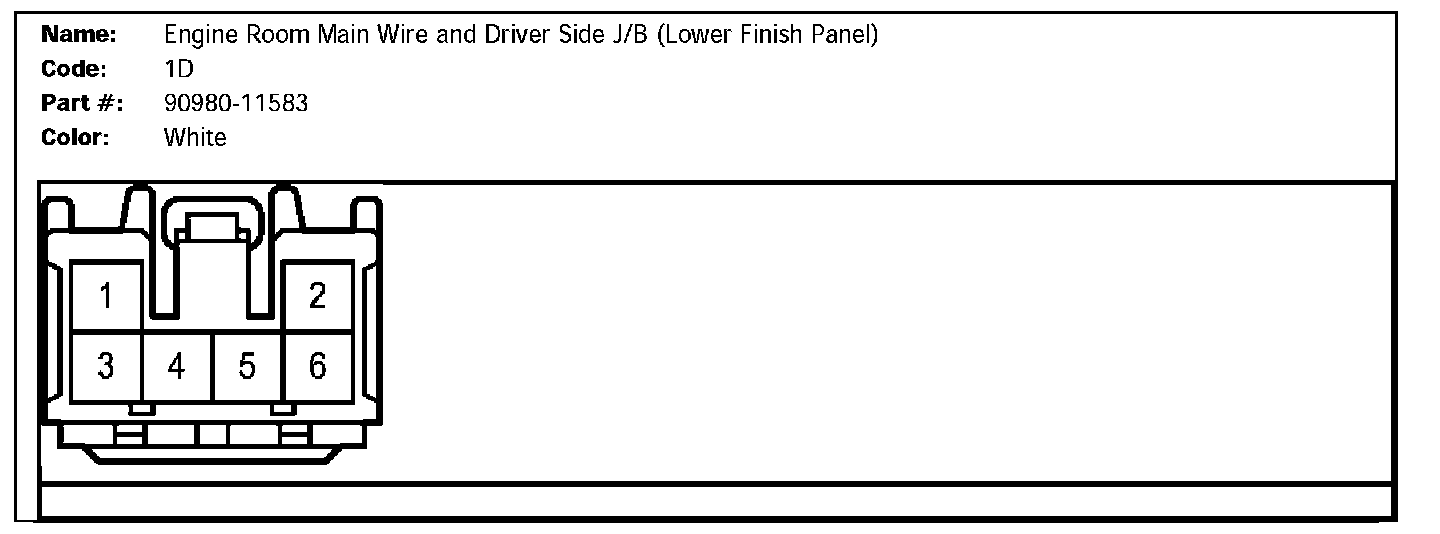

1D (Engine Room Main Wire And Driver Side J/B (Lower Finish Panel)):

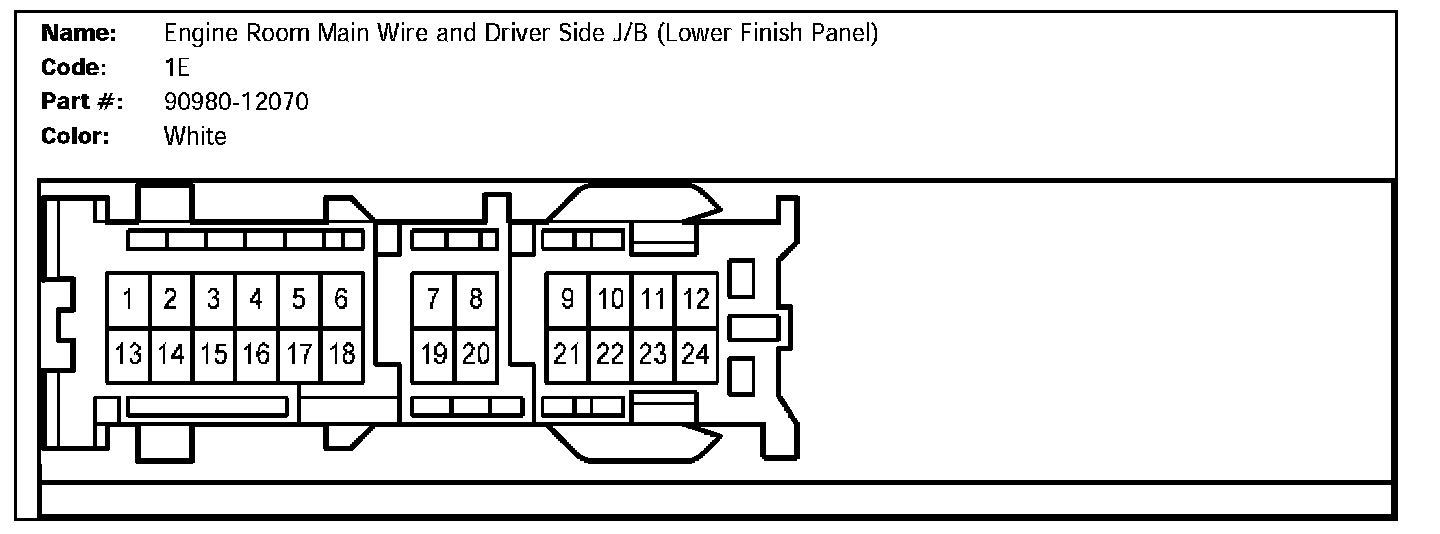

1E (Engine Room Main Wire And Driver Side J/B (Lower Finish Panel)):
