Canister Purge Control Valve
Canister Purge Control Valve

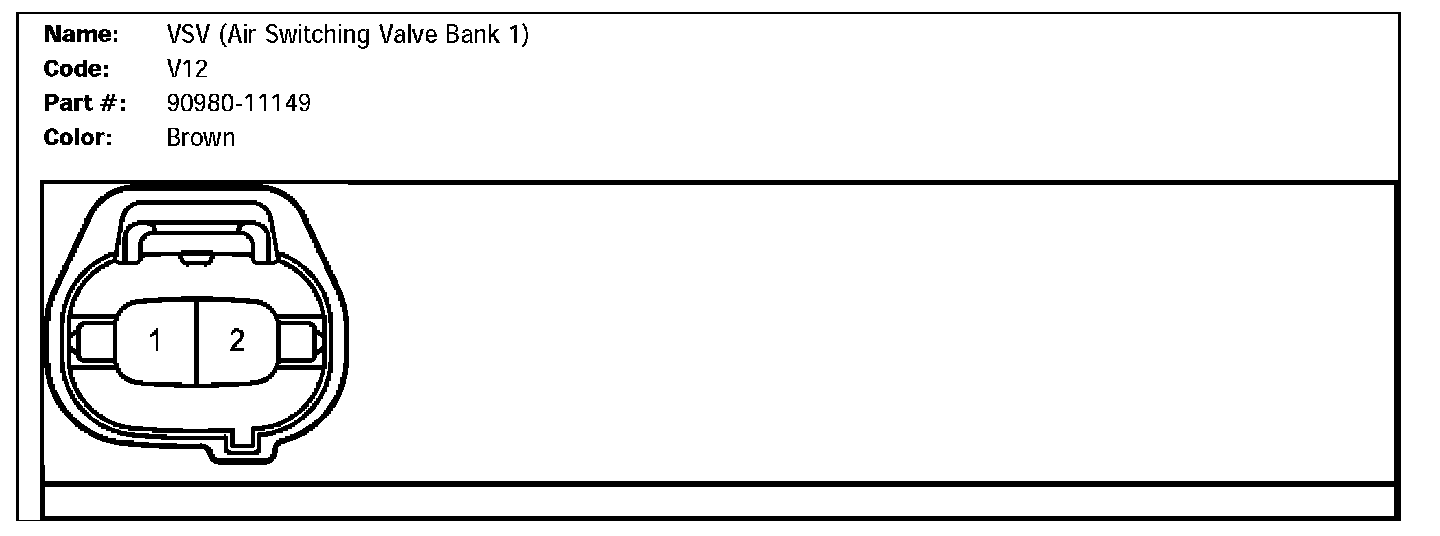

V12 (VSV (Air Switching Valve Bank 1)):

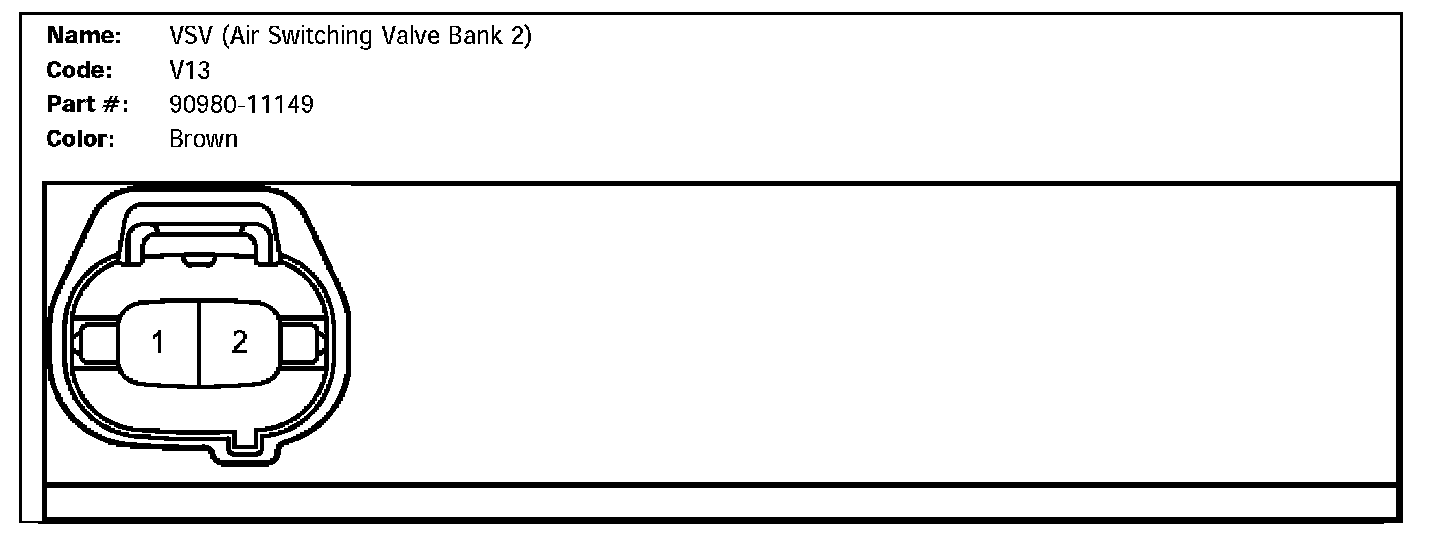

V13 (VSV (Air Switching Valve Bank 2)):

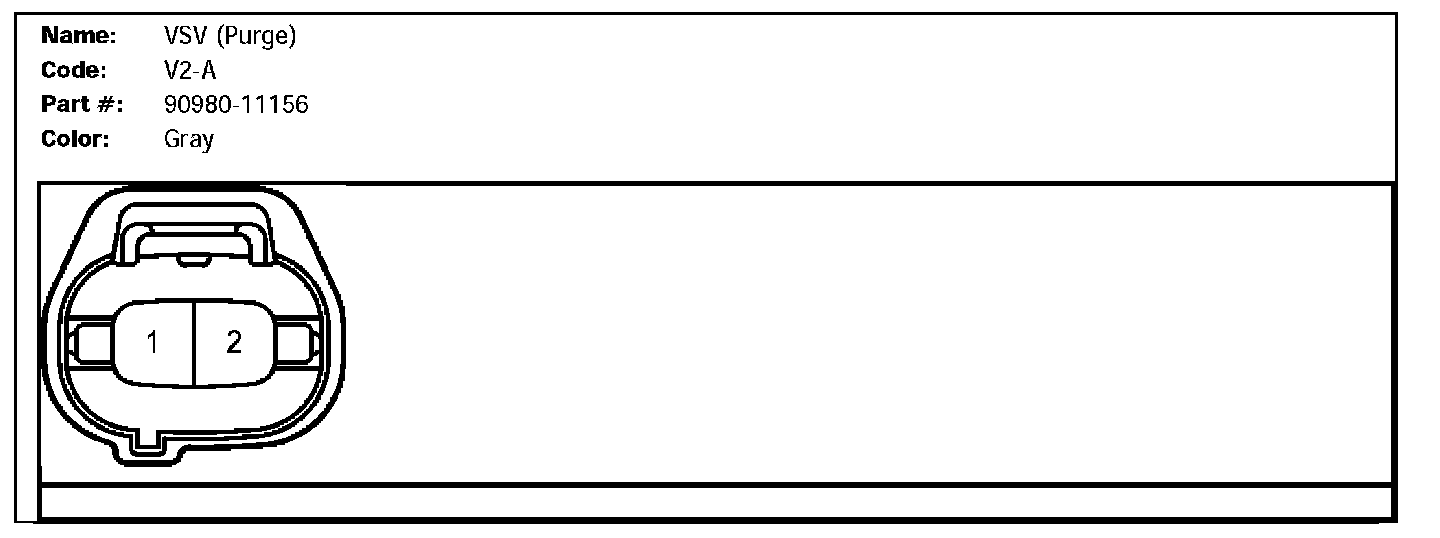

V2-A (VSV (Purge)):

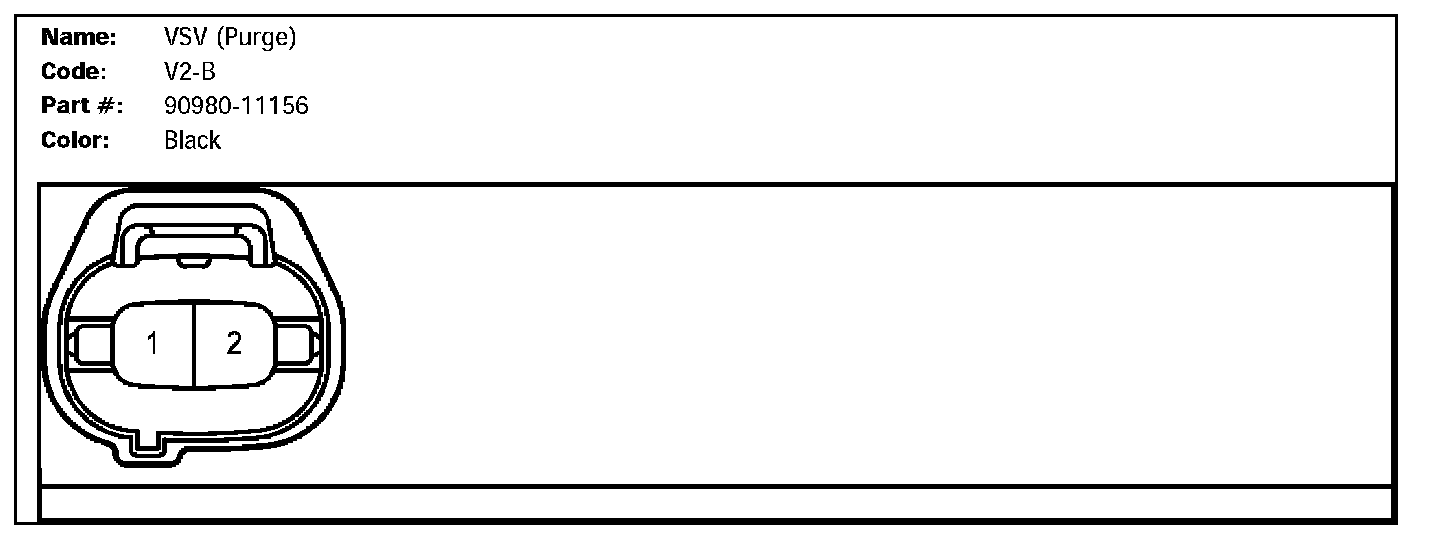

V2-B (VSV (Purge)):
