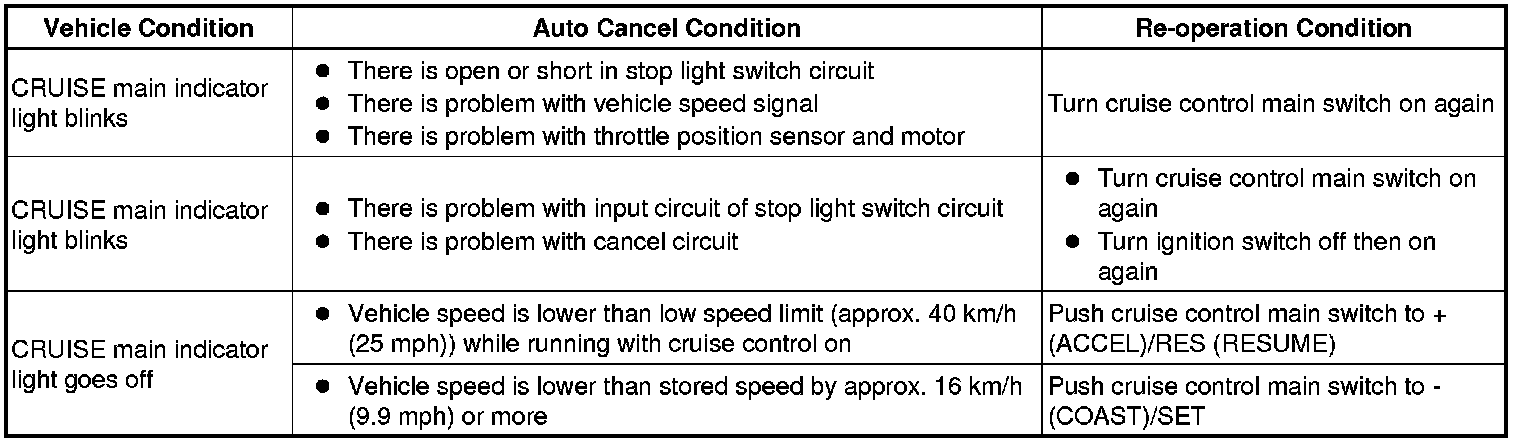

CRUISE CONTROL SYSTEM: FAIL-SAFE CHART

CRUISE CONTROL SYSTEM: FAIL-SAFE CHART
HINT: If the following conditions are detected while the cruise control is in operation, the system clears the stored vehicle speed in the ECM and cancels the cruise control operation.
