BRAKE: FRONT BRAKE: INSTALLATION

BRAKE: FRONT BRAKE: INSTALLATION

1. INSTALL FRONT DISC
(a) Aligning the matchmarks, install the front disc.
HINT: When replacing the disc with a new one, select the installation position where the disc has the minimum runout.

2. INSPECT DISC RUNOUT Front Brake

3. INSTALL DISC BRAKE CYLINDER ASSEMBLY LH

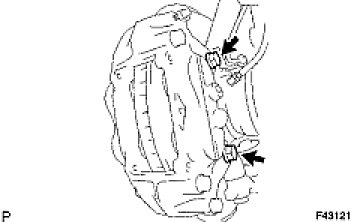

(a) Install the disc brake cylinder assembly with 2 bolts.
Torque: 123 Nm (1254 kgf-cm, 91 ft-lbf)

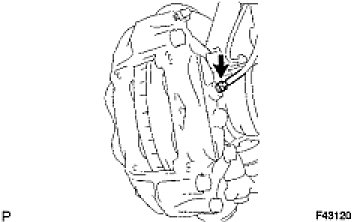

(b) Using a union nut wrench, connect the brake tube to the disc brake cylinder assembly.
Torque: 15.2 Nm (155 kgf-cm, 11 ft-lbf)
4. INSTALL ANTI SQUEAL SHIM KIT FRONT
NOTICE: If necessary, replace the anti-squeal shim kit when replacing the brake pad.

(a) Install the anti-squeal shims on each brake pads.
NOTICE: There should be no oil or grease on the friction surfaces of the brake pads and the front disc.

5. INSTALL DISC BRAKE PAD KIT FRONT (PAD ONLY)
(a) Install the 2 disc brake pads with anti-squeal shim to the disc brake cylinder assembly.
6. INSTALL FRONT DISC BRAKE ANTIRATTLE W/HOLE PIN
(a) Install the 2 anti-rattle w/ hole pins and anti-rattle spring to the disc brake cylinder.
HINT: Anti-rattle spring is installed with bottom side of anti-rattle w/ hole pin.

(b) Install the 2 new pin hole clips to the anti-rattle w/ hole pin.
NOTICE: When installing the pin hole clip, be sure to install the pin hole clip with the handle facing to the vehicle center.

7. FILL RESERVOIR WITH BRAKE FLUID
8. BLEED BRAKE LINE
HINT: Service and Repair

9. CHECK FLUID LEVEL IN RESERVOIR
10. CHECK BRAKE FLUID LEAKAGE
11. INSTALL FRONT WHEEL
Torque: 112 Nm (1137 kgf-cm, 82 ft-lbf)
