Installation

BRAKE CONTROL: REAR SPEED SENSOR: INSTALLATION

BRAKE CONTROL: REAR SPEED SENSOR: INSTALLATION

1. INSTALL REAR SPEED SENSOR LH

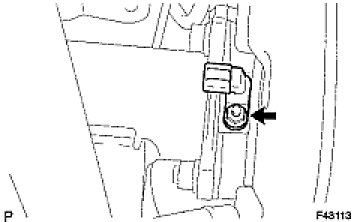

(a) Install the rear speed sensor to the axle hub with the nut.
Torque: 8.3 Nm (85 kgf-cm, 73 in-lbf)
NOTICE: Make sure the sensor tip is clean.





(b) Connect the rear speed sensor connector.
2. INSTALL REAR WHEEL
Torque: 112 Nm (1137 kgf-cm, 82 ft-lbf)
3. CHECK SPEED SENSOR SIGNAL
HINT: Check the speed sensor signal Test Mode Procedure.
