Removal

BRAKE CONTROL: VSC OFF SWITCH: REMOVAL

BRAKE CONTROL: VSC OFF SWITCH: REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH Removal

2. REMOVE VSC OFF SWITCH
(a) Disconnect the VSC OFF switch connector.

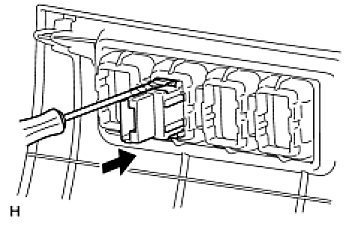

(b) Using a screwdriver, detach the 2 claws and remove the VSC OFF switch from the lower instrument panel finish panel LH.
HINT: Tape the screwdriver tip before use.
