BRAKE CONTROL: VSC OFF SWITCH: INSTALLATION

BRAKE CONTROL: VSC OFF SWITCH: INSTALLATION

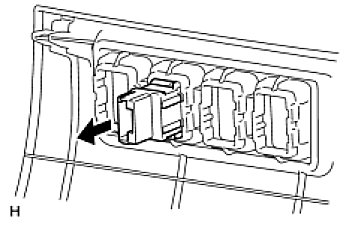

1. INSTALL VSC OFF SWITCH






(a) Attach the 2 claws to install the VSC OFF switch into the lower instrument panel finish panel LH.
(b) Connect the VSC OFF switch connector.

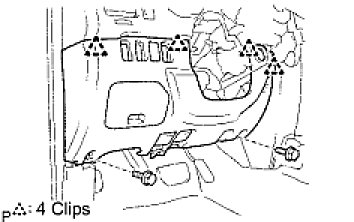

2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
(a) Connect the connector.






(b) Attach the 4clips
(c) Install the hood lock control cable and fuel lid control cable.
(d) Install the 2 bolts.
