Installation

MIRROR: OUTER REAR VIEW MIRROR: INSTALLATION

MIRROR: OUTER REAR VIEW MIRROR: INSTALLATION

1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH

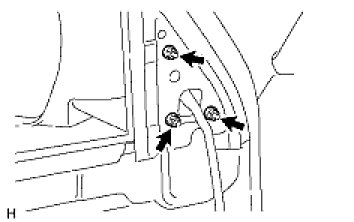

(a) Install the mirror with the 3 nuts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
(b) Connect the connector.
