Power Mirror Switch: Testing and Inspection

MIRROR: OUTER MIRROR SWITCH: INSPECTION

MIRROR: OUTER MIRROR SWITCH: INSPECTION

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY

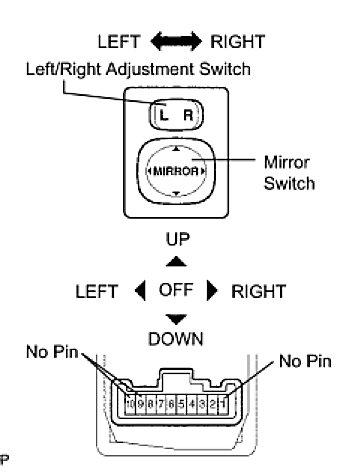

(a) Inspect the outer mirror switch.
(1) Measure the resistance according to the value(s) in the table below when the switch is operated.
Resistance:

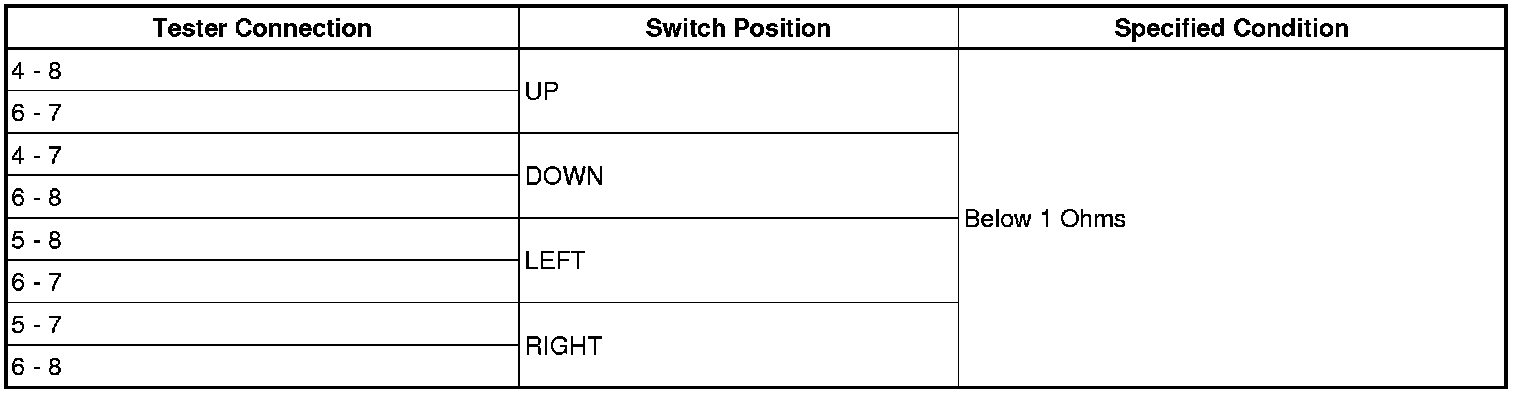

Select "L" on the left/right adjustment switch

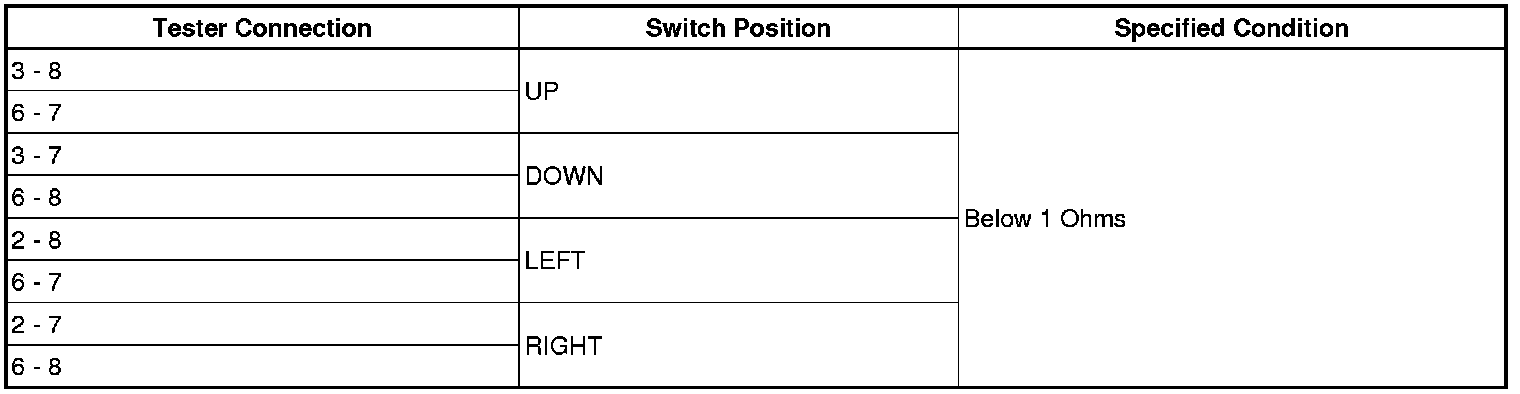

Select "R" on the left/right adjustment switch
