DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

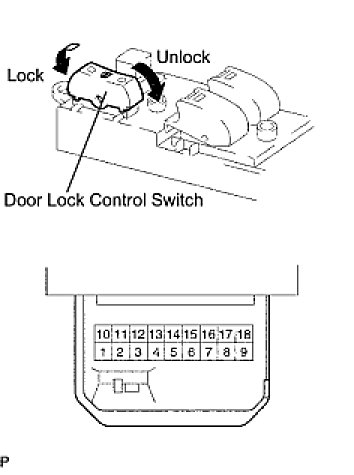

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY






(a) Measure the resistance according to the Value(s) in the table below.

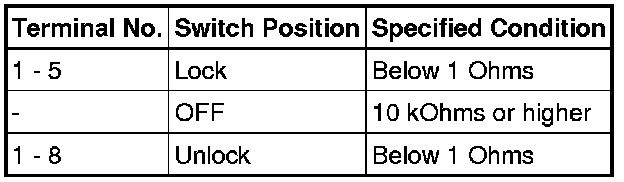

Standard resistance:





If the result is not as specified, replace the switch assembly.
2. INSPECT DOOR CONTROL SWITCH ASSEMBLY






(a) Passenger side switch:
Measure the resistance according to the value(s) in the table below.

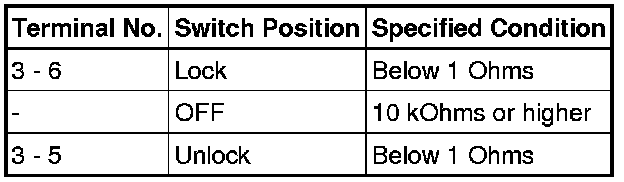

Standard resistance:

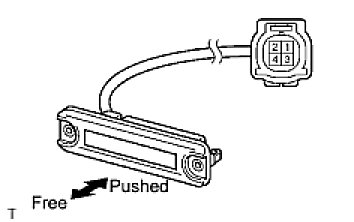

3. INSPECT BACK DOOR OPENER SWITCH ASSEMBLY






(a) Inspect the back door opener switch continuity.

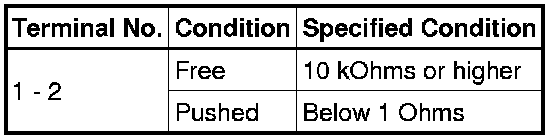

Standard resistance:





If the result is not as specified, replace the switch assembly.
