Trailer Towing Relay: Service and Repair

Towing Converter Relay:

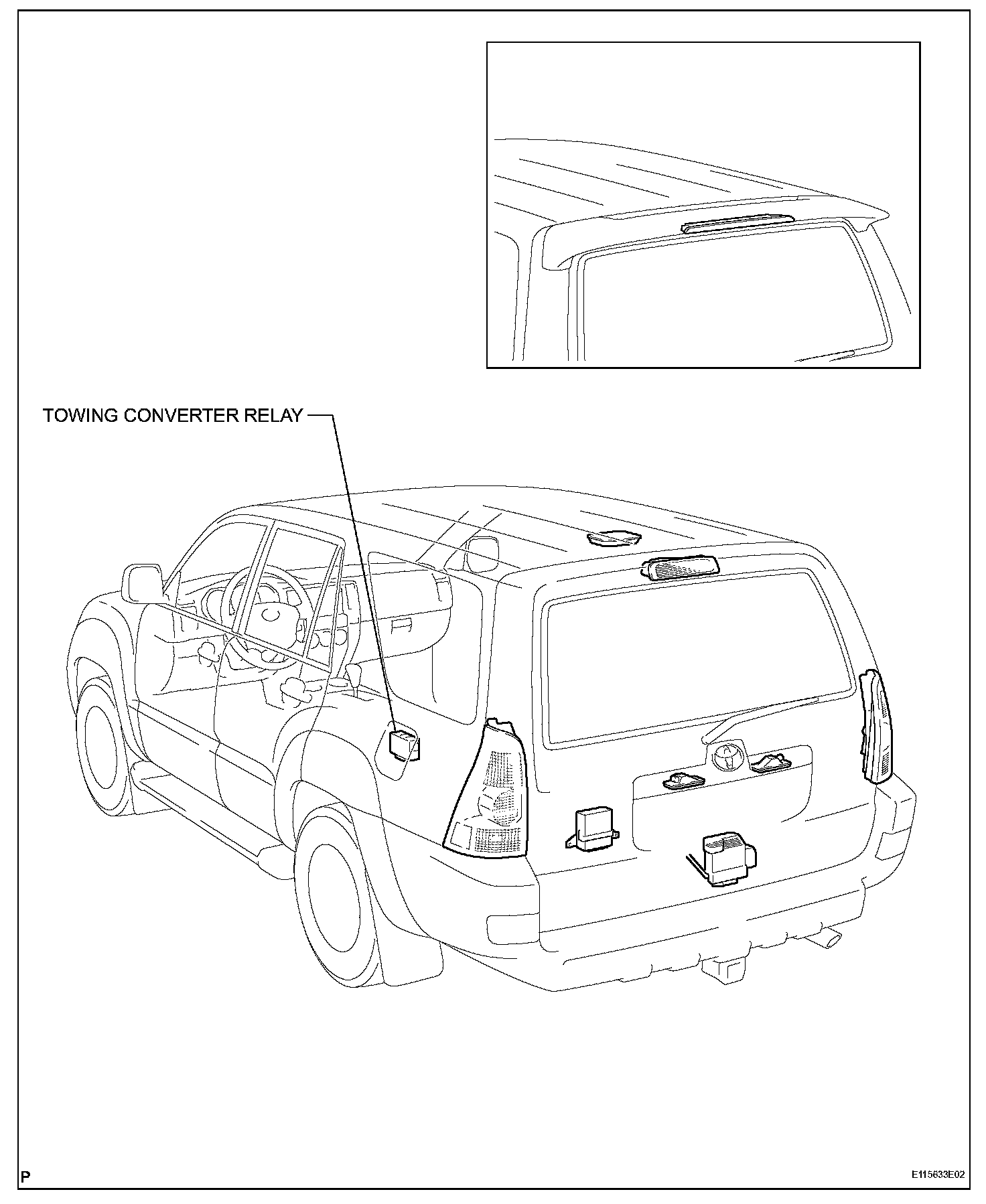

TOWING CONVERTER RELAY

REMOVAL

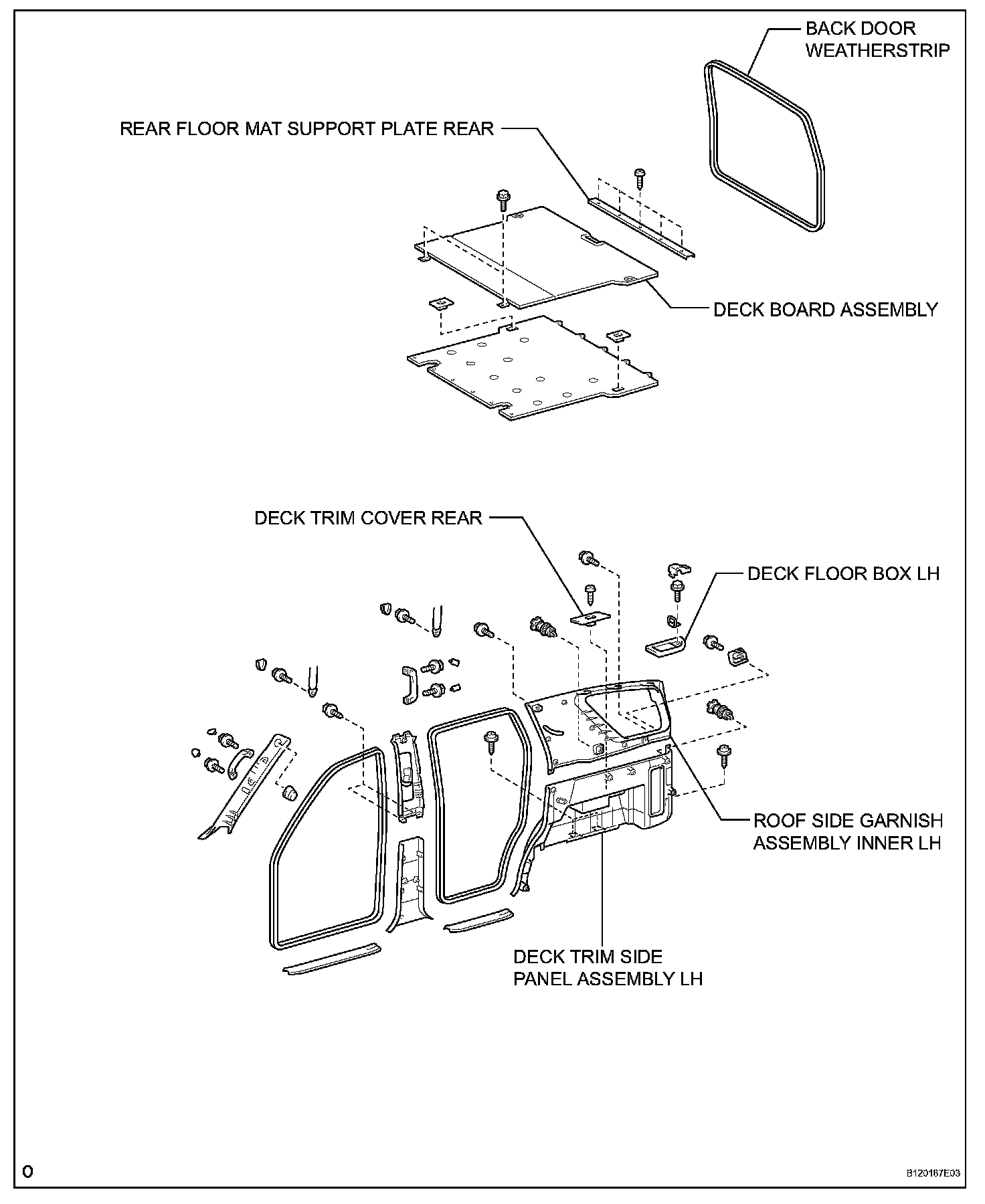

1. REMOVE TONNEAU COVER RETRACTOR SUB-ASSEMBLY
2. REMOVE BACK DOOR WEATHERSTRIP
3. REMOVE REAR FLOOR MAT SUPPORT PLATE REAR
4. REMOVE DECK BOARD SUB-ASSEMBLY
5. REMOVE DECK BOARD ASSEMBLY
6. REMOVE DECK FLOOR BOX RH
7. REMOVE DECK FLOOR BOX LH
8. REMOVE DECK TRIM COVER REAR
9. REMOVE DECK TRIM SIDE BOARD UPR LH
10. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
11. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH

12. REMOVE TOWING CONVERTER RELAY
a. Disconnect the connector.

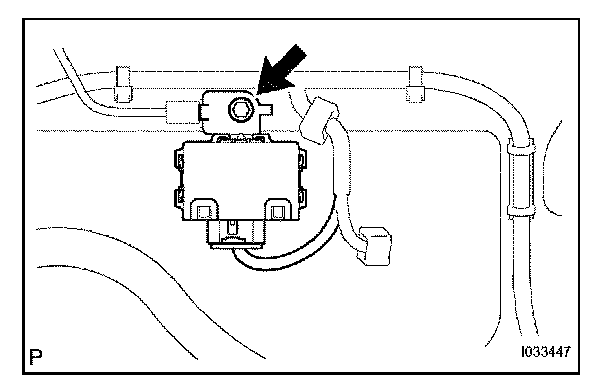

b. Remove the bolt and towing converter relay.

INSTALLATION

1. INSTALL TOWING CONVERTER RELAY
2. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH
3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
4. INSTALL DECK TRIM SIDE BOARD UPR LH
5. INSTALL DECK TRIM COVER REAR
6. INSTALL DECK FLOOR BOX LH
7. INSTALL DECK FLOOR BOX RH
8. INSTALL DECK BOARD ASSEMBLY
9. INSTALL DECK BOARD SUB-ASSEMBLY
10. INSTALL REAR FLOOR MAT SUPPORT PLATE REAR
11. INSTALL BACK DOOR WEATHERSTRIP
12. INSTALL TONNEAU COVER RETRACTOR SUB-ASSEMBLY
