NAVIGATION: NAVIGATION RECEIVER: REMOVAL

NAVIGATION: NAVIGATION RECEIVER: REMOVAL

1. REMOVE INSTRUMENT PANEL FINISH PLATE Removal

2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER Removal

3. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal

4. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY Removal

5. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER Removal

6. REMOVE AIR CONDITIONING CONTROL ASSEMBLY Removal

7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER Removal

8. REMOVE RADIO AND NAVIGATION ASSEMBLY (w/ Bracket)






(a) Remove the 2 bolts.
(b) Disconnect the connectors and remove the radio and navigation assembly w/ bracket.

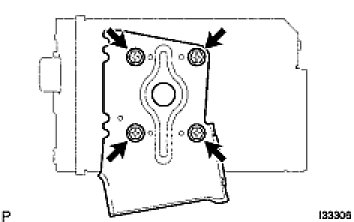

9. REMOVE RADIO NO. 1 BRACKET






(a) Remove the 4 screws and radio No. 1 bracket.

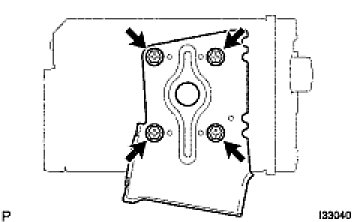

10. REMOVE RADIO NO. 2 BRACKET






(a) Remove the 4 screws and radio No. 2 bracket.
