Problem Symptoms Table

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: PROBLEM SYMPTOMS TABLE

HINT: Inspect the "Fuse" and "Relay" before confirming the suspected area as shown in the table below.

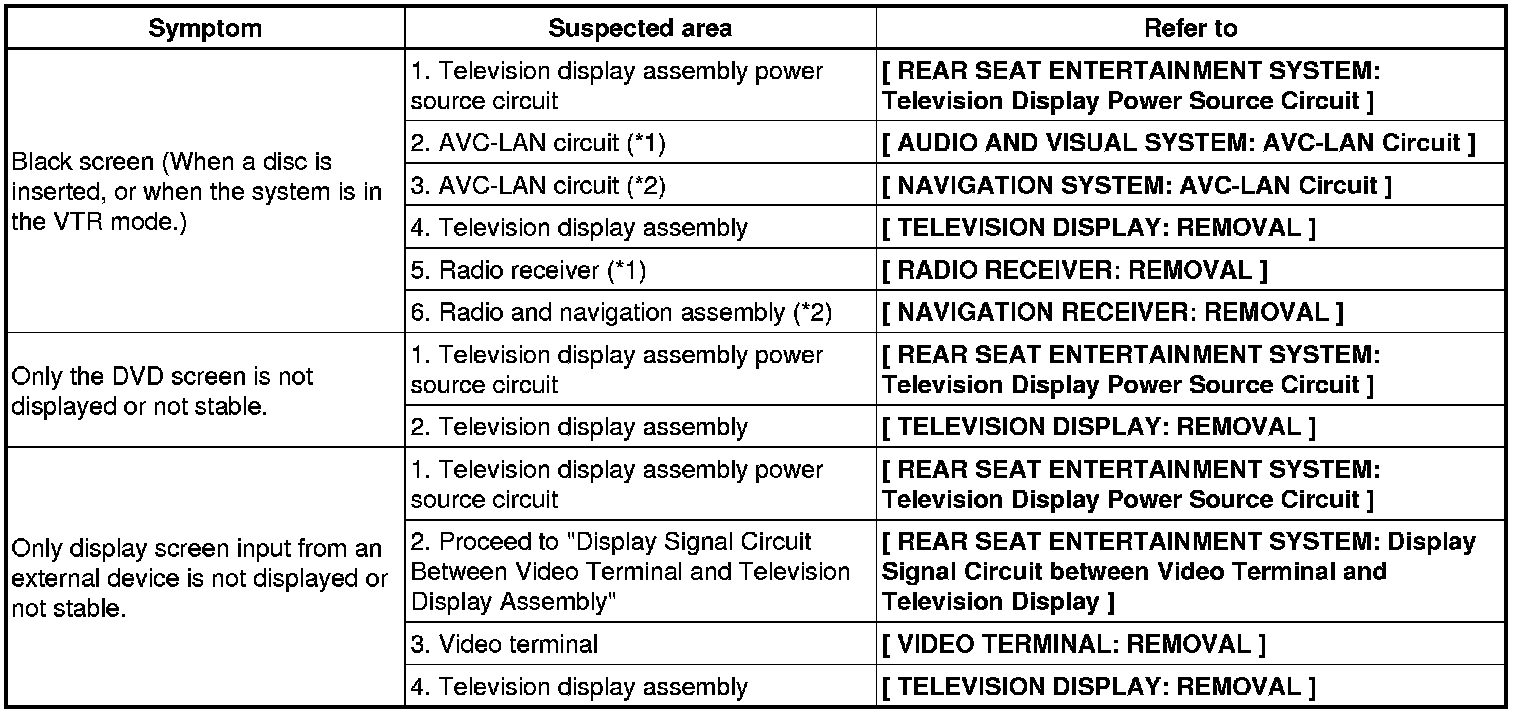

DISPLAY FUNCTION:





SOUND FUNCTION:

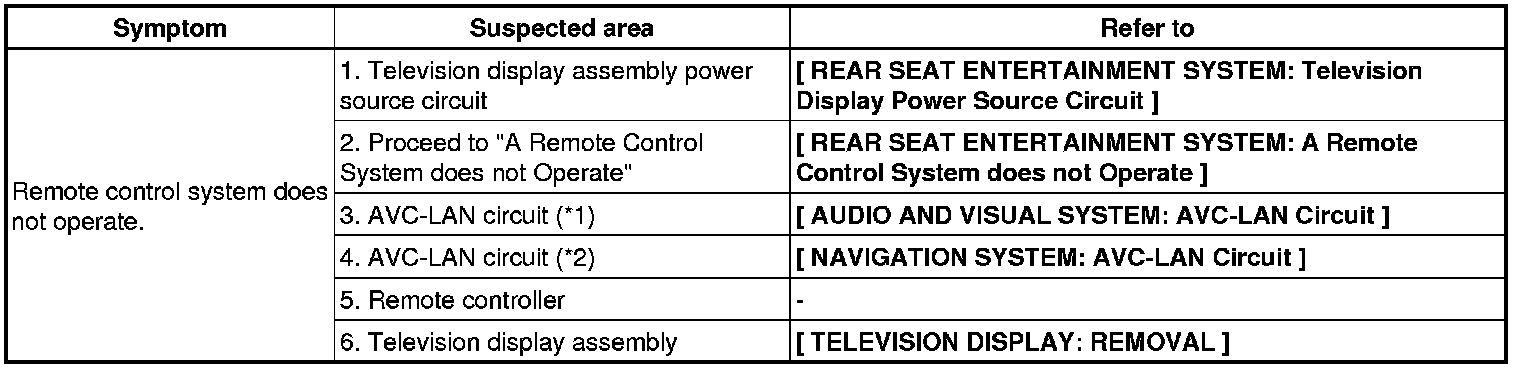

REMOTE CONTROL FUNCTION:





*1: without Navigation System
*2: with Navigation System
