ENGINE IMMOBILISER: TRANSPONDER KEY AMPLIFIER: REMOVAL

ENGINE IMMOBILISER: TRANSPONDER KEY AMPLIFIER: REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL
(a) Disconnect the battery negative terminal Service Precautions.
2. REMOVE INSTRUMENT PANEL FINISH PLATE Removal

3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

4. REMOVE LOWER INSTRUMENT PANEL LH Removal

5. REMOVE TRANSPONDER KEY AMPLIFIER

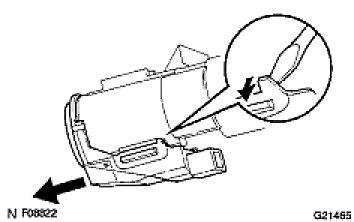

(a) Using a screwdriver, widen the claws attached to the upper bracket by approximately 1 mm (0.0394 in.).
(b) Pull out the transponder key amplifier with the claws open.
NOTICE: Take care not to apply excessive force to prevent the case from being damaged.
