ENGINE IMMOBILISER: TRANSPONDER KEY ECU: INSTALLATION

ENGINE IMMOBILISER: TRANSPONDER KEY ECU: INSTALLATION

1. INSTALL TRANSPONDER KEY ECU

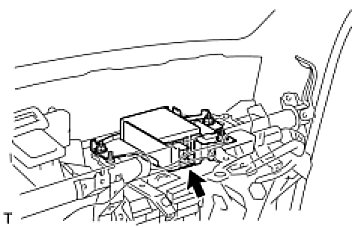

(a) Install the transponder key ECU with the nut.
(b) Connect the connector.
2. INSTALL NO. 3 HEATER TO REGISTER DUCT
3. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
(a) Install the instrument panel safety pad Installation.
