VI. Work Procedure
VI. WORK PROCEDUREA. VEHICLE PREPARATION
1. RECORD THE RADIO STATION PRESETS

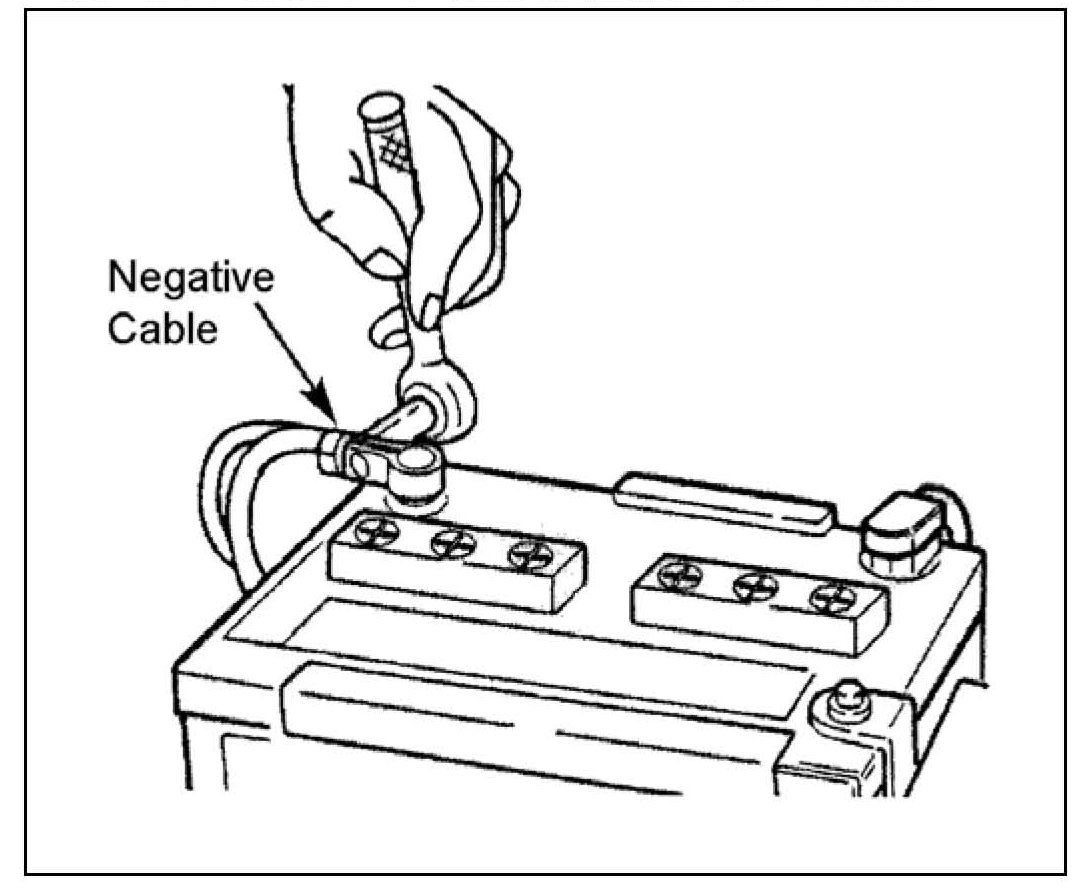

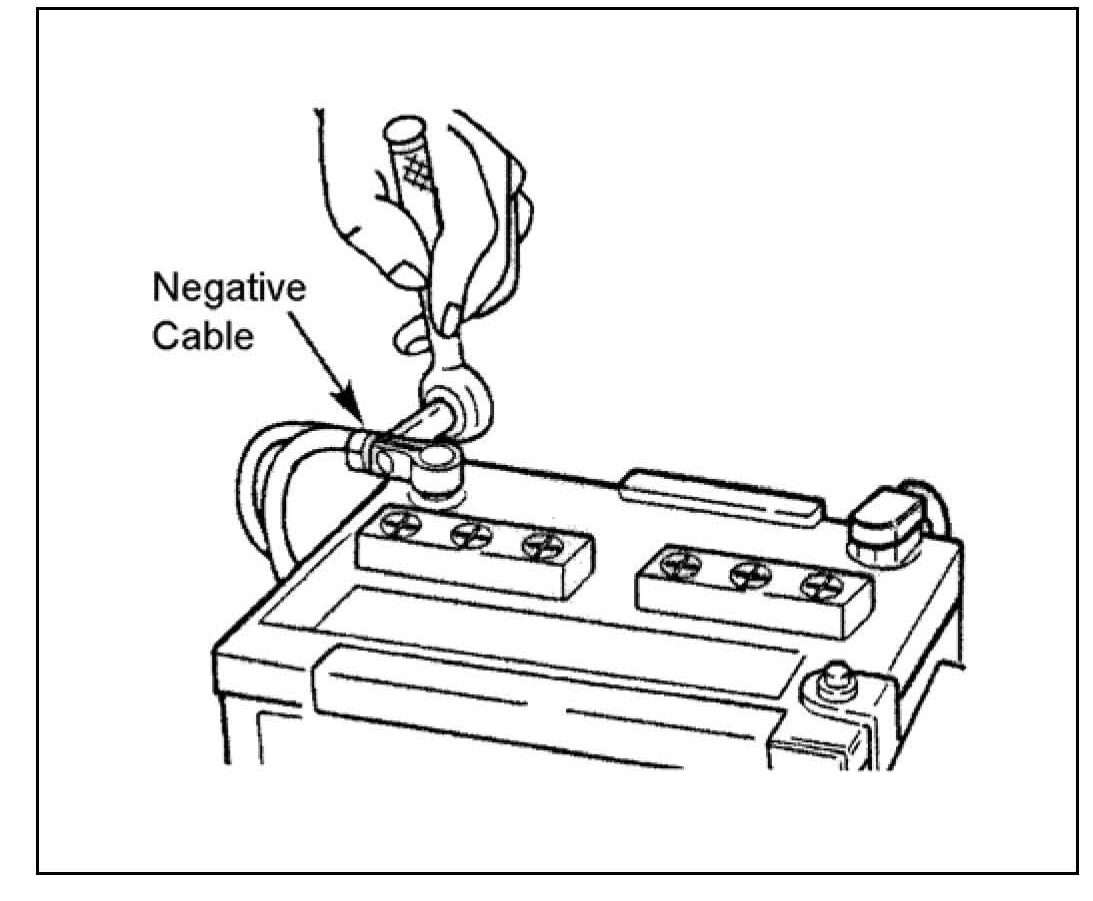

2. DISCONNECT THE NEGATIVE BATTERY CABLE
B. REPLACE THE FRONT PASSENGER AIRBAG INDICATOR LENS

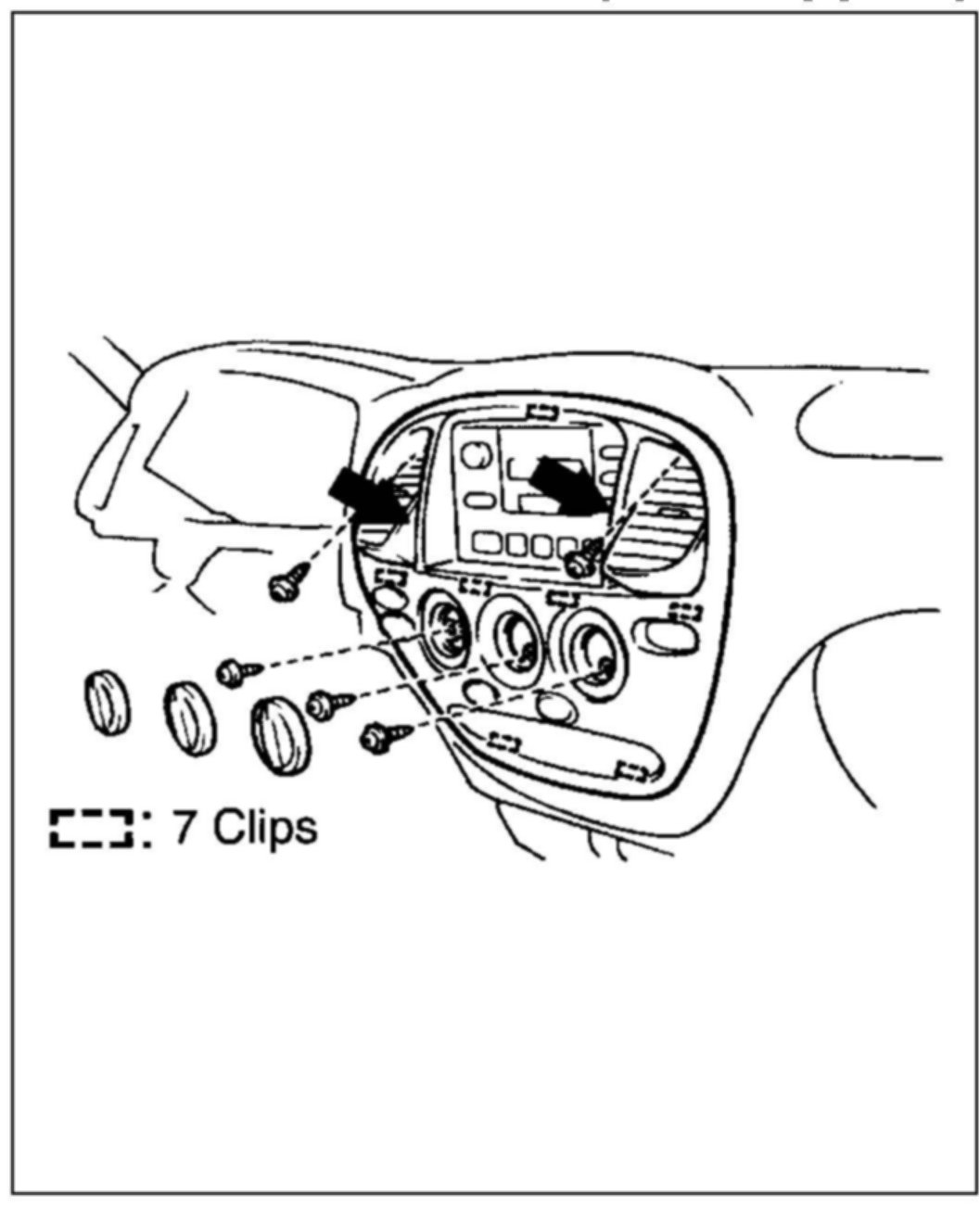

1. REMOVE THE INTEGRATION CONTROL PANEL
(a) Remove the 3 control knobs.
(b) Remove the 3 screws (1 screw behind each of the 3 control knobs).
(c) Remove the 2 screws (1 screw above each vent).
NOTE:
^ Be careful not to drop the 2 screws located above the vents when removing them.
^ Using a magnetic screwdriver will aid in the removal of these 2 screws.
(d) Remove the integration control panel by pulling at the positions indicated by the arrows in the illustration.
(e) Disconnect the 2 connectors.

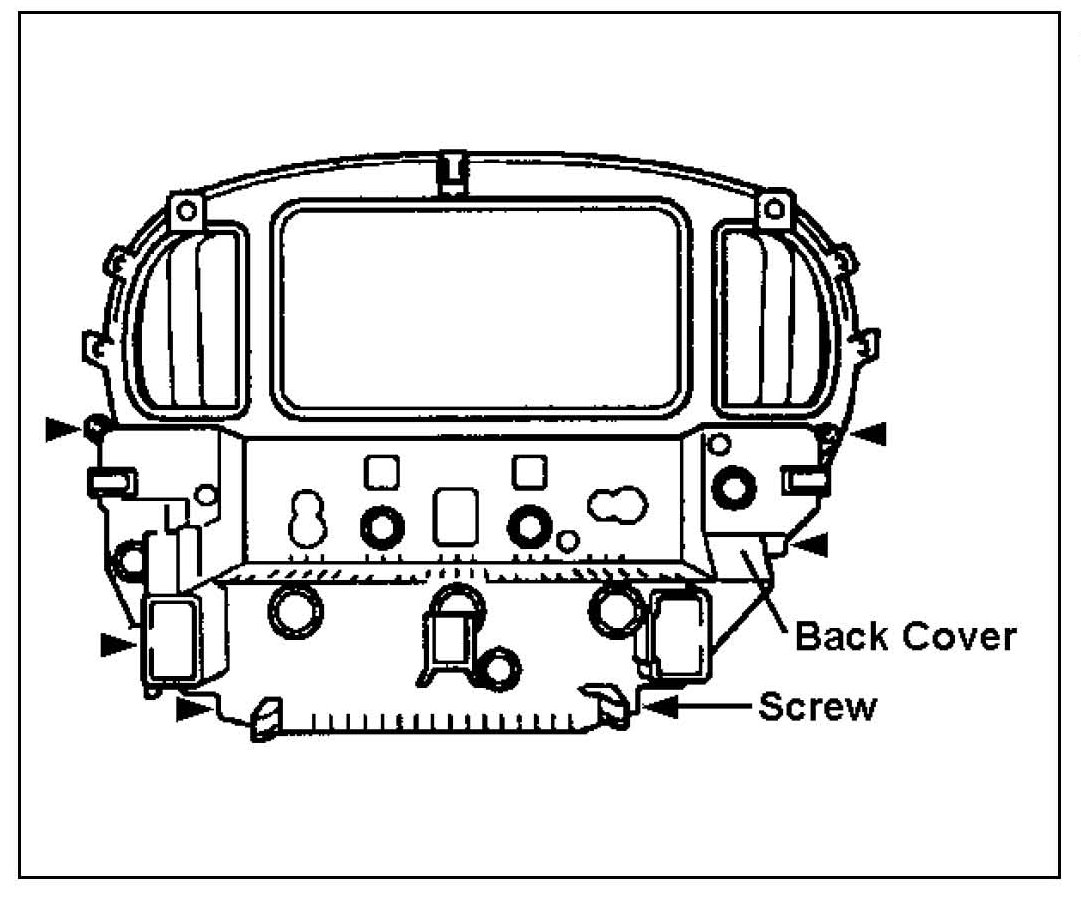

2. REMOVE THE INTEGRATION CONTROL PANEL BACK COVER
(a) Turn the integration control panel over to the back side.
(b) Remove the 6 screws.
(c) Remove the back cover.
NOTE:
During this process, DO NOT place the integration panel facedown on a surface that can cause scratches.

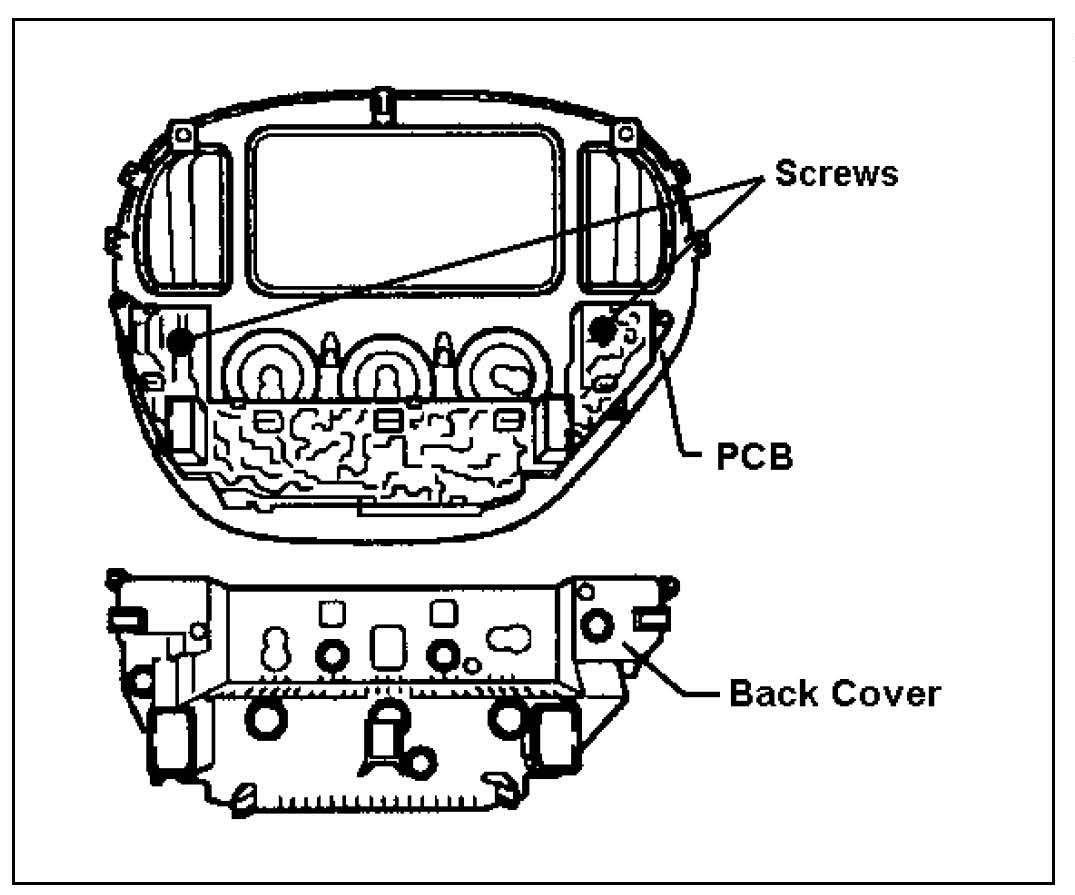

3. REMOVE THE INTEGRATION CONTROL PANEL PRINTED CIRCUIT BOARD (PCB)
(a) Remove the 2 screws.
(b) Remove the PCB.

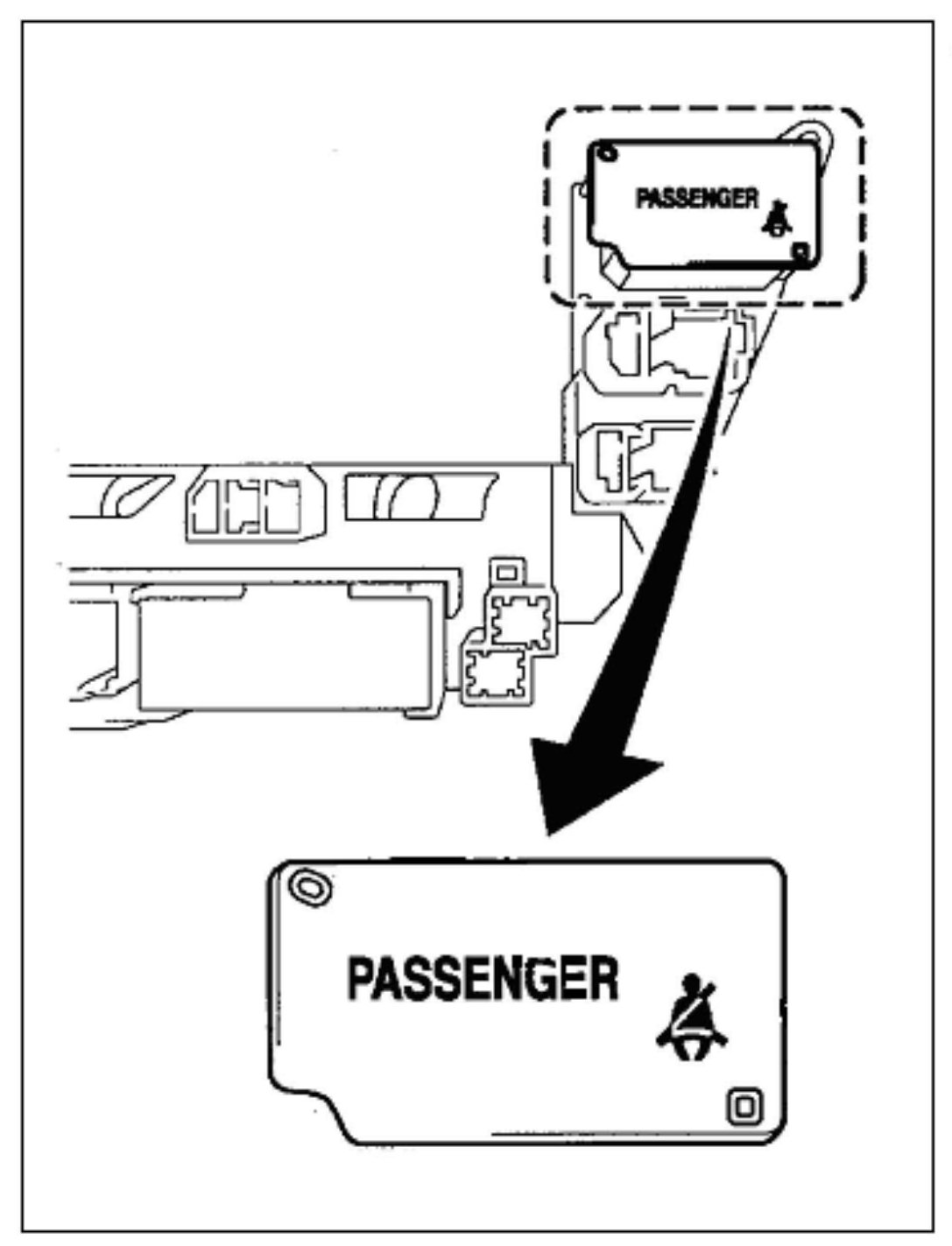

4. REMOVE THE OLD PASSENGER AIRBAG INDICATOR LENS
(a) Turn the PCB over to the front side.
(b) Remove the old passenger airbag indicator lens.

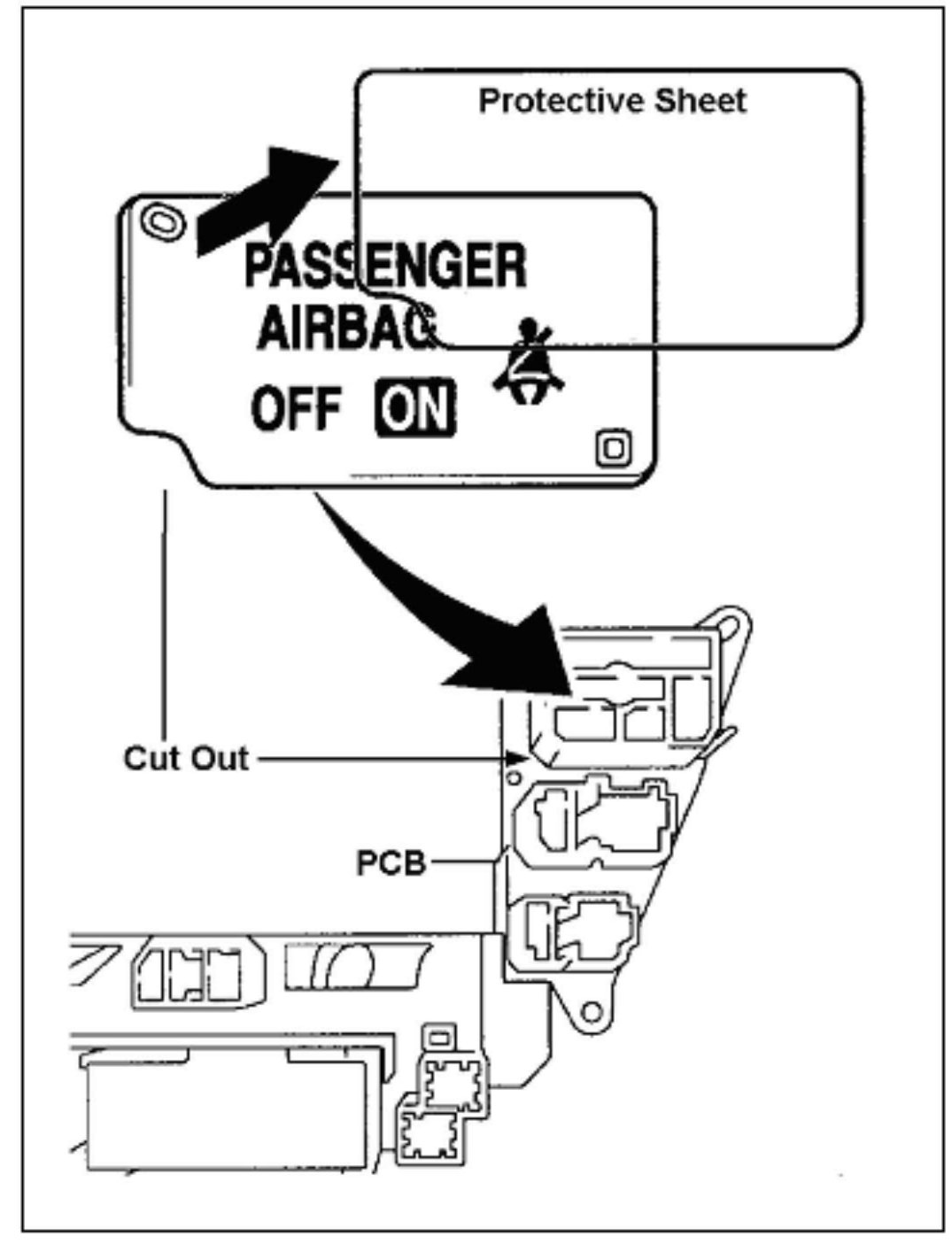

5. INSTALL THE NEW PASSENGER AIRBAG INDICATOR LENS
(a) Remove the protective sheet from the new indicator lens.
(b) Install the new indicator lens, making sure the cut out on the PCB and the indicator lens match up.
NOTE:
The protective sheet covering the new indicator lens, may make the lens appear to have scratches on it when it does not.

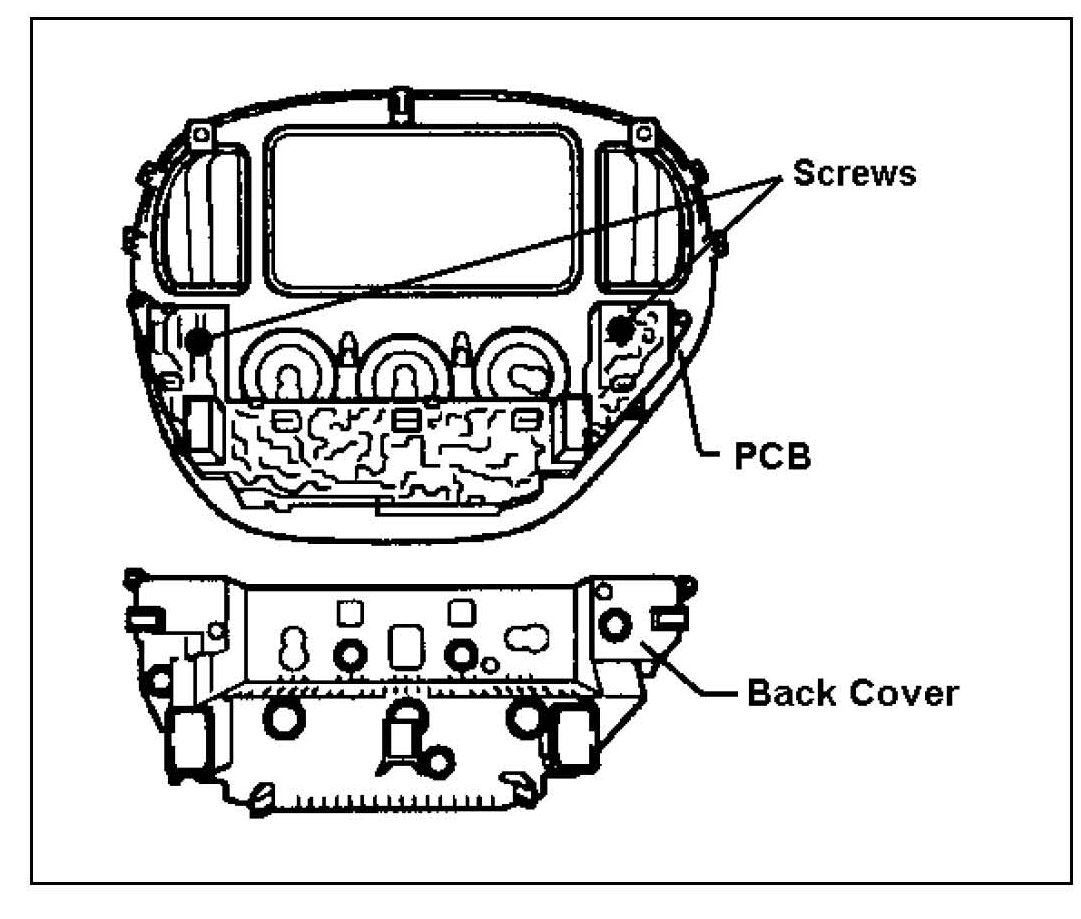

6. REINSTALL THE INTEGRATION CONTROL PANEL PRINTED CIRCUIT BOARD (PCB)
(a) Reinstall the PCB.
(b) Reinstall the 2 screws.

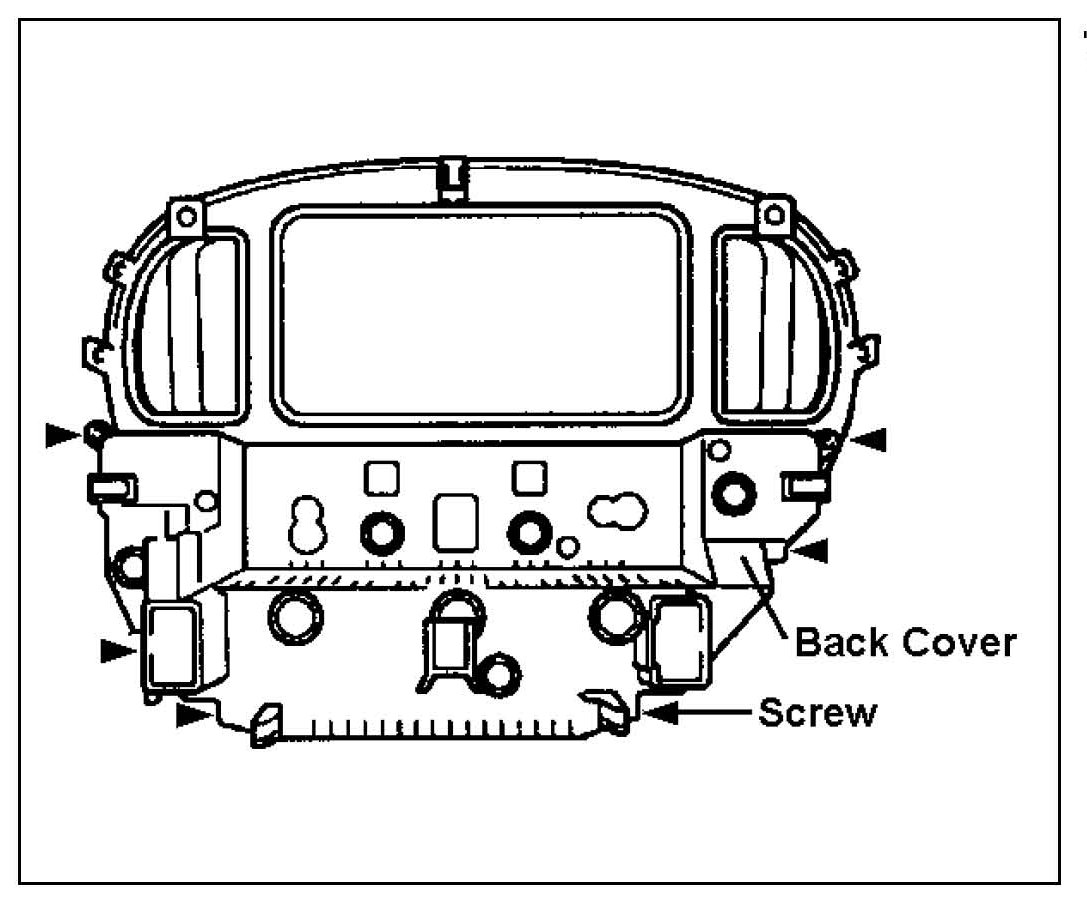

7. REINSTALL THE INTEGRATION CONTROL PANEL BACK COVER
(a) Reinstall the back cover.
(b) Reinstall the 6 screws.
(c) Turn the integration control panel over to the front side and inspect the operation of all the buttons.
NOTE:
During this process, DO NOT place the integration panel facedown on a surface that can cause scratches.
8. REINSTALL THE INTEGRATION CONTROL PANEL
(a) Reconnect the 2 connectors.

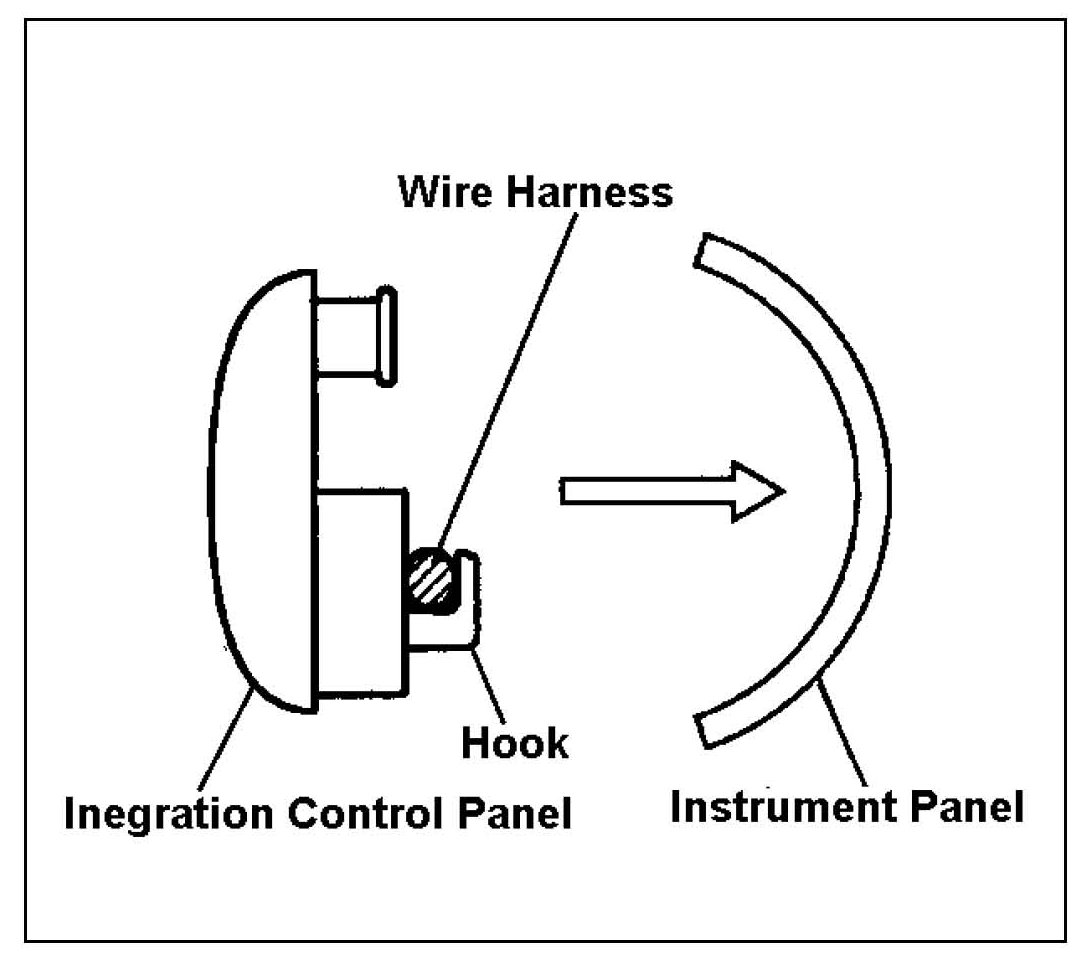

(b) Reset the longer wire harness to the hook on the back side on the integration control panel.
(c) Reinstall the integration control panel, and make sure all 7 clips indicated in the illustration are engaged.
(d) Reinstall the 5 screws.
NOTE:
^ Be careful not to drop the 2 screws located above the vents when reinstalling them.
^ Using a magnetic screwdriver will aid in the reinstallation of these 2 screws.
(e) Reinstall the 3 control knobs.
C. VEHICLE FUNCTION CHECK
1. RECONNECT THE NEGATIVE BATTERY CABLE
2. CHECK THE OPERATION OF THE PASSENGER AIRBAG INDICATOR LIGHT
(a) Sit in the front passenger seat.
(b) Turn the ignition switch to the ON position.
(c) Check that the passenger airbag indicator light on the integration control panel illuminates and indicates that the passenger airbag is "ON".
3. PERFORM A FUNCTION CHECK ON THE INTEGRATION CONTROL PANEL
(a) Make sure all knobs and buttons mounted on the integration control panel work correctly.
4. REPROGRAM THE RADIO STATION PRESETS
5. SET THE CLOCK TO THE APPROPRIATE TIME
