Access/Standard Cab

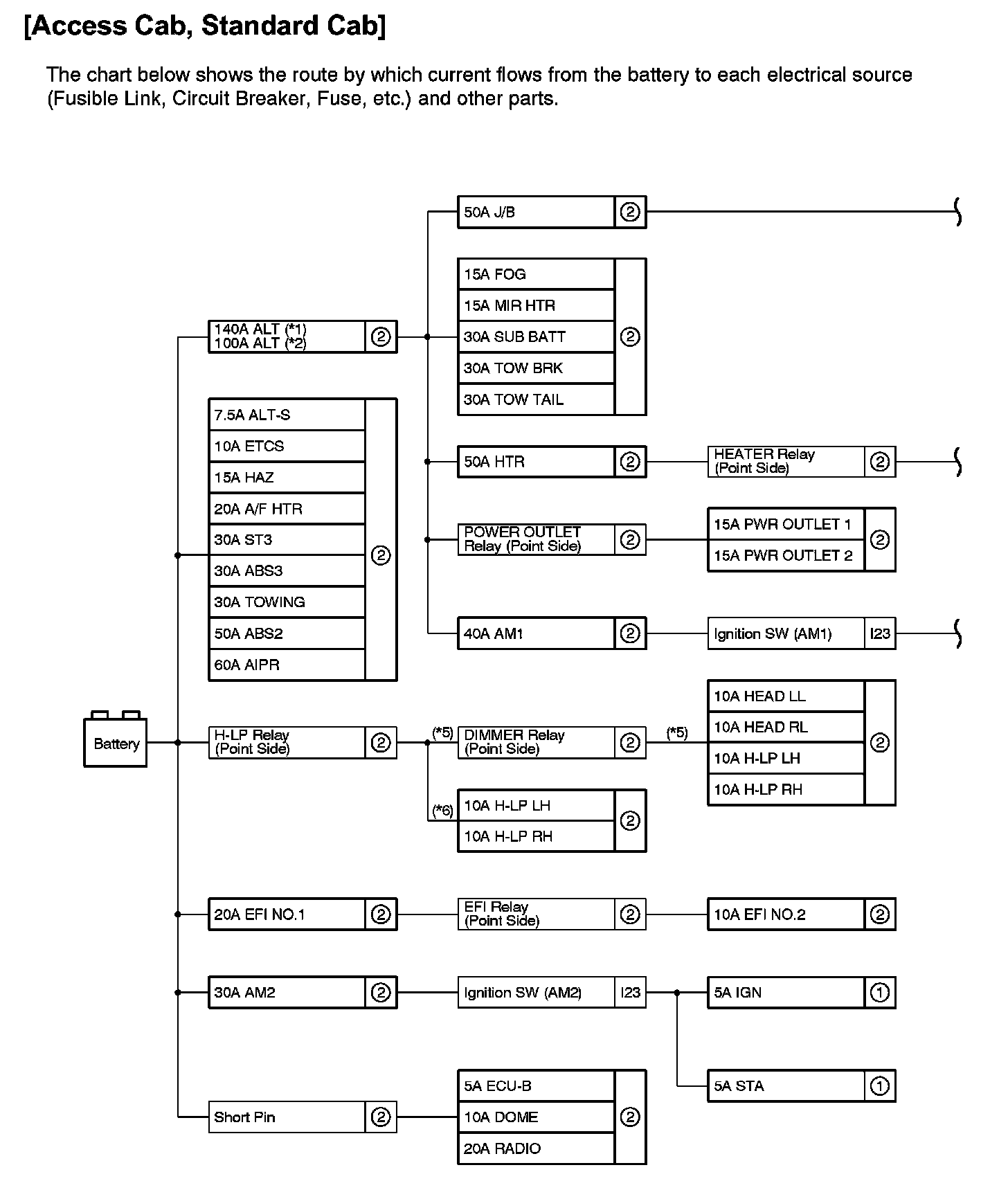

Power Source (Current Flow Chart) Part 1:

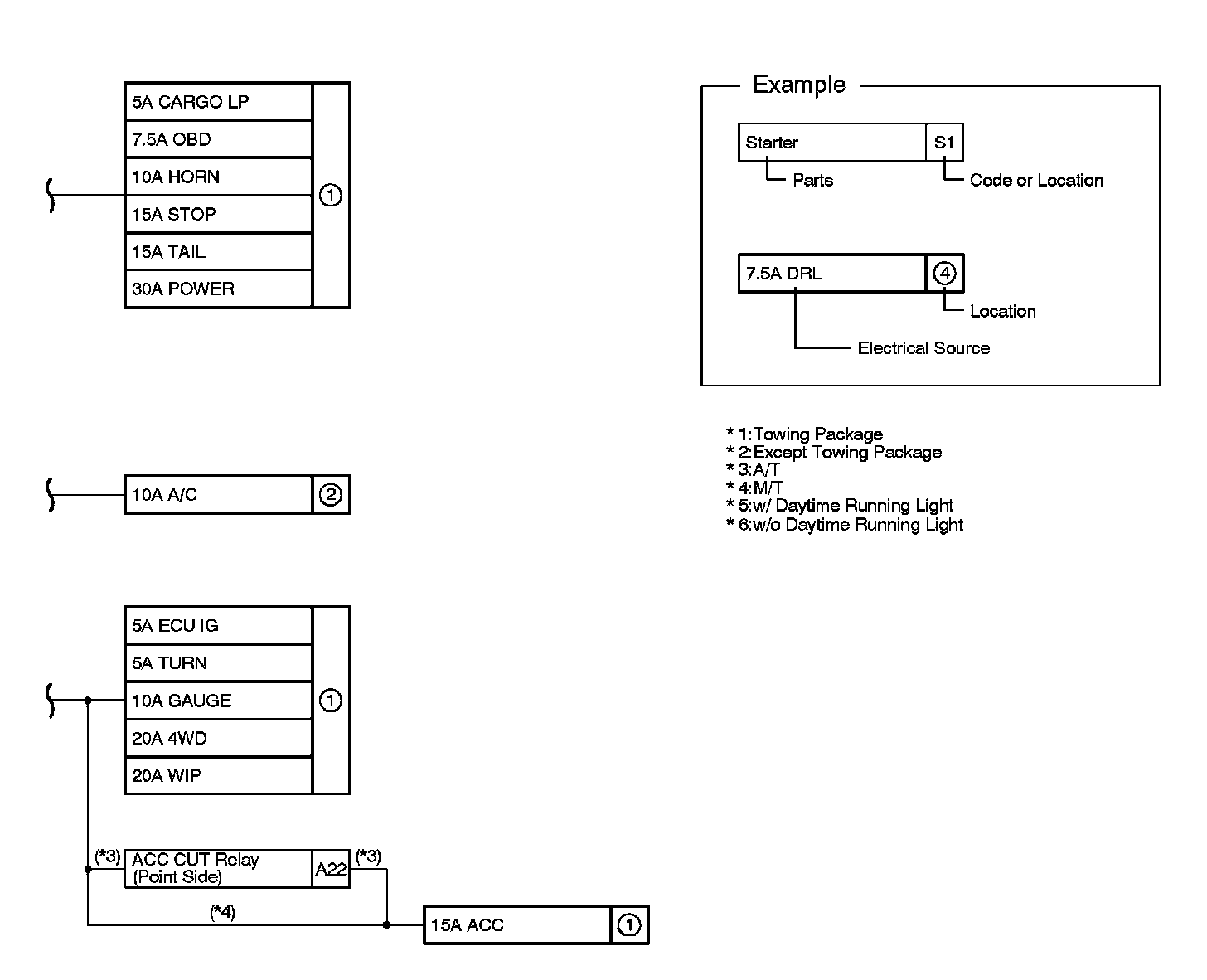

Power Source (Current Flow Chart) Part 2:
