Removal and Installation

Generator (Standard Spec.) Part 1:

Generator (Standard Spec.) Part 2:

REMOVAL

1. REMOVE ENGINE UNDER COVER
2. REMOVE THROTTLE BODY COVER
3. DISCONNECT CABLE FROM NEGATIVE (-) BATTERY TERMINAL
4. DISCONNECT INTAKE AIR CONNECTOR FROM THROTTLE BODY




5. REMOVE GENERATOR DRIVE BELT

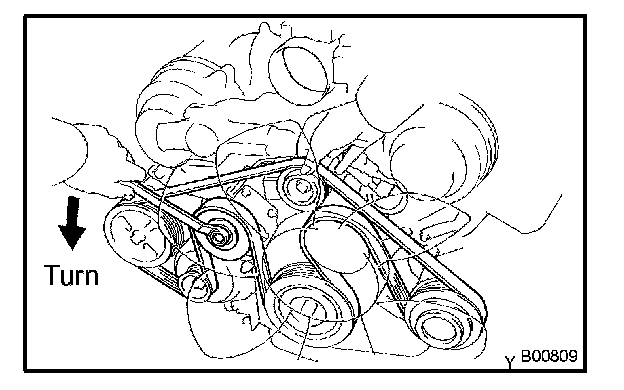

Loosen the belt tension by turning the belt tensioner counterclockwise, and remove the drive belt.

HINT: The pulley bolt for the belt tensioner has a left hand thread.

6. REMOVE PS VANE PUMP FROM ENGINE
7. REMOVE GENERATOR
a. Disconnect the generator connector.
b. Remove the terminal cap and nut, and disconnect the generator wire.
c. Disconnect the wire clamp from the cord clip on the generator.
d. Remove the bolt, nut and generator.

INSTALLATION

1. INSTALL GENERATOR
a. Install the generator with the bolt and nut.

Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

b. Connect the generator connector.
c. Connect the generator wire with the nut and rubber.
d. Install the terminal cap.
e. Install the wire clamp to the cord clip on the generator.

2. INSTALL PS VANE PUMP




3. INSTALL DRIVE BELT

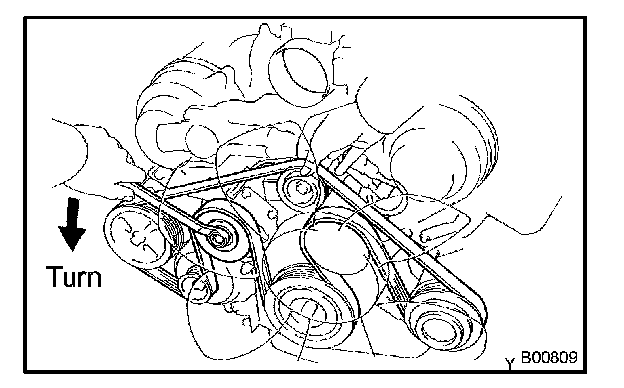

Install the belt by turning the belt tensioner counterclockwise.

HINT: The pulley bolt for the belt tensioner has a left-hand thread.

4. CONNECT INTAKE AIR CONNECTOR TO THROTTLE BODY
5. PERFORM ON-VEHICLE INSPECTION
6. INSTALL THROTTLE BODY COVER
7. INSTALL ENGINE UNDER COVER
8. CONNECT CABLE TO NEGATIVE (-) BATTERY TERMINAL
