Exploded Views
Exploded Views

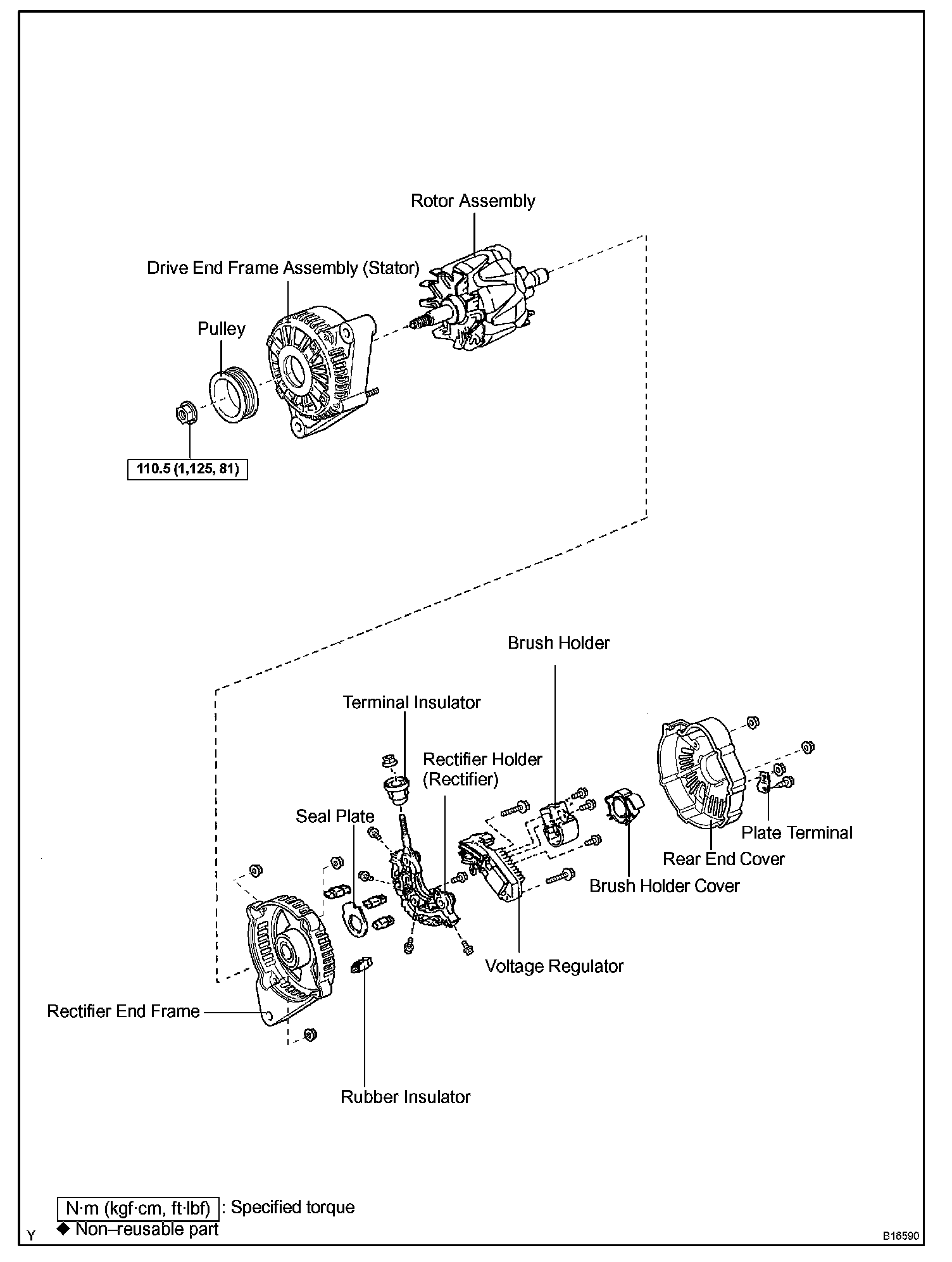

Generator (Standard Spec.) Part 1:

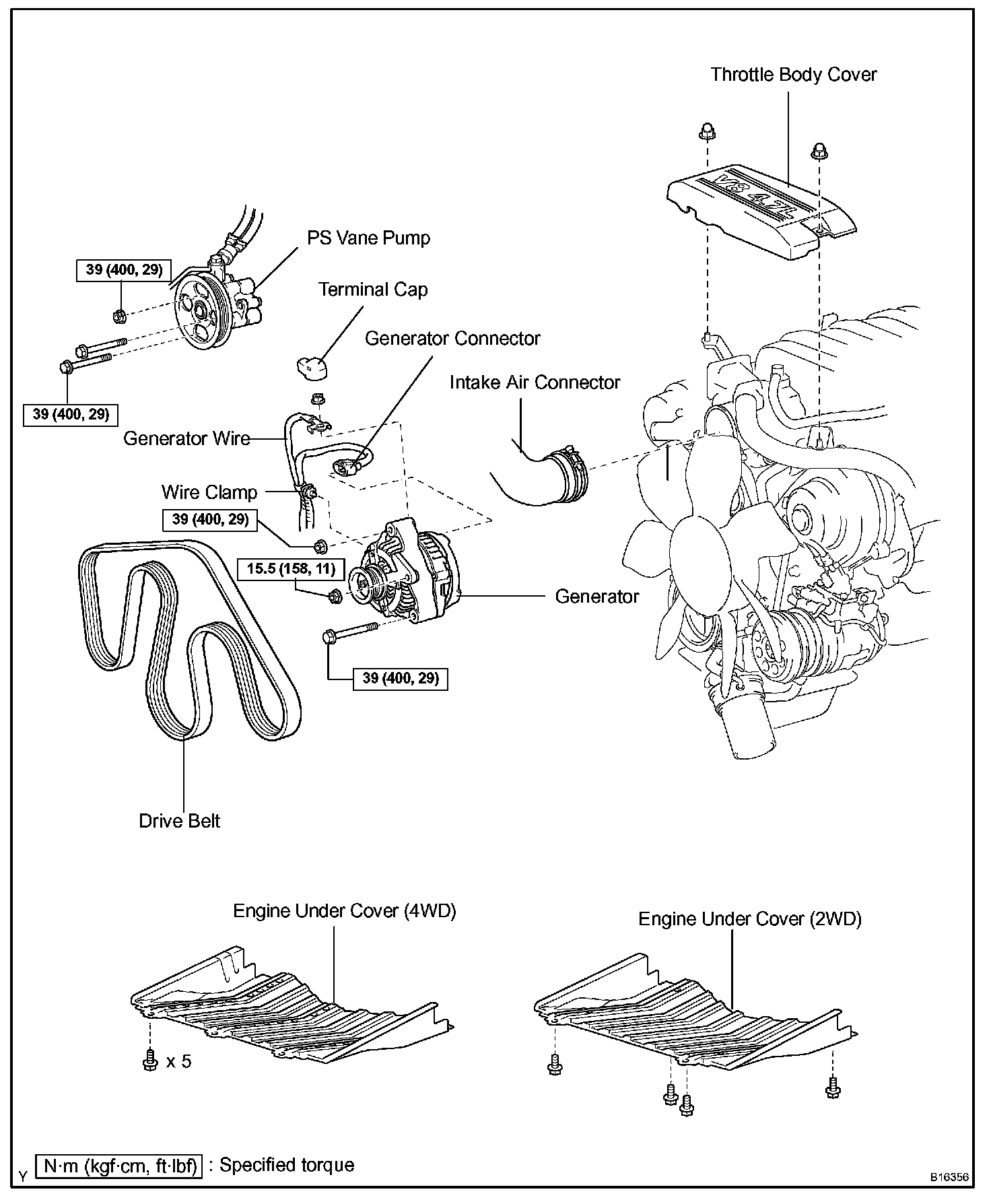

Generator (Standard Spec.) Part 2:

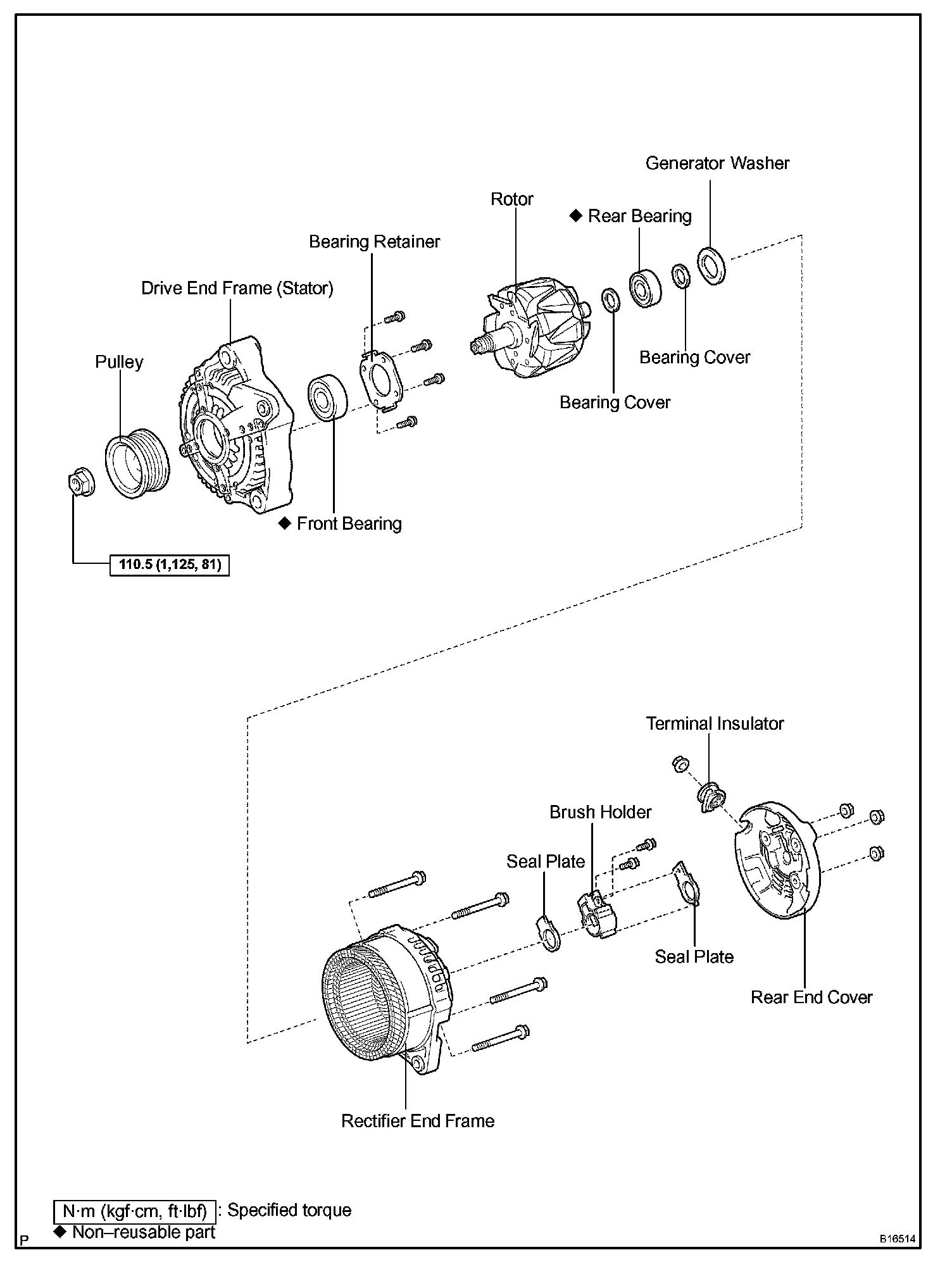

Generator (Towing Package Spec.) Part 1:

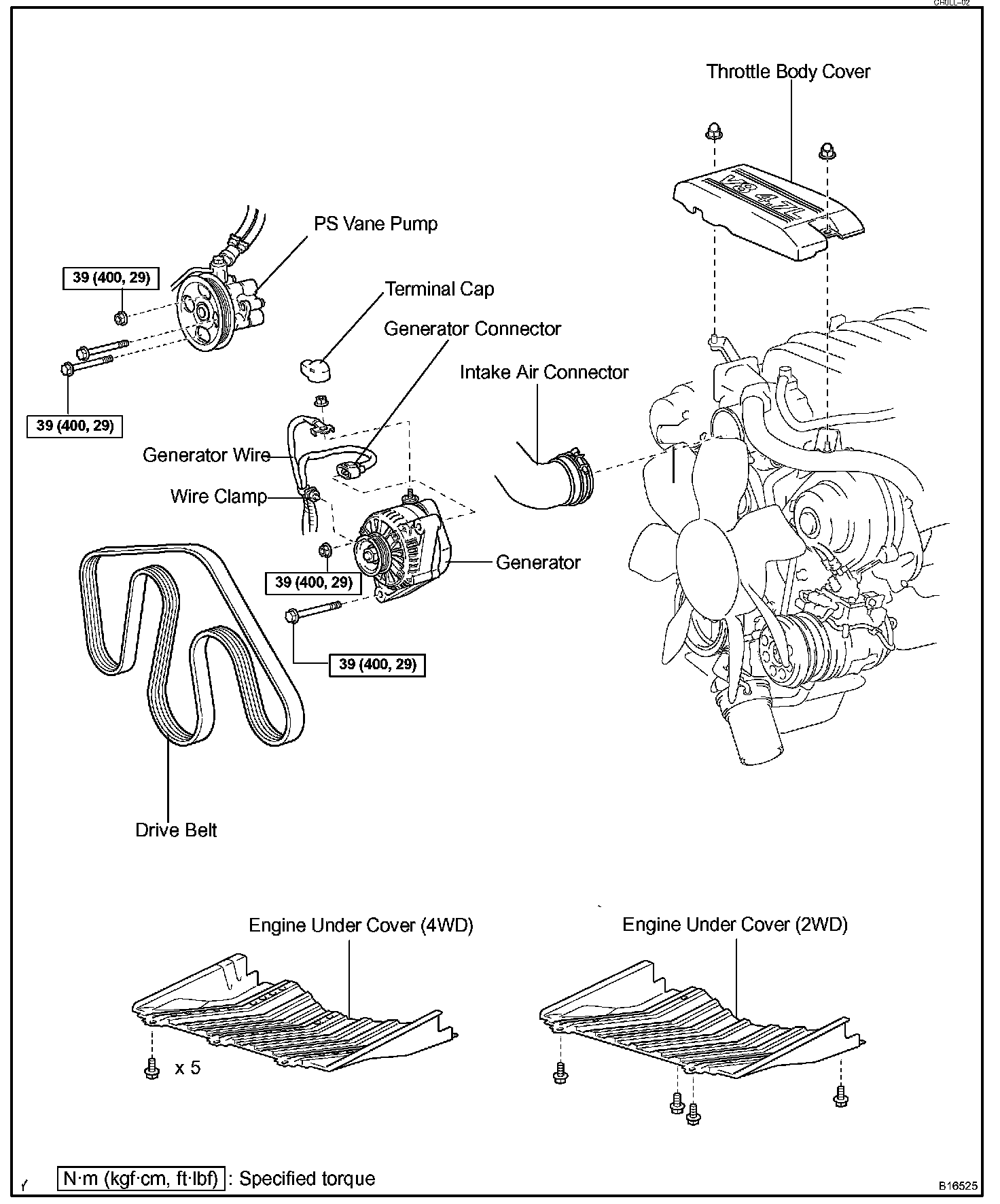

Generator (Towing Package Spec.) Part 2:
