Oil Pan, Engine

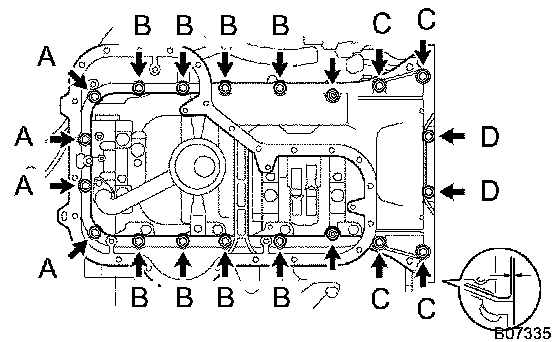

NO.1 OIL PAN





Uniformly tighten the bolts, and nuts in several passes.
Torque for 10 mm head 7.5 Nm (76 kgf-cm, 66 inch lbs.)
Torque for 12 mm head 28 Nm (290 kgf-cm, 21 ft. lbs.)


NO.2 OIL PAN

Install the No.2 oil pan with the 24 bolts and 2 nuts. Uniformly tighten the bolts and nuts in several passes.
Torque 7.5 Nm (76 kgf-cm, 66 inch lbs.)
