Removal and Installation

Airbag Sensor Assembly:

REMOVAL

NOTE:
- If the wiring connector of the SRS is disconnected with the ignition switch in the ON position, DTCs will be recorded.
- Never use airbag parts from another vehicle. When replacing parts, replace them with new ones.
- Never reuse an airbag sensor assembly if the airbag has previously deployed in a collision.

1. PRECAUTION
Refer to Air Bag Systems; Service Precautions.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. Standard cab:
Access cab (w/o Large type console box):
Double cab (Split type seat):
REMOVE LOWER CENTER COVER

4. Access cab (w/ Large type console box):
Double cab:
REMOVE SHIFTING HOLE COVER

5. Access cab (w/ Large type console box):
Double cab:
REMOVE UPPER CONSOLE PANEL

6. Access cab (w/ Large type console box):
Double cab:
REMOVE REAR CONSOLE BOX

7. Access cab (w/ Large type console box):
Double cab:
REMOVE FRONT CONSOLE BOX

8. REMOVE AIRBAG SENSOR ASSEMBLY
a. Disconnect the holder (with connectors) from the airbag sensor assembly.

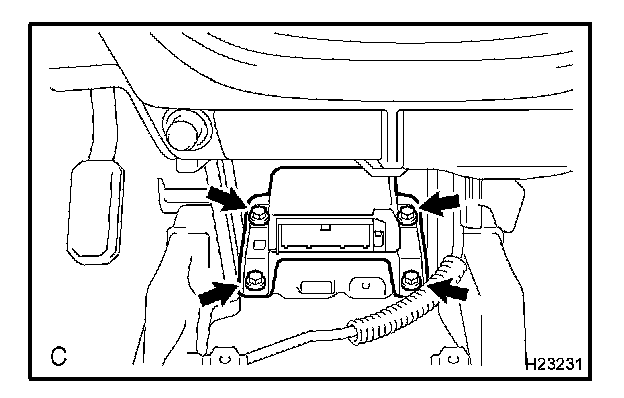

b. Remove the 4 bolts and airbag sensor assembly.

INSTALLATION

NOTE:
- Never use SRS parts from another vehicle. When replacing parts, replace them with new ones.
- Never reuse the airbag sensor assembly involved in a collision when the airbag has deployed.
- If the airbag sensor assembly center has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the airbag sensor assembly center, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
- After installing, shake the airbag sensor assembly to check that there is no looseness.

1. INSTALL AIRBAG SENSOR ASSEMBLY

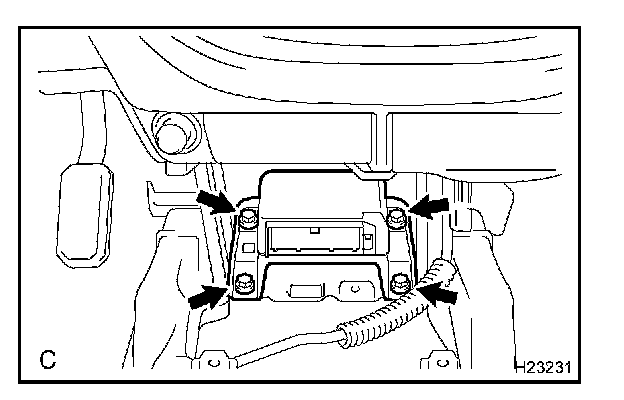

a. Install the airbag sensor assembly with the 4 bolts.

Torque: 17.5 N.m (179 kgf.cm, 13 ft.lbf)

b. Connect the airbag sensor holder (with connectors).

2. Access cab (w/ Large type console box):
Double cab:
INSTALL FRONT CONSOLE BOX

3. Access cab (w/ Large type console box):
Double cab:
INSTALL REAR CONSOLE BOX

4. Access cab (w/ Large type console box):
Double cab:
INSTALL UPPER CONSOLE PANEL

5. Access cab (w/ Large type console box):
Double cab:
INSTALL SHIFTING HOLE COVER

6. Standard cab:
Access cab (w/o Large type console box):
Double cab (Split type seat):
INSTALL LOWER CENTER COVER

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. INSPECT SRS WARNING LIGHT
