Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

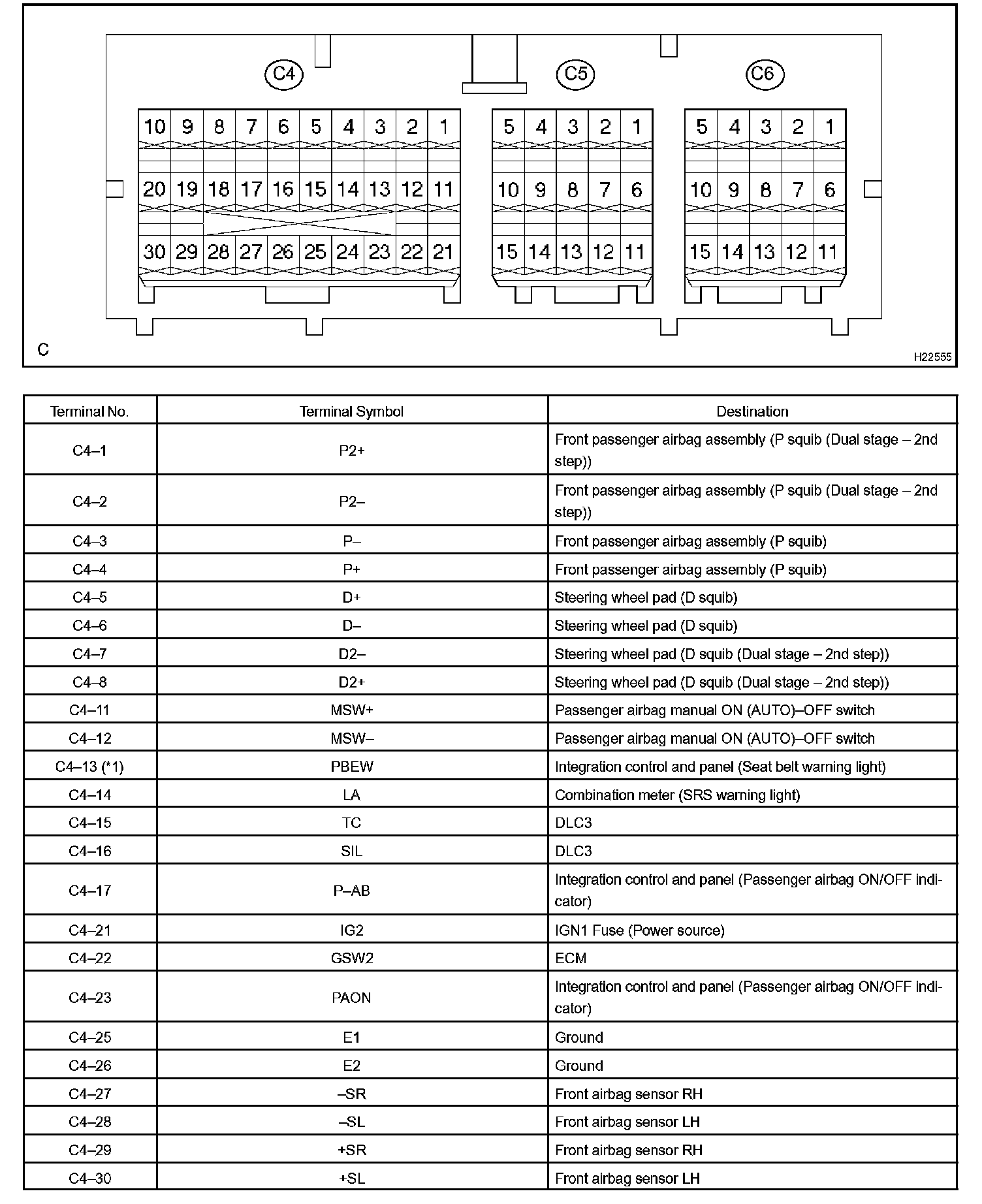

Terminals Of Control Module / Pinouts - Airbag Sensor Assembly Part 1:

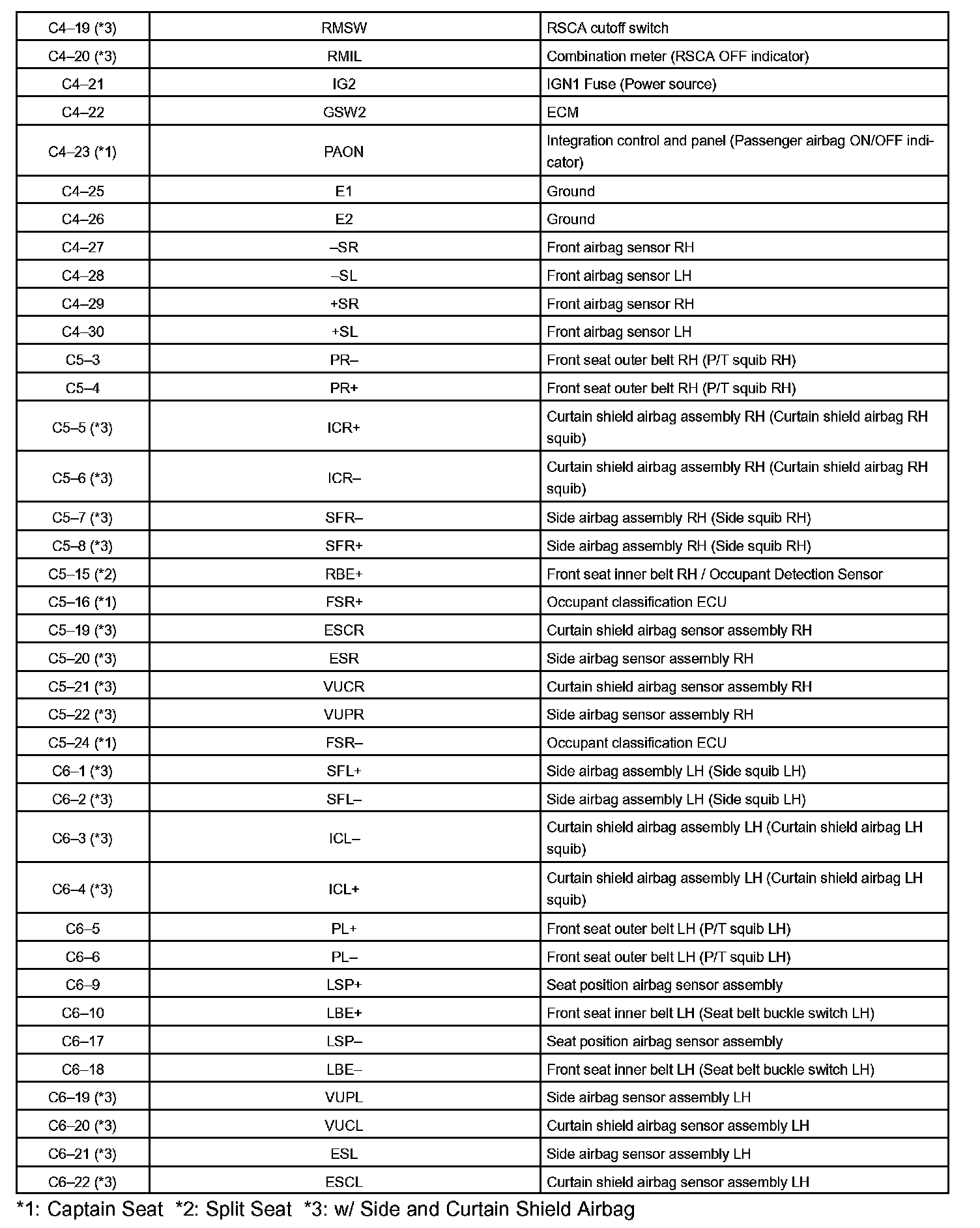

Terminals Of Control Module / Pinouts - Airbag Sensor Assembly Part 2:

1. Standard cab, Access cab

Terminals Of Control Module / Pinouts - Airbag Sensor Assembly Part 1:

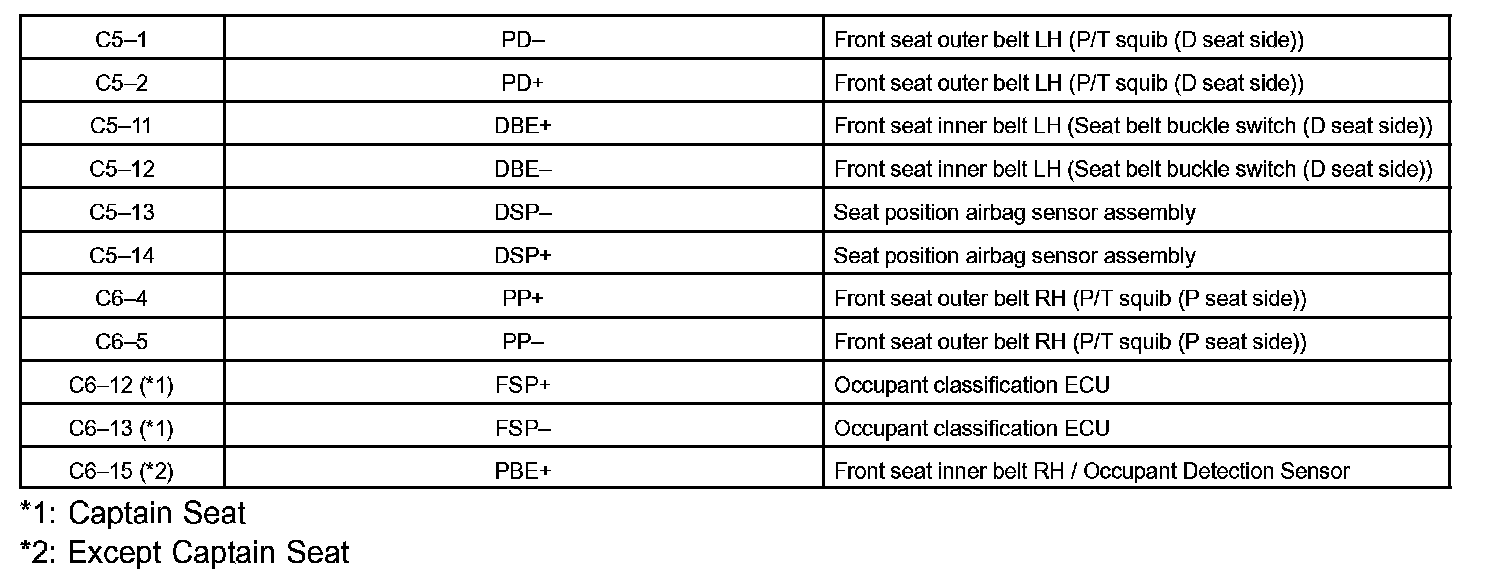

Terminals Of Control Module / Pinouts - Airbag Sensor Assembly Part 2:

2. Double cab

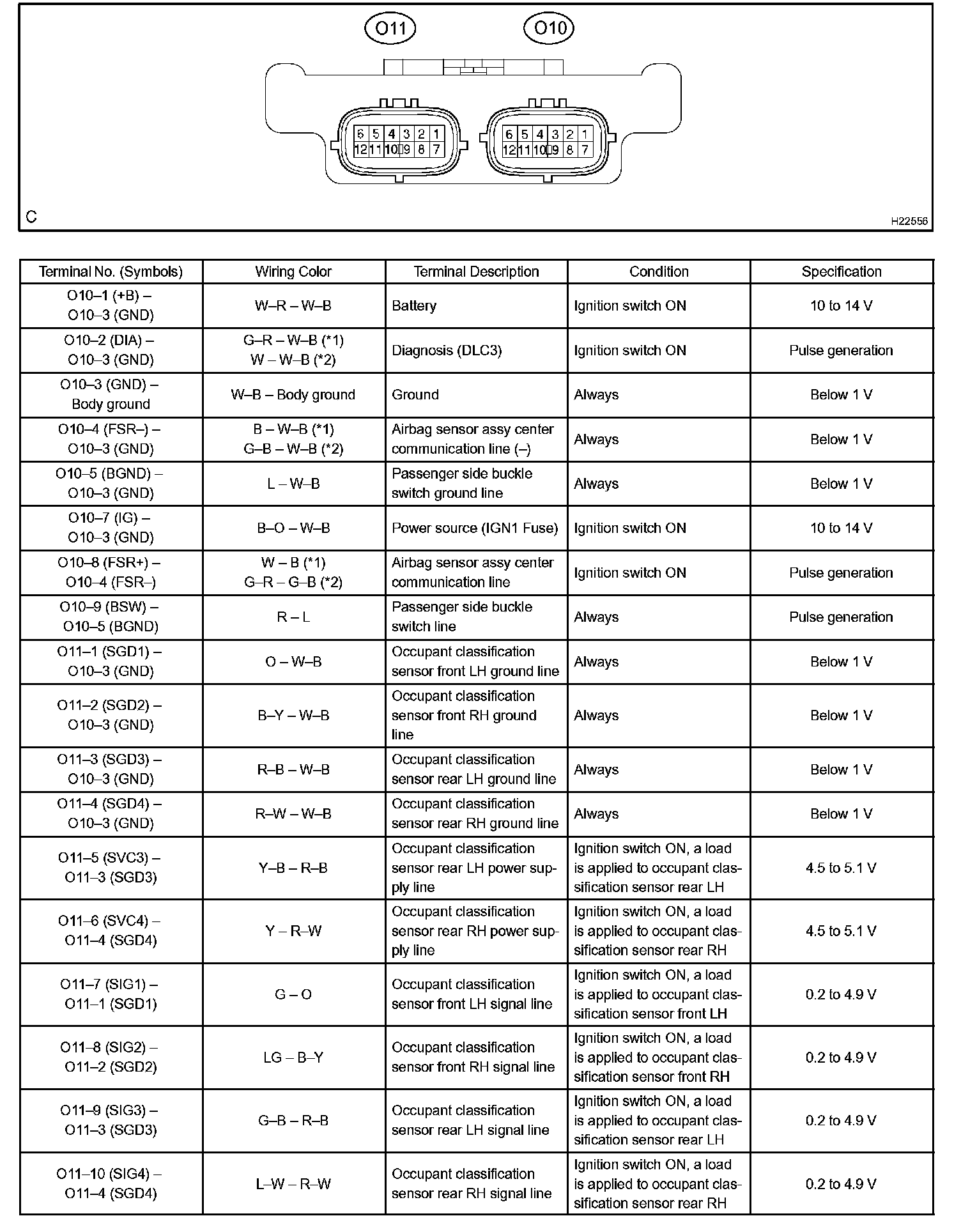

Terminals Of Control Module / Pinouts - Occupant Classification ECU Part 1:

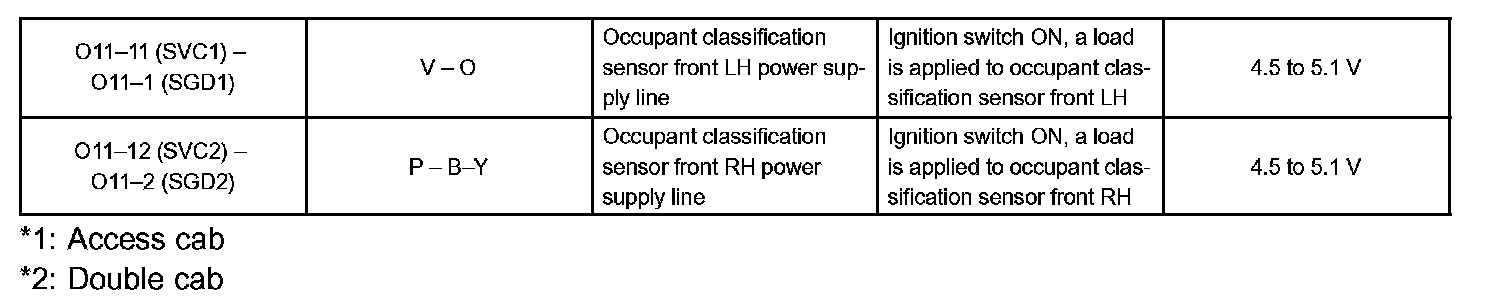

Terminals Of Control Module / Pinouts - Occupant Classification ECU Part 2:

3. w/ Occupant classification system
