Home >> Toyota Truck >> 2005 >> Tundra 4WD V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Testing and Inspection >> ABS With EBD & BA & TRAC & VSC System

ABS With EBD & BA & TRAC & VSC System

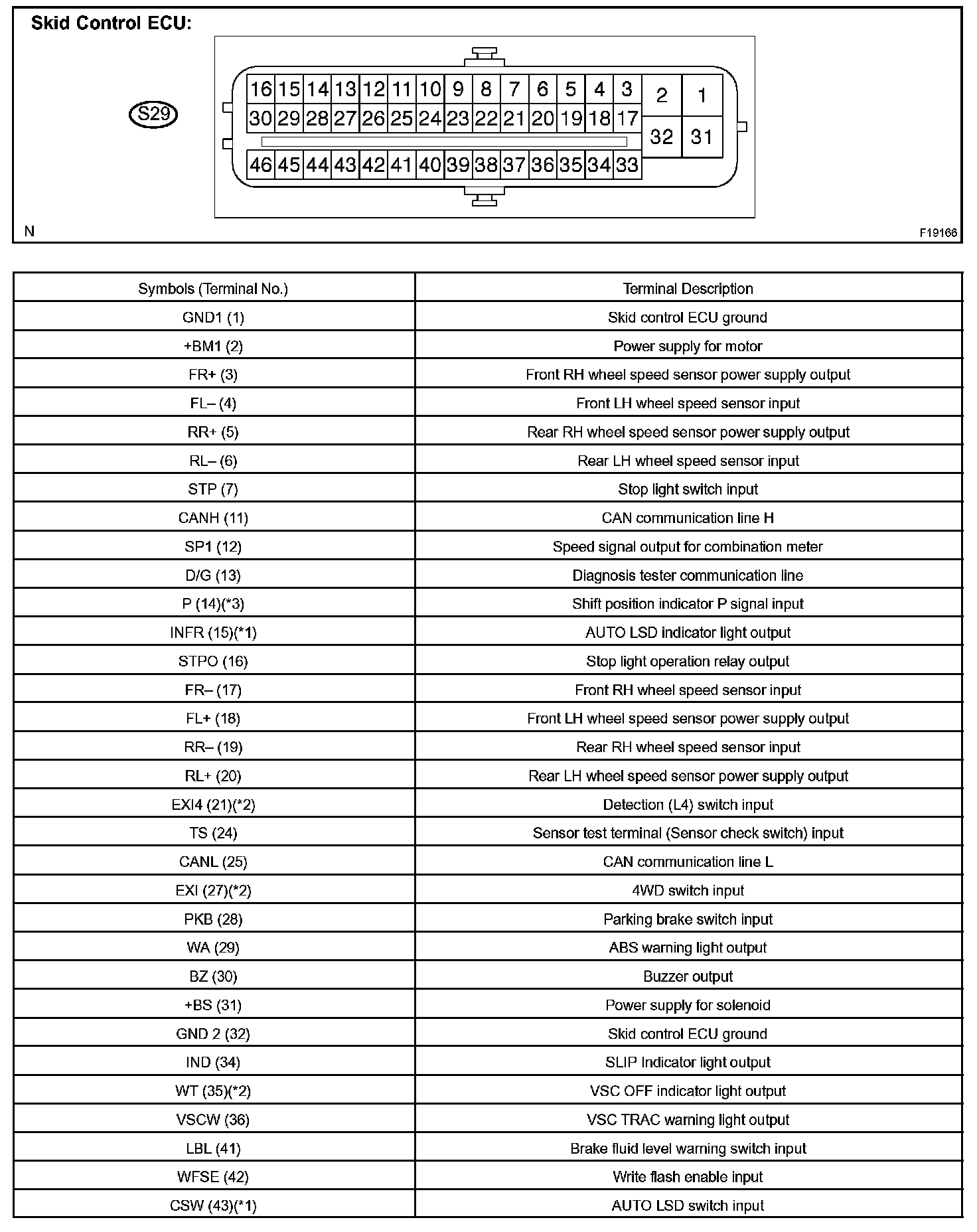

Terminals Of Control Module / Pinouts Part 1:

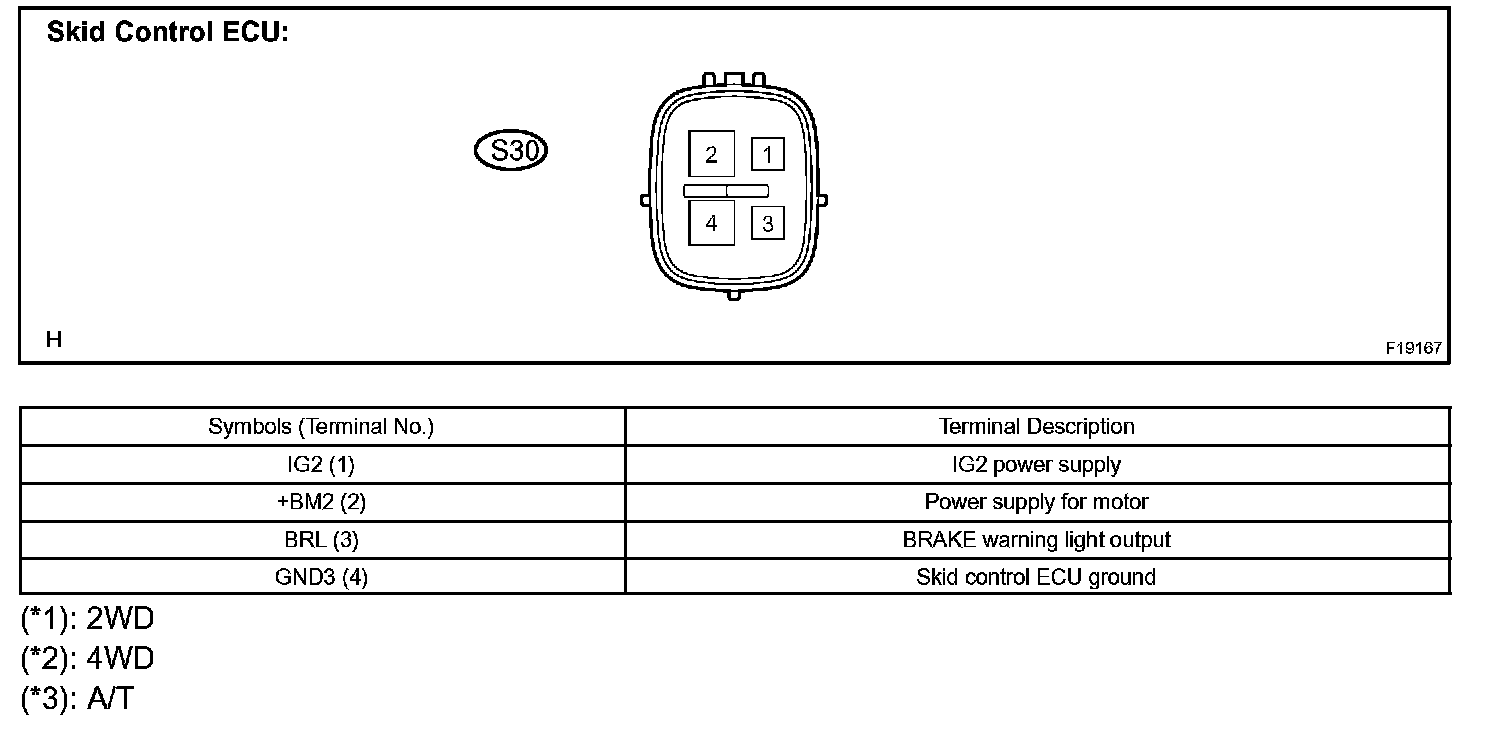

Terminals Of Control Module / Pinouts Part 2:

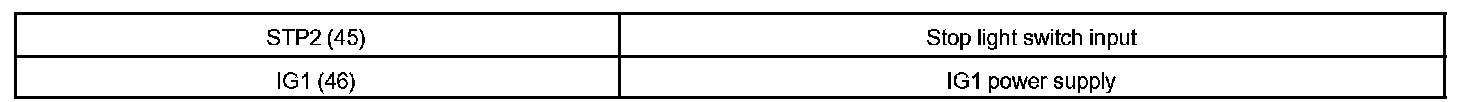

Terminals Of Control Module / Pinouts:

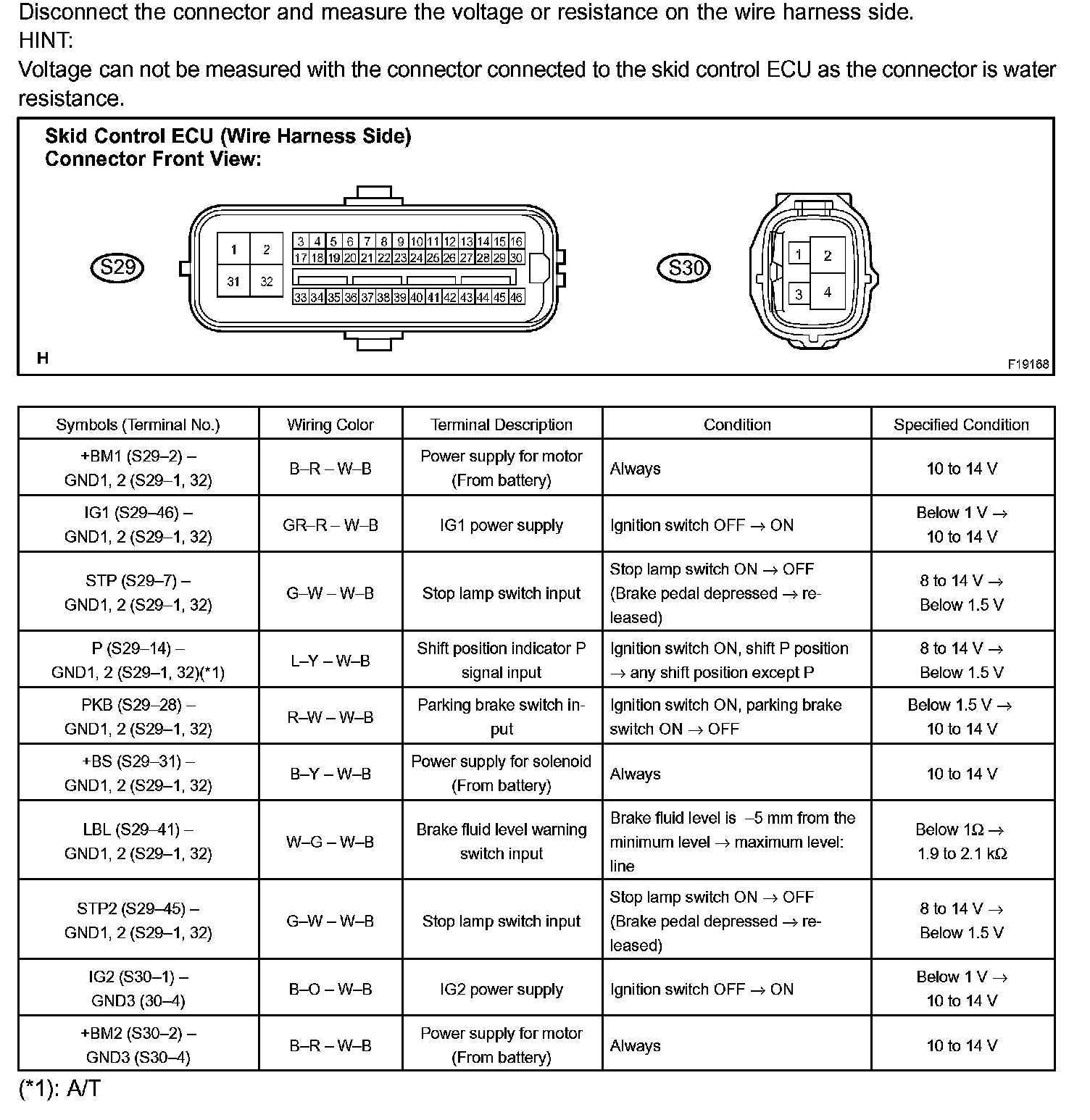

Terminals Of Control Module / Pinouts - Terminal Inspection:
