Home
>>
Toyota Truck
>>
2005
>>
Tundra 4WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Air Injection
>>
Air Injection Control Valve
>>
Locations

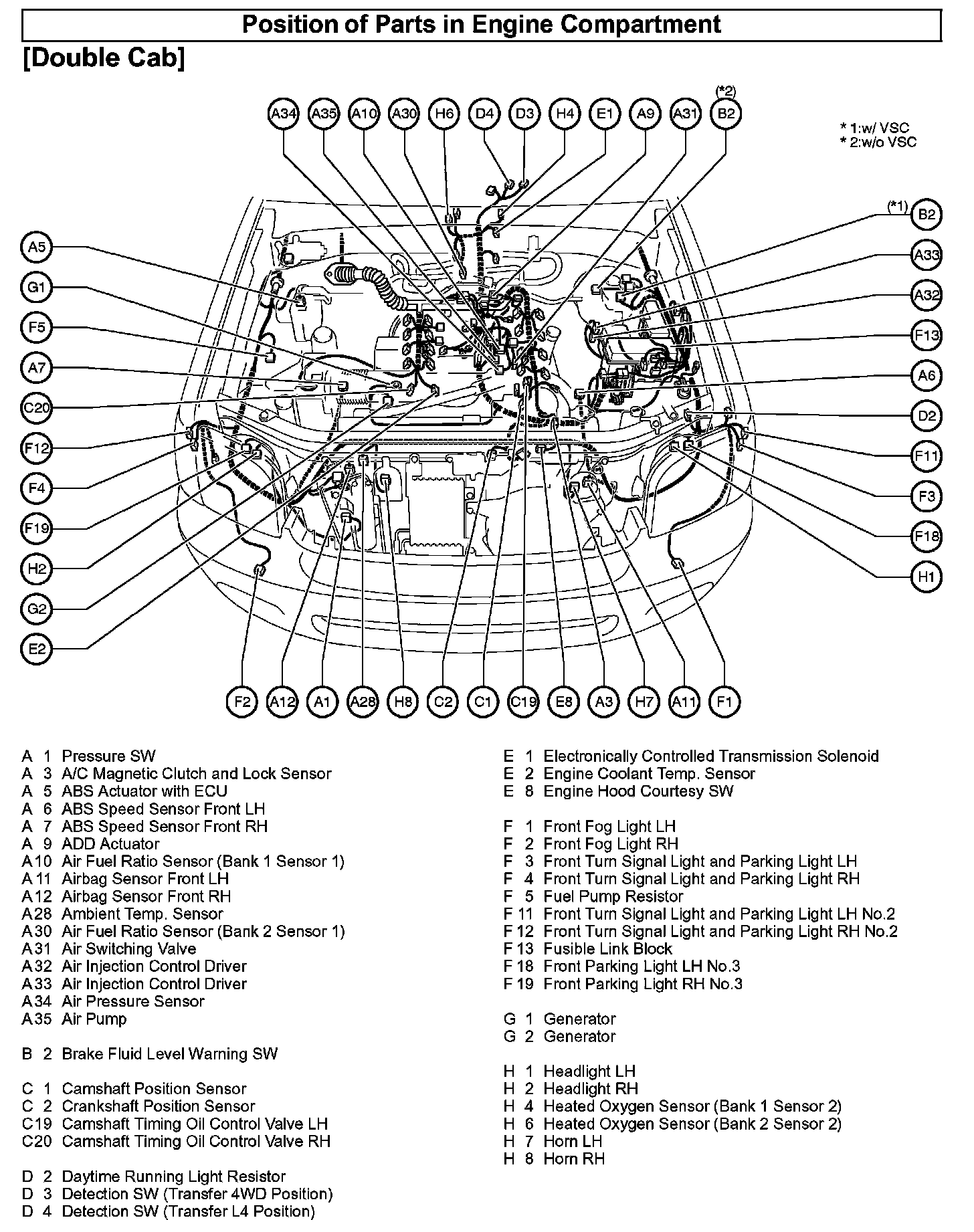

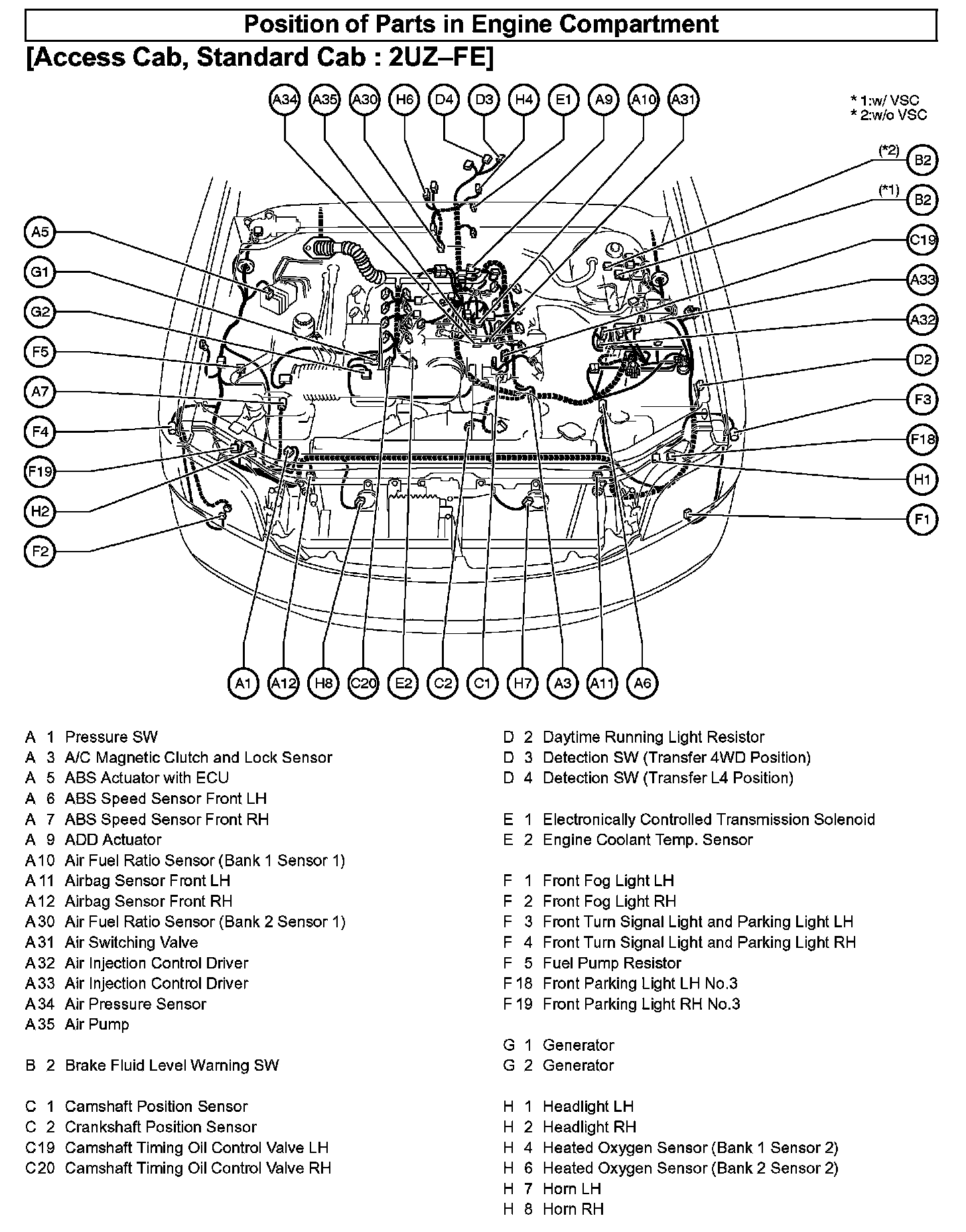

Air Injection Control Valve: Locations
A/C - Ho:
A/C - Ho:

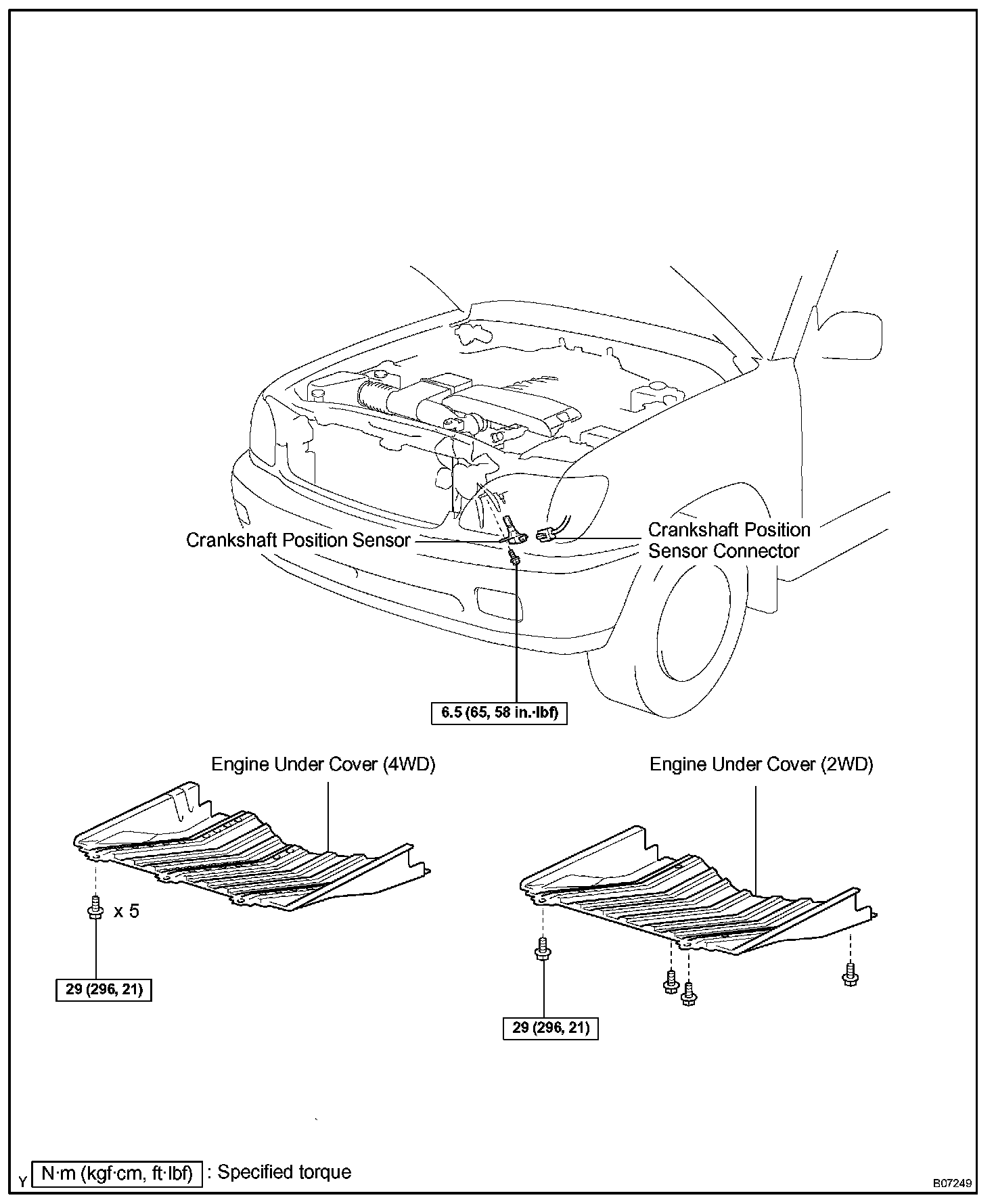

Crankshaft Position Sensor:
Engine:
