Fail-Safe Chart

FAIL-SAFE CHART

FAIL-SAFE FUNCTION

Fail-Safe Chart:

If communication fails in any of the CAN bus lines (communication lines) due to a short circuit or any other causes, then the VSC warning light will come on and VSC will be canceled.

HINT:

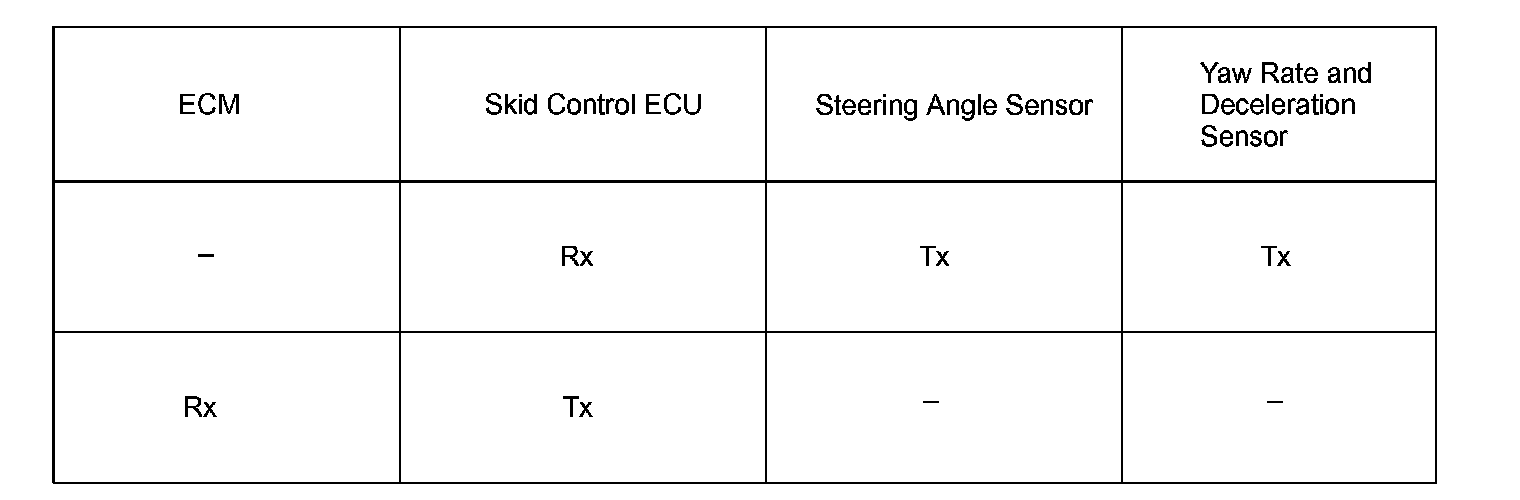

- Rx: Reception from each ECU (sensor).
- Tx: Transmission to each ECU (sensor).
