Yaw Rate and Deceleration Sensor Communication Stop Mode

YAW RATE AND DECELERATION SENSOR COMMUNICATION STOP MODE

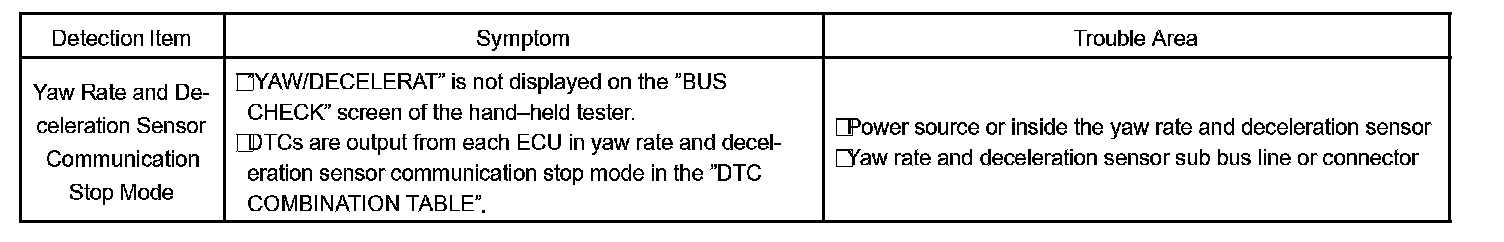

Detection Item:




MODE DESCRIPTION

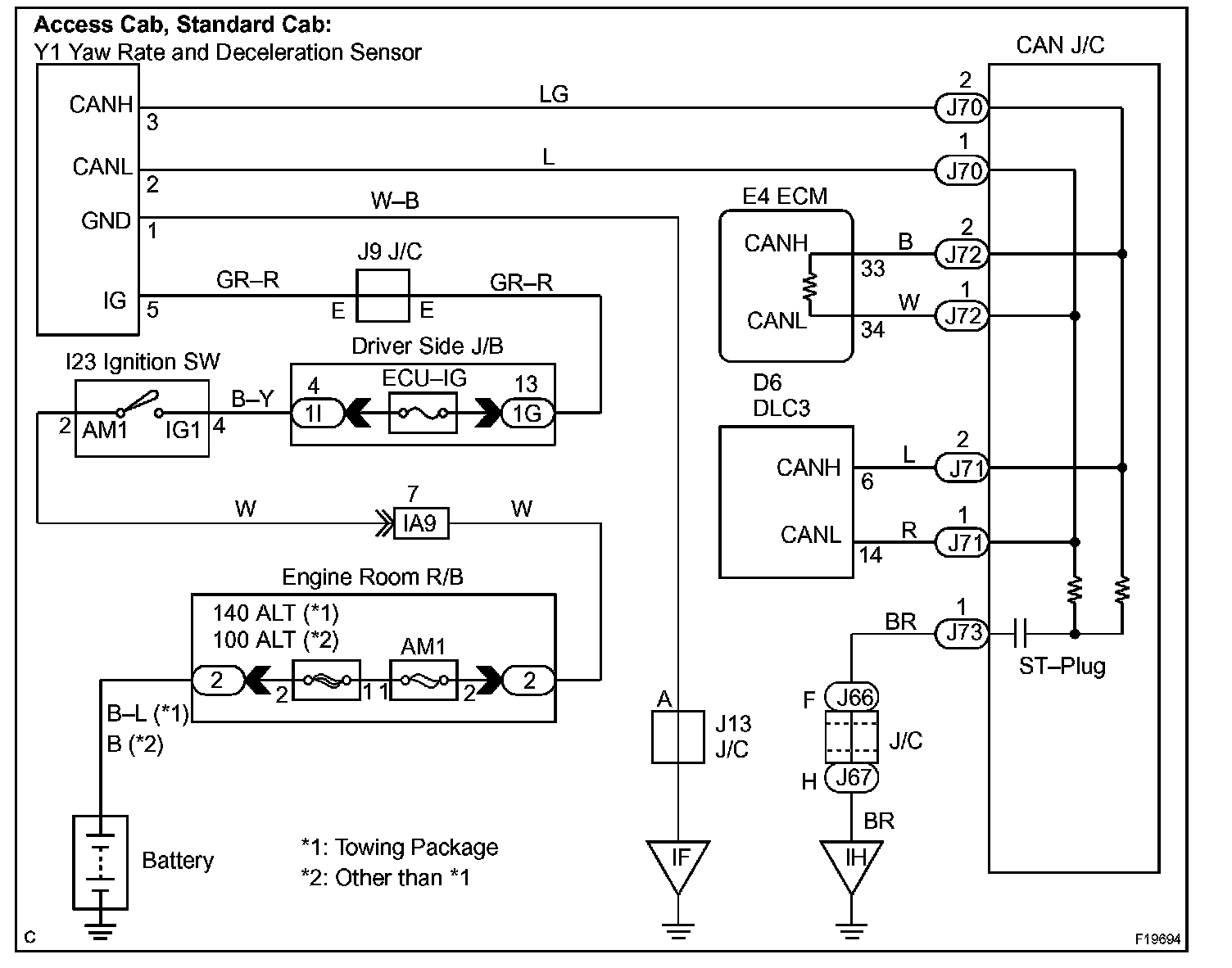

Wiring Diagram:




Wiring Diagram:

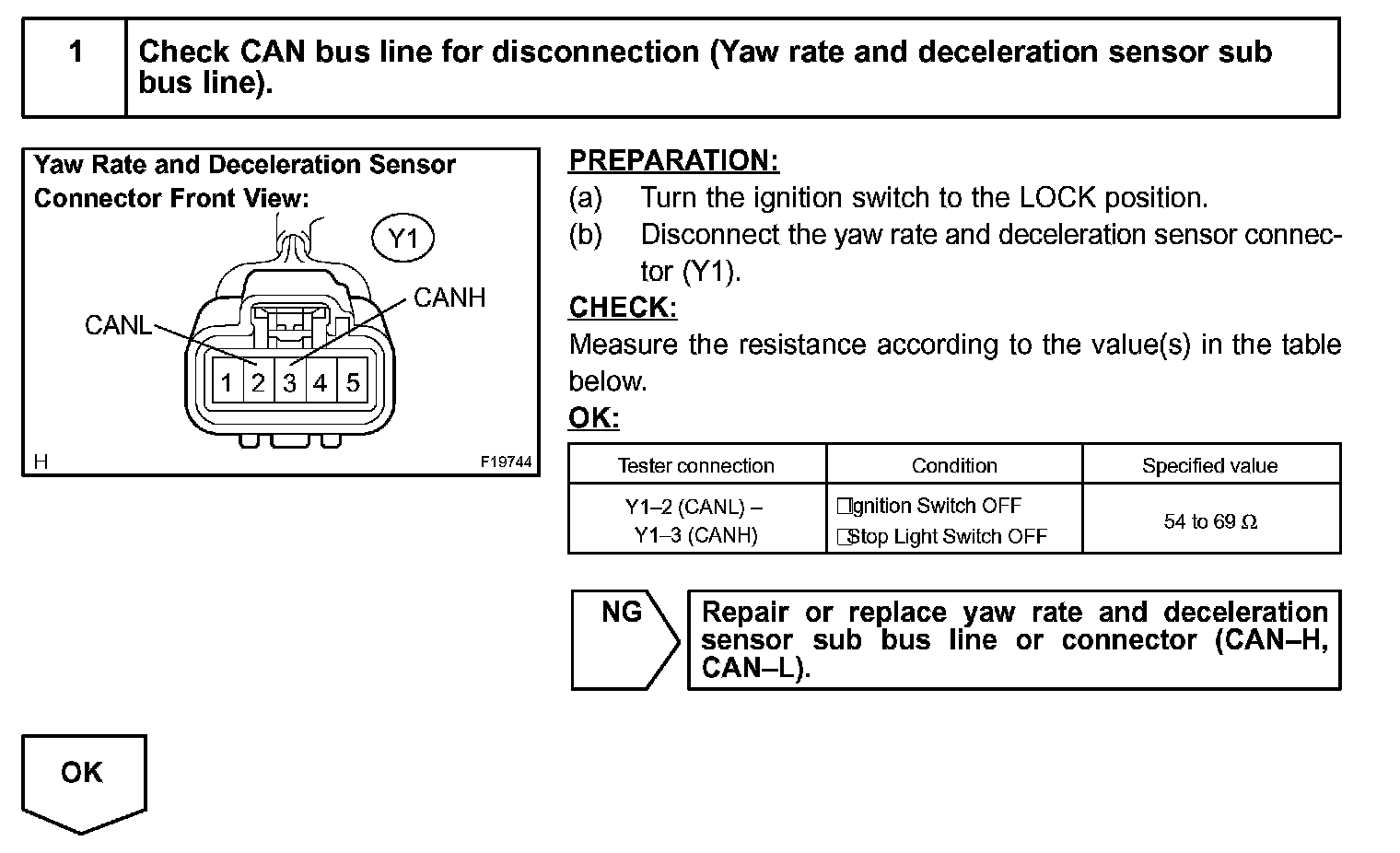

Step 1:

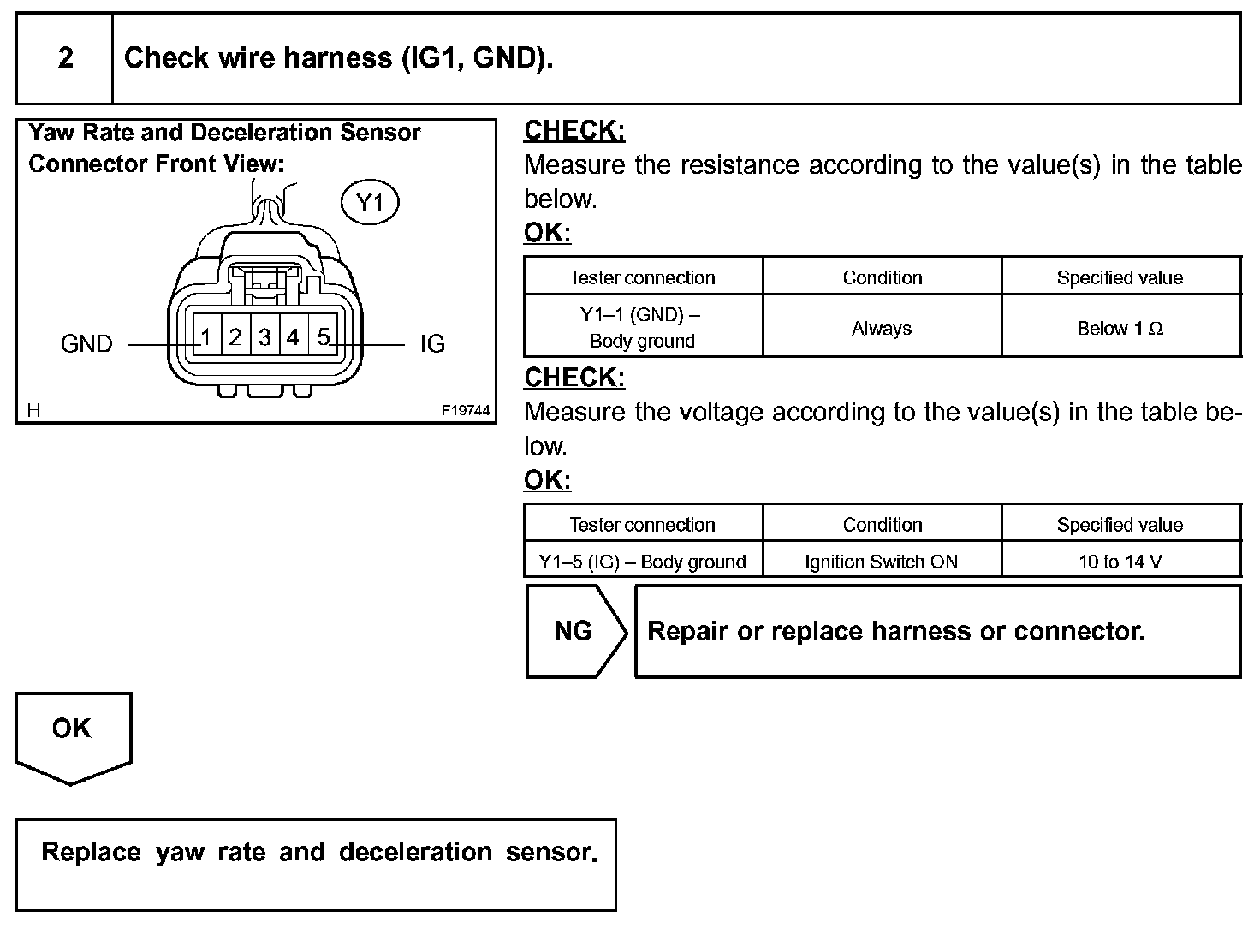

Step 2:




INSPECTION PROCEDURE
