Check CAN Main Bus Line For Disconnection (Double Cab)

CHECK CAN MAIN BUS LINE FOR DISCONNECTION (DOUBLE CAB)

CIRCUIT DESCRIPTION

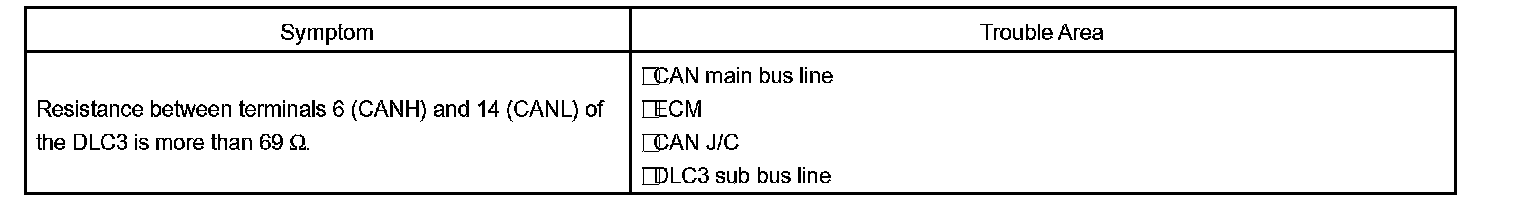

The CAN main bus line and DLC3 sub bus line may have a disconnection when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is more than 69 Ohm.

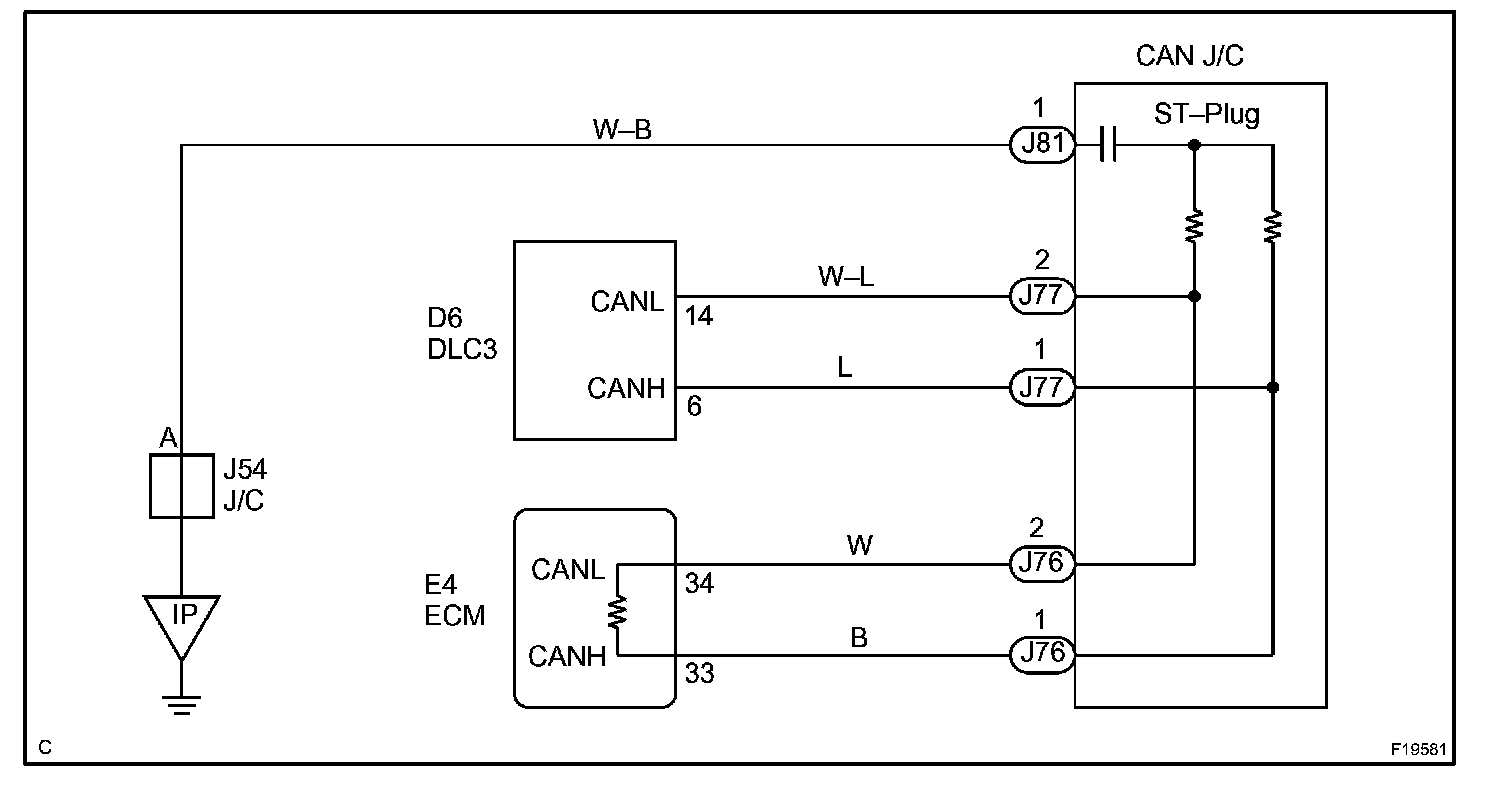

Wiring Diagram:

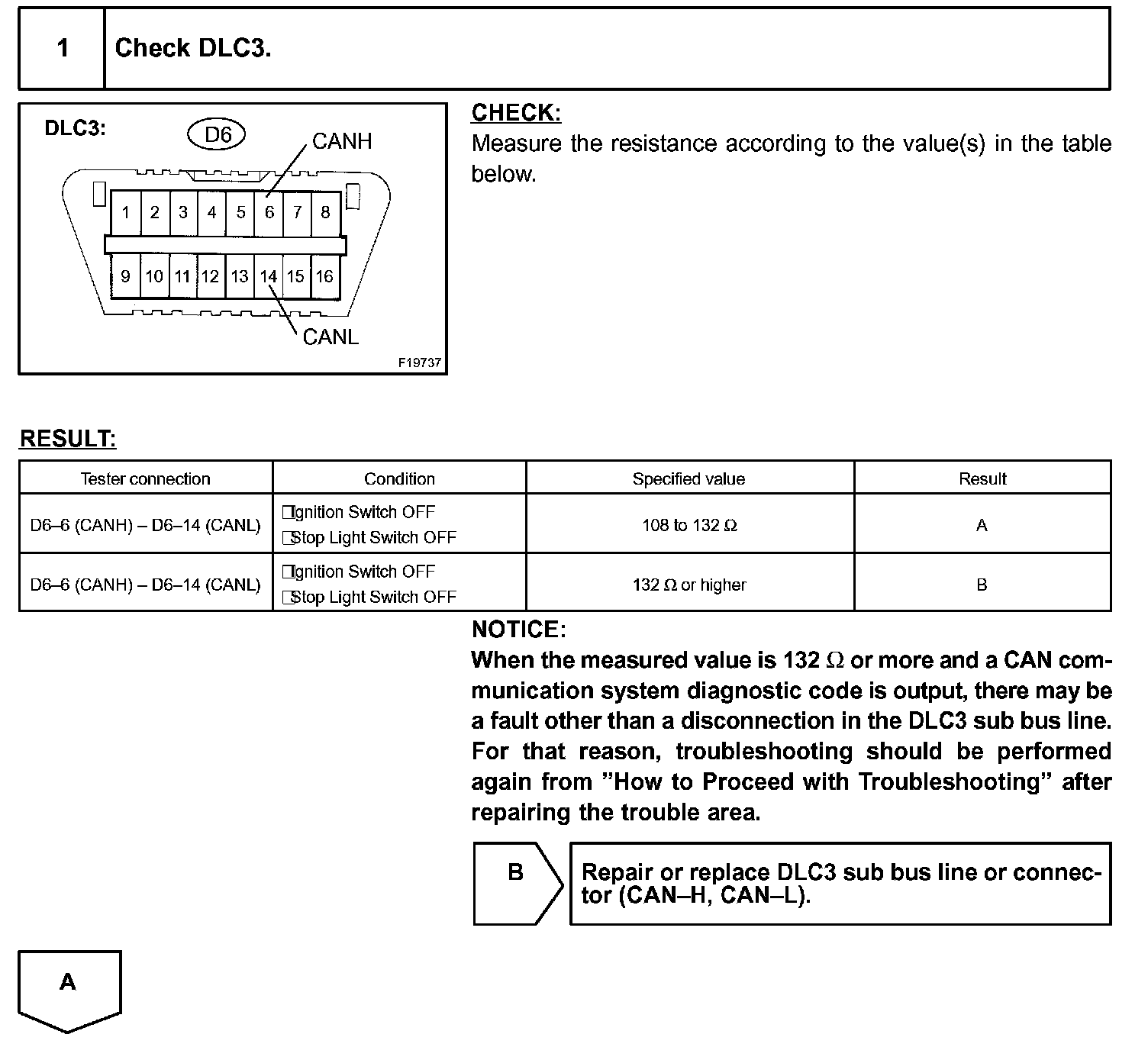

Step 1:

Step 2:

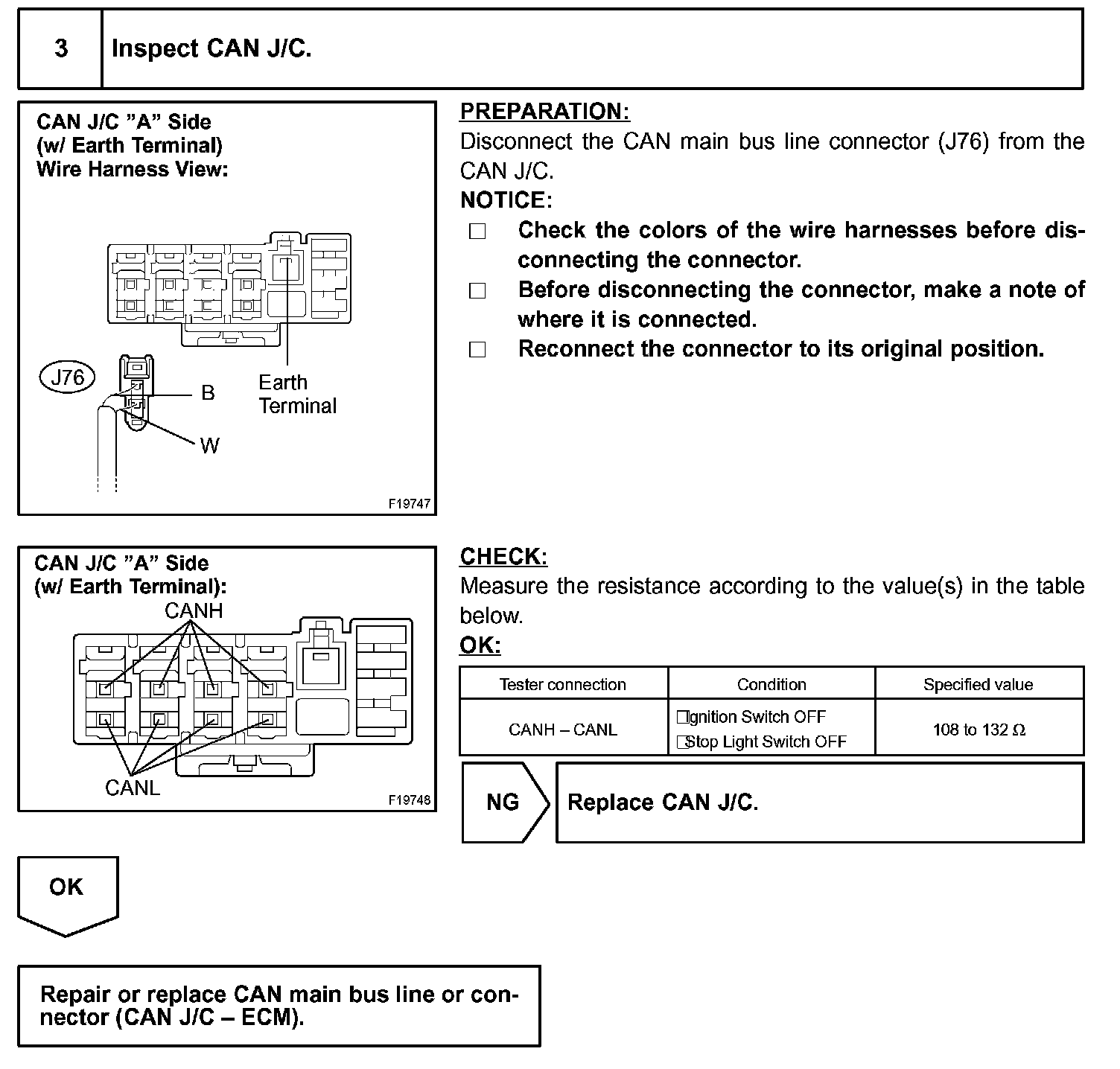

Step 3:

INSPECTION PROCEDURE
